Description

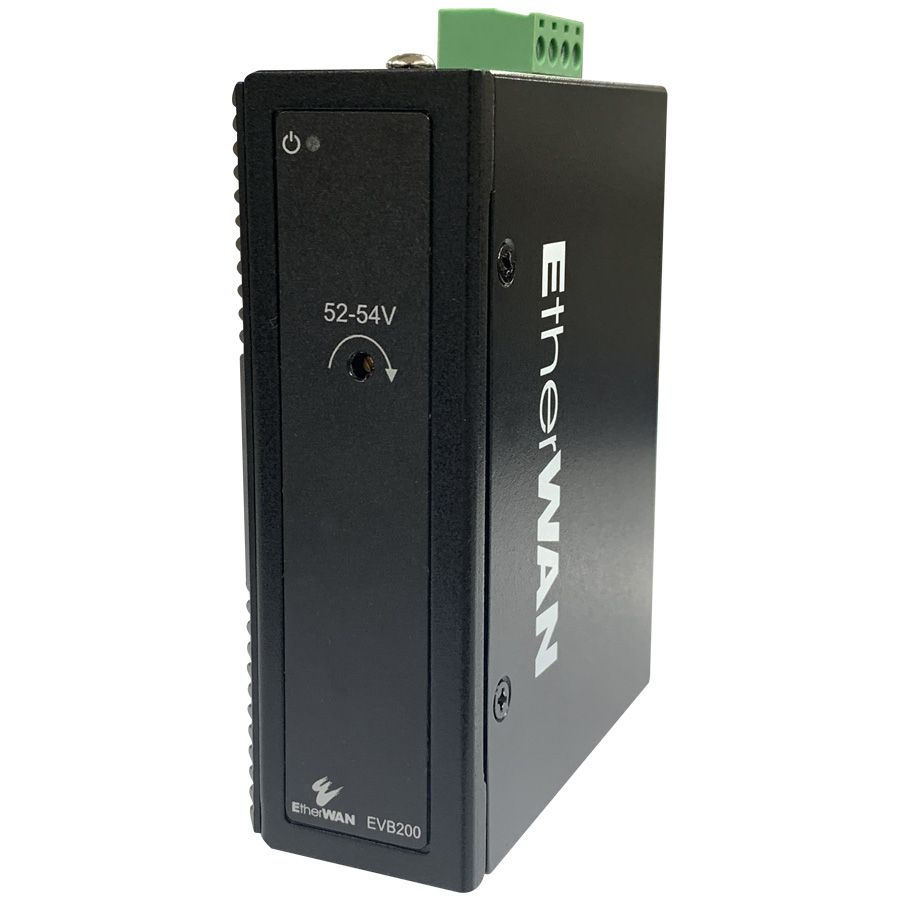

Our robust voltage booster is designed to elevate input voltage and deliver a consistent power level ideal for Power over Ethernet (PoE) devices. It operates efficiently with an input range of 12-48VDC, providing up to 200W at 52-54VDC and an input range of 12-48VDC. The output voltage can be easily fine-tuned using the built-in voltage knob. Engineered for dependable operation in harsh environments, this power booster is perfect for solar applications where 12V or 24V inputs are common, but PoE is required.
Highlights
- Versatile Input Range & Reliable Power Delivery: Delivers max 100W at 12V-24V DC input range
- Versatile Input Range & Reliable Power Delivery: Delivers max 200W at 24V-48V DC input range
- Adjustable Voltage Output: Easily fine-tune the output voltage using the built-in voltage knob.
- Hardened-Grade for Non-Ventilated & Harsh Environments: Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Hardened-Grade for Non-Ventilated & Harsh Environments: Fanless operation
- Hardened-Grade for Non-Ventilated & Harsh Environments: High impact, thermal shock, and electrical noise resistance
Specifications
- Interface - LED Indicators: PWR (Amber) ON - Power Ready; OFF - No Power Input
- Interface - Adjustable Voltage Knob: Adjustable from 52-54VDC
- Power - Power Connector: 4 pin terminal block; 2 pins for 12-48VDC input; 2 pins for 52-54VDC output
- Power - Terminal Block: Wire range: 0.34mm² to 2.5mm²; Solid wire (AWG): 12-24/14-22; Stranded wire (AWG): 12-24/14-22; Torque: 5lbs-in/0.5Nm/0.56Nm; Wire strip length: 7-8mm
- Power - Protection: Current overload protection
- Physical - Casing Material: Rugged Metal
- Physical - IP Rating: IP30
- Physical - Dimensions: 32 x 81.5 x 103.5mm (W x D x H) 1.26" x 3.21" x 4.07"
- Physical - Weight: 0.75lbs (0.34kg)
- Physical - Installation Type: DIN-rail or wall mount
- Environmental - Operating Temp.: -40 to 167°F (-40 to 75°C)
- Environmental - Storage Temp.: -49 to 185°F (-40 to 85°C)
- Environmental - Relative Humidity: 5% to 95% (non-condensing)
- Environmental - MTBF: >626,863 hours @ 50°C
- Regulatory - ISO: Manufactured in ISO-9001 facility
- Regulatory - EMC: FCC/CE
- Regulatory - EMS: IEC 61000-4-2 ESD: Contact: 6KV, Air: 8KV; IEC 61000-4-4 EFT: Power: 2KV, Signal: 2KV; IEC 61000-4-5 Surge: Power: 4KV, Signal: 2KV
- Regulatory - Safety: LVD (EN62368-1)
- Regulatory - Vibration: EN 60068-2-6
- Regulatory - Shock: EN 60068-2-27
- Regulatory - Free Fall: EN 60068-2-32
- Warranty - Length: Limited Lifetime
- Warranty - Details: www.etherwan.com/support/warranty-policy
- What's Included - Device: Voltage Booster
- What's Included - Installation: Mounting brackets, screws, 4-pin terminal block
- What's Included - Documentation: Quick install guide
- Ordering - MPN EVB200: 1747155
