Pioneer DJ - AlphaTheta Euphonia, Professional 4-channel rotary mixer

The all-new 4-channel euphonia provides a euphoric musical experience that combines the clarity of digital and the richness of analog.

Key features

Euphoric sound with digital clarity and analog richness from Rupert Neve Designs transformer

Specifications

• Max. external dimensions (W × D × H): 429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72"
• Main unit weight: 9.5 kg / 20.94 lbs.
• Frequency response: 20 Hz － 40 kHz (LINE)
• S/N Ratio: 107 dB (USB, DIGITAL IN) 88 dB (PHONO) 105 dB (LINE) 79 dB (MIC)
• Power requirements: AC 110 V － 240 V, 50 Hz / 60 Hz
• Power consumption: 43 W
• Accessories: Power cord Warranty (for some regions) Quick start guide Precautions for use
• Compatible software: rekordbox Serato DJ Pro

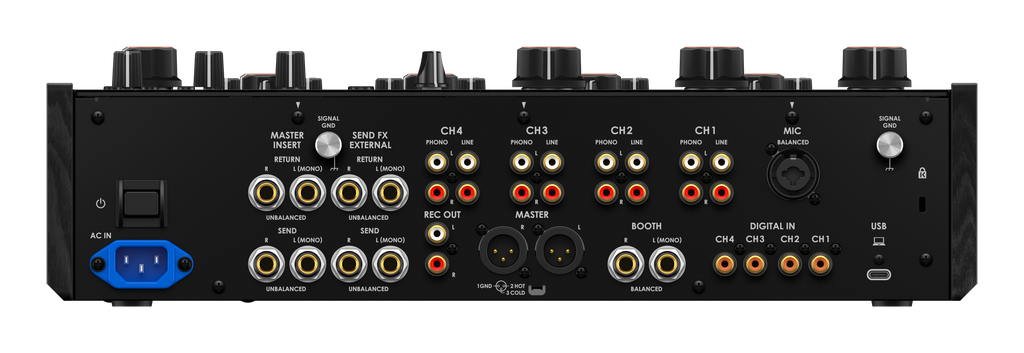

• Inputs: DIGITAL IN × 4 (coaxial) LINE × 4 (RCA) PHONO × 4 (RCA) MIC x 1 (XLR & 1/4" TRS jack)
• Outputs: MASTER × 1 (XLR) BOOTH × 1 (1/4" TRS jack) REC × 1 (RCA) PHONES × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack)
• USB: USB Type-C × 1
• Others: SEND × 2 (1/4" TS jack) RETURN × 2 (1/4" TS jack)
