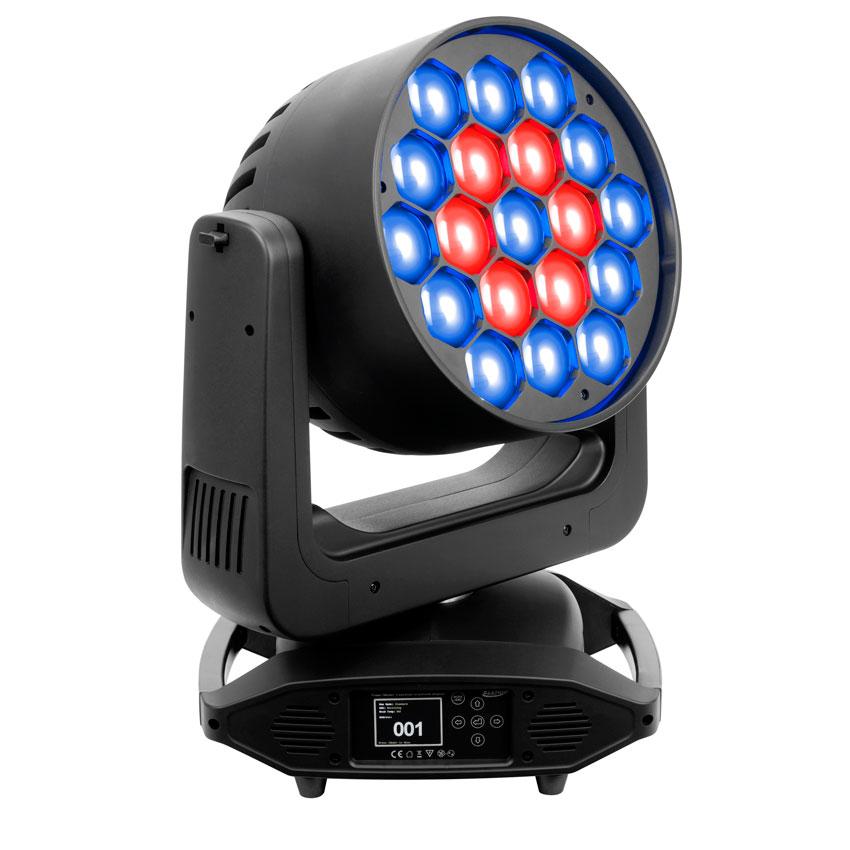

Elation Lighting Platinum Seven

Save $1,100.00
Elation LightingSKU: EPS701

Price:
Sale price$4,400.00 Regular price$5,500.00

Description



The Platinum SEVEN™ is a patent pending high power 7 color wash luminaire, featuring (19) 25W multi-chip LEDs including Red, Green, Blue, White, Amber, Cyan, and UV. Features include a fast 5° to 50° beam angle zoom range, advanced high efficiency low noise cooling and movement control systems, silent mode which reduces fan noise by over 25% decibels, (3) pixel ring control, color-pixel zone and color preset macro effects, CRI presets (85, 90, 95), linear color temperature presets (2,700 - 8,000K), linear dimming and selectable dimming curves, flicker free operation for TV and FILM, adjustable refresh rate frequency and GAMMA brightness, DMX, RDM (Remote Device Management), KlingNET™, Art-NET, and sACN support, 5pin DMX, RJ45 Ethernet, and powerCON TRUE1 in/out connections, (6) button control full color 180° reversible menu display, and a multi-voltage universal auto switching power supply (100-240v)



Features

Patent Pending High Power 7 Color Wash Luminaire
(19) 25W Multi-Chip LEDs (RGBW+Amber+Cyan+UV)
5° - 50° Beam Angle Zoom Range
Advanced Cooling and Movement Control Systems
Silent Mode - Reduces Fan Noise by 25% Decibels
(3) Pixel Ring Control and Color-Pixel Ring Macro Effects
CRI Presets (85, 90, 95)
Linear Color Temperature Presets (2,700 - 8,000K)
Linear Dimming and Selectable Dimming Curves
Flicker Free Operation for TV and FILM
Adjustable Refresh Rate Frequency and GAMMA
DMX, RDM, KlingNET™, Art-NET, and sACN Support


Specifications

SOURCE
(19) 25W Multi-Chip LEDs
50,000 Hour Average LED Life**
**May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
38,500 LUX 3,577 FC @3.3’ (1m) (5° Min Zoom) Full ON
6,670 LUX 620 FC @3.3’ (1m) (50° Max Zoom) Full ON

EFFECTS
5° - 50° Beam Angle Zoom
(3) Zone Ring Control
Color-Pixel Ring and Color Preset Macros
CRI Presets (85, 90, 95)
Linear Color Temperature Presets (2,700 - 8,000K)
Electronic Strobe (1-25 fps)
Linear Dimming 0-100% + Selectable Dimming Curves

COLOR
RGBW + AMBER + CYAN + UV (7 Colors)
Even and Smooth Color Mixing

CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 31 / 40)
Adjustable LED Refresh Frequency
Adjustable LED Gamma Brightness
Silent Mode
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
powerCON TRUE1 Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 16.5” (418.1mm)
Width: 11.2” (284.4mm)
Vertical Height: 22.0” (558.9mm)
Weight: 47.0 lbs. (21.3 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 600W
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP20


Specifications and documentation subject to change without notice.
