EtherWAN EL2242-V1B, Hardened PoE 10/100/1000BASE-T to 100/1000BASE Dual Rate SFP Media Converter

The EL2242 provides media conversion between 10/100/1000BASE-T(X) and 100/1000 BASE SFP fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be enabled or disabled. EL2242 supports IEEE 802.3at PoE/PSE standard and can transmit power and data over one STP cable. The EL2242's hardened design features high shock and vibration, electrical noise immunity and a wide operating temperature range from -40 to 75°C. EL2242 is the ideal media converter for harsh environments. EtherWAN - "When Connectivity is Crucial."

Highlights

• Power over Ethernet: Supports IEEE 802.3at PoE standard
• Wide Operating Temperature: Fanless and wide operating temperature range -40 to 75°C (-40 to 167°F)
• Dual-Rate Fiber Optic Port: SFP fiber optic port supports 100/1000BASE-X
• Support: Limited Lifetime Warranty and complimentary technical support

Specifications

• Ethernet Port: 10/100/1000BASE-TX: 1 port; 100/1000BASE-SFP: 1 port
• LED Indicators: Per Unit: Power 1, Power 2, Alarm; Per 10/100/1000BASE-TX Port: 1000, 10/100, Link/Activity; Per 100/1000BASE-FX Port: 1000, 100, Link/Activity; PoE: On/Off; LFPT: On/Off
• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3ab 1000BASE-T; IEEE 802.3at PoE; IEEE 802.3af PoE
• Forward and Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps
• Packet Buffer Memory: 256K bits
• Processing Type: Cut-through mode; Half-duplex back-pressure and IEEE 802.3x full-duplex flow control; Auto-negotiation; Auto MDI/MDIX

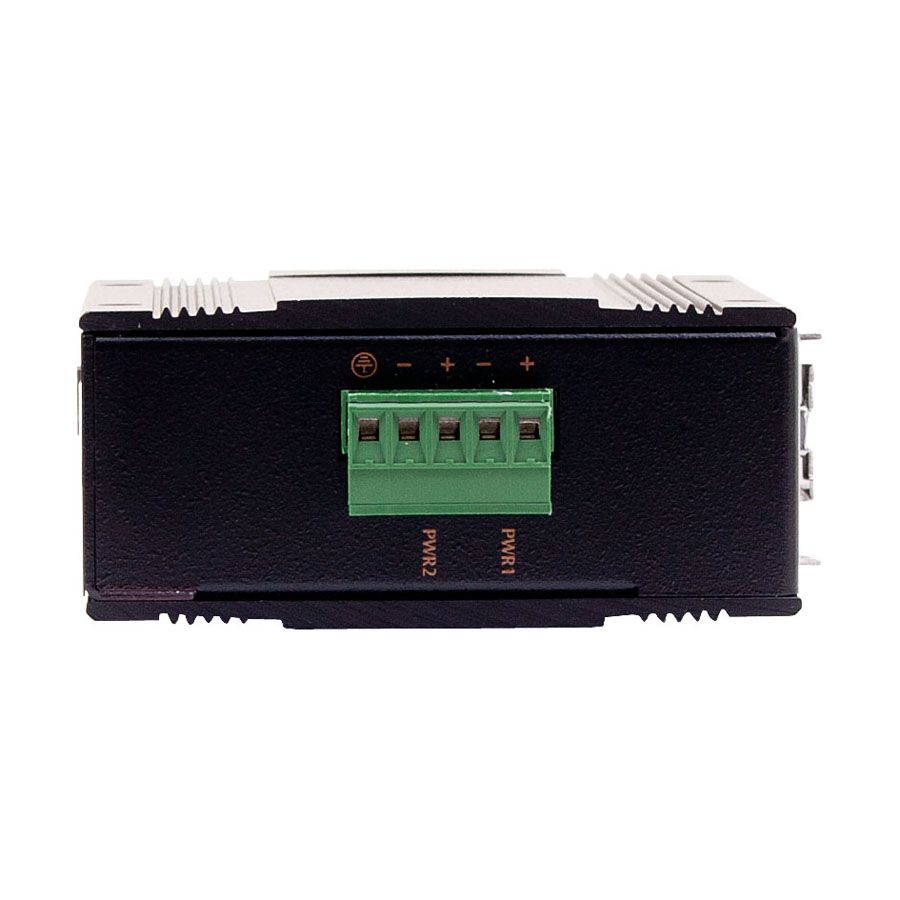

• Power Input: 48-57VDC for unit and PoE system (50-57VDC is recommend for PoE+ device)
• Power Consumption: 32.5W (30W for PoE) Max.
• Protection: Over Current Protection; Reverse Polarity Protection
• Casing Material: Aluminum
• Dimensions: 42 x 90 x 100mm (W x D x H) (1.65" x 3.54" x 3.94")
• Weight: 0.38kg (0.83lbs)
• Installation Type: DIN-rail mounting (Top hat type 35mm)
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature: -45 to 85°C (-49 to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)
• ISO: Manufactured in ISO-9001 facility
• EMI: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4; EN 61000-3-3; EN 61000-3-2
• EMS: EN 61000-6-2; EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic field)
• Safety: UL 60950-1; EN 60950-1; IEC 60950-1
• Vibration: IEC 60068-2-6 Fc
• Shock: IEC 60068-2-27 Ea
• Free Fall w/ Package: FED STD 101C Method 5007.1
• Warranty: Limited Lifetime (www.etherwan.com/support/warranty-policy)
• What's Included: Device: Media Converter; Documentation: Quick Install Guide
• Model: EL2242-X1B = 10/100/1000BASE-T to 100/1000BASE Dual Rate Hardened PoE Media Converter (DIN-Rail mounting kit included)
• 1000BASE-X Fiber Options (X): V = 100/1000BASE-X SFP
• Optional Accessories: EDR-75-48 = 75W/1.6A DIN-Rail 48VDC Industrial Power Supply
• Accessories: DIN-Rail Power Supplies
