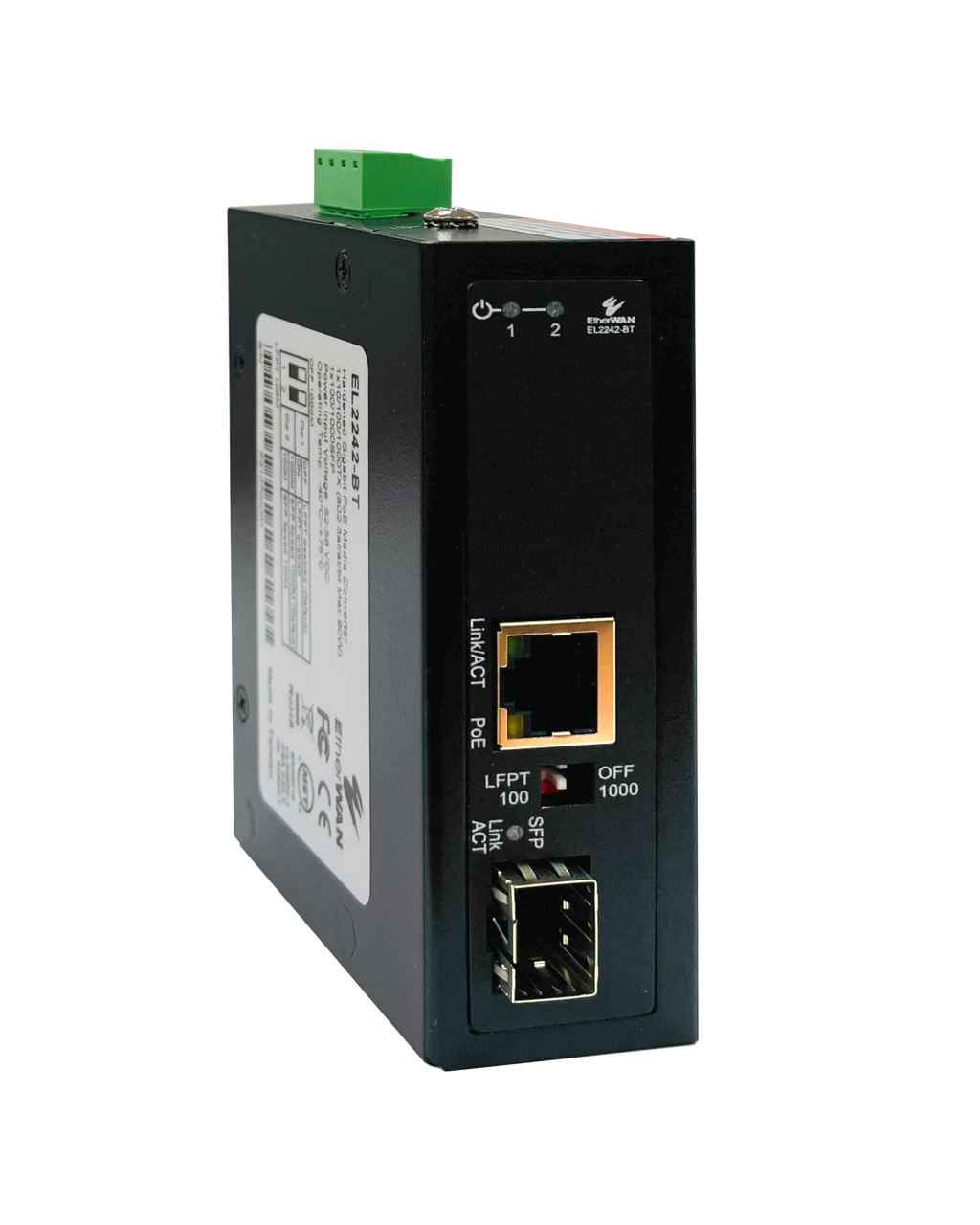

EtherWAN EL2242-BT, Hardened Gigabit 90W PoE Media Converter

EtherWAN's EL2242-BT is a compact hardened DIN-rail mounted PoE Media Converter. Using the latest IEEE 802.3bt PoE technology providing up to 90W power output and an 100/1000 SFP Slot, the EL2242-BT provides the solution required to integrate remote PoE devices such as IP cameras, LED lights, wireless access point, and other network devices into non-PoE networks for reliable operation even in harsh environments. Available in North America Only. EtherWAN - "When Connectivity is Crucial."

Highlights

• Power Over Ethernet: Supports IEEE 802.3bt PoE/PSE standard, up to 90W; Backward compatible with IEEE 802.3at and 802.3af
• Hardened-Grade for Non-Ventilated & Harsh Environments: Fanless operation with wide operating temperature range of -40°C to 75°C; High impact, thermal shock, and electrical noise resistance
• Dual Rate SFP Port: SFP port supports 100/1000BASE-X for fiber connectivity; Simple, DIP switch controlled for speed setting
• Support: Complimentary technical support; Limited lifetime warranty

Specifications

• Ethernet Port: 10/100/1000BASE-TX: 1 port; 100/1000BASE-SFP: 1 port
• LED Indicators: Power Detected: Power 1, Power 2; SFP Slot (Green): Link/ACT: On (FX port detected), Flashing (FX data transmitting/receiving); RJ-45 Port (Green): On (TX port detected), Flashing (TX data transmitting); PoE (Amber): On (TX port detected), Flashing (TX data transmitting)
• Standards: IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x Flow Control and Back Pressure; IEEE 802.3ab 1000BASE-T; IEEE 802.3at PoE; IEEE 802.3af PoE+; IEEE 802.3bt 4PPoE (60W/90W)
• Forward and Filtering Rate: 14,880pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps
• Packet Buffer Memory: 256K bits
• Jumbo Frame Size: 16 KB
• Processing Type: Cut-through mode; Half-duplex back-pressure and IEEE 802.3x full-duplex flow control; Auto-negotiation; Auto MDI/MDIX
• Power Input: 52-56VDC redundant (terminal block)
• Power Consumption: 2W @ 52VDC, without PoE
• Protection: Current Overload Protection; Reverse Polarity Protection
• Casing Material: Aluminum
• IP Rating: IP30
• Dimensions: 32 x 81.5 x 103.5mm (W x D x H) (1.26" x 3.21" x 4.07")
• Weight: 0.68kg (1.5lbs)
• Installation Type: DIN-rail mounting or wall mounting
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature: -45 to 85°C (-49 to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)
• MTBF: >500,000 hours @ 60°C
• ISO: Manufactured in ISO-9001 facility
• EMI: FCC Part 15B Class A; EN 55032; EN 55024
• EMS: EN 61000-4-2 (ESD); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge)
• Safety: UL 60950-1
• Vibration: EN 60068-2-6
• Shock: IEC 60068-2-27
• Free Fall w/ Package: EN 60068-2-32
• Warranty: Limited Lifetime (www.etherwan.com/support/warranty-policy)
• What's Included: Device: Media Converter; Documentation: Quick Install Guide; Installation: Mounting brackets, screws, 4-pin terminal block
• MPN: EL2242-BT = 1683917
• Model: EL2242-BT = 10/100/1000BASE-T PoE to 100/1000M SFP Hardened PoE Media Converter (DIN-Rail mounting kit included)
• Optional Accessories: Hardened SFP Modules; Power Supplies

• UPC: 847653005330
• Country of Origin: Taiwan
• Tariff Code: 8517.62.0050
