Description

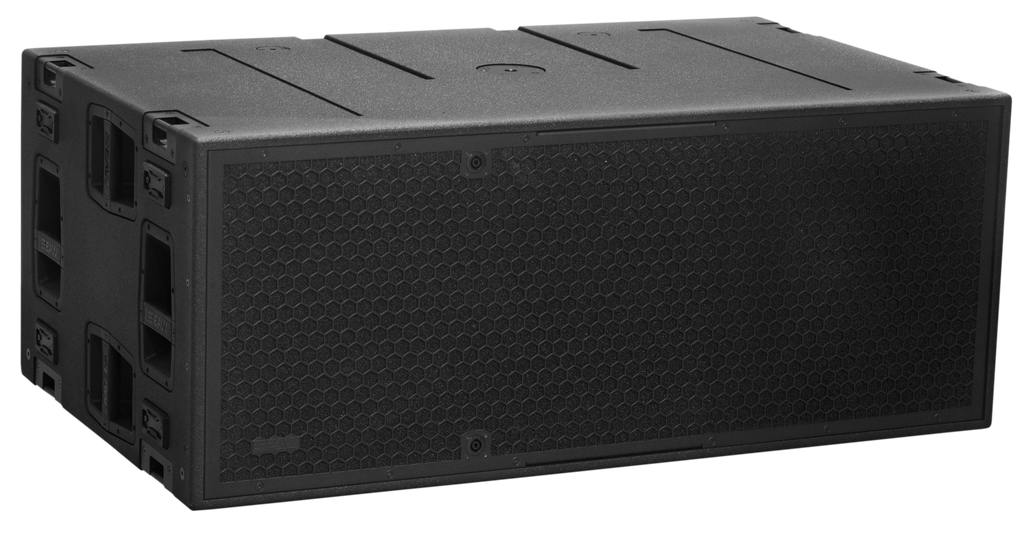

SB828 is a high performance 2×18” subwoofer designed to support KF Series Systems
The EAW engineering team has pushed the legendary SB series to new levels with the introduction of SB828.
SB828 is designed around a low turbulence port based in fluid dynamic research married with groundbreaking transducer design.
Compact height and depth allow for the subwoofers to be deployed in many room types, and configurable sound-isolating feet allow for either horizontal or vertical installation. Sixteen M10 mounting points allow for a myriad of permanent suspension options.
- Premium dual voice coil transducers with ultra linear suspension behavior for exceptional impulse response
- Innovative ultra-low turbulence port
- Can be ground stacked or permanently suspended with 16 x M10 points
- Flexible mounting, weather protection & color options
Specifications
Frequency Response: 25Hz-120Hz
Max SPL: 142dB (Half Space)
Operating Mode: Single Amp / BI-AMP VLF Pins 1+/1- VLF 1/2 (4 ohm) Pins 1+/1- VLF 1 | Pins 2+/2- VLF 2 (2x 8 ohm) Pins 2+/2- VLF 1/2 (4 ohm)
Subsystem: 2×18″ cone, 4″ VC Vented
Nominal Beamwidth: NA
Power Handling: Refer to Amplifier Configuration on Spec Sheet
Connections: 2x NL4
Dimensions: Height: 21.3in (540mm) Width: 52.7in (1340mm) Depth: 31.5in (800mm)
Weight: 209 lbs.
