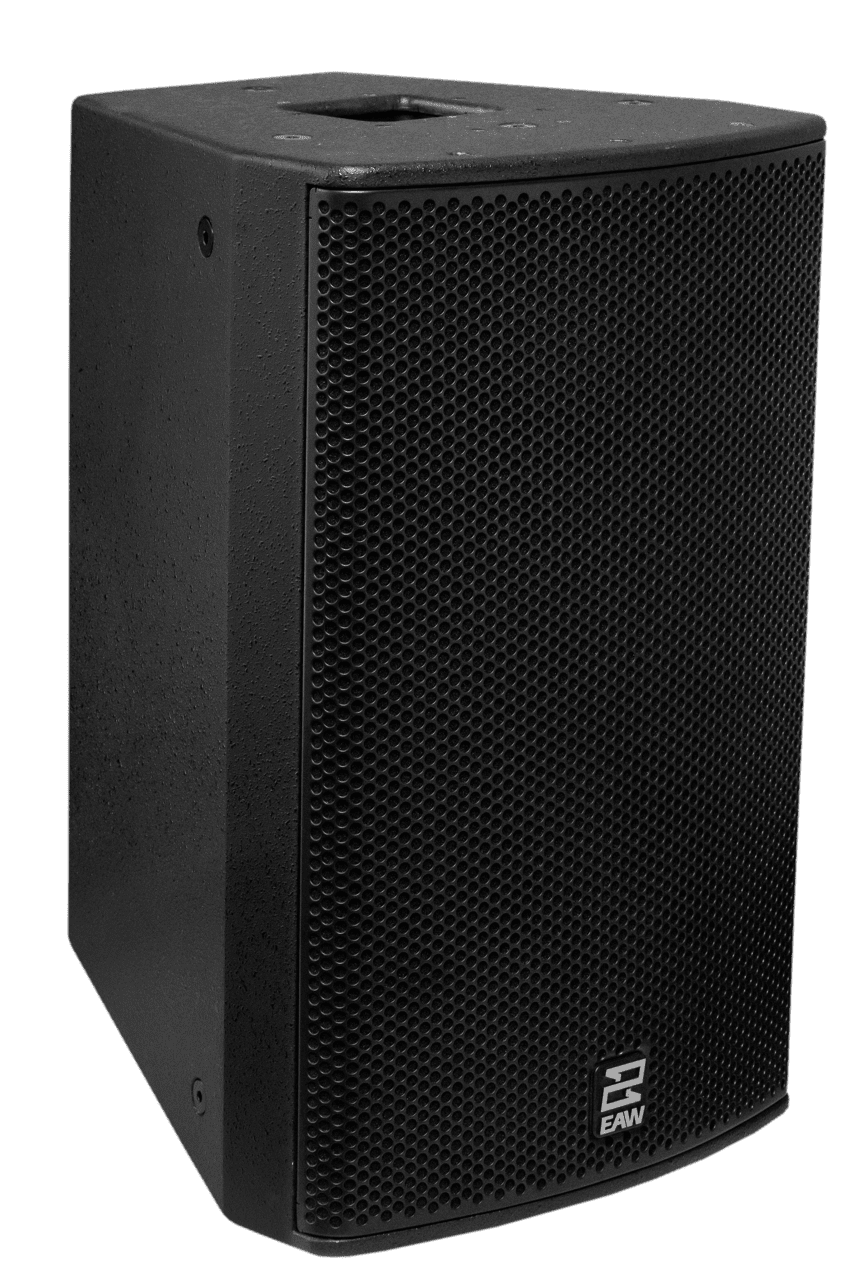

EAW MKC120MTPL-WP Black, Passive 12in 2-Way Coaxial Speaker, 1 x 12in 2.5in Voice Coil and 1 x 1in Exit 44mm HF, Horizontal 90 Vertical 60, 8 Ohm/100V, Black, Weather Protected

EAW’s MKC 2-way coaxial point source loudspeakers are flexible tools that help sound system designers provide exceptional sound in small and medium sized spaces.

Approaching installs from a new angle

With a spectrum of driver sizes, each MKC product fills a unique need for a number of use cases. Each cabinet was designed with this in mind, incorporating angles into the form factor that allows for low profile placement of the loudspeakers to a ceiling, wall, or structure.

Key Selling Points

• High output, compact coaxial loudspeaker
• Patented CSA coaxial horn provides superior control, fidelity and output
• Integrated M10 mounting, handle and pole mount
• Weather protection and transformer options
• Companion UXA4403 amplifiers
• Versatile accessories for a vast range of applications

Specifications

Frequency Response: 48Hz-20kHz

Max SPL: 135dB

Operating Mode: LF/HF, DSP w/ EAW Focusing & DynO

Subsystem: LF Transducer - 1×12″ cone, 2.5″ VC, Vented HF Transducer - 1×1-in exit, 44mm voice coil compression driver, Concentric Summation Array (CSA) loaded

Nominal Beamwidth: 90 x 60 degrees, rotatable

Power Handling: 600W @ 8ohms

Connections: 2x Neutrik NL4, 2-pin barrier strip

Dimensions: 22.4 x 14.5 x 13.4in (569 x 367 x 341mm)

Weight: 36.1 lbs (16.4kg)
