EtherWAN EASYPOE22E-M4G, NEMA-Rated Indoor/Outdoor Enclosure w/ Integrated Hardened Managed PoE Switch

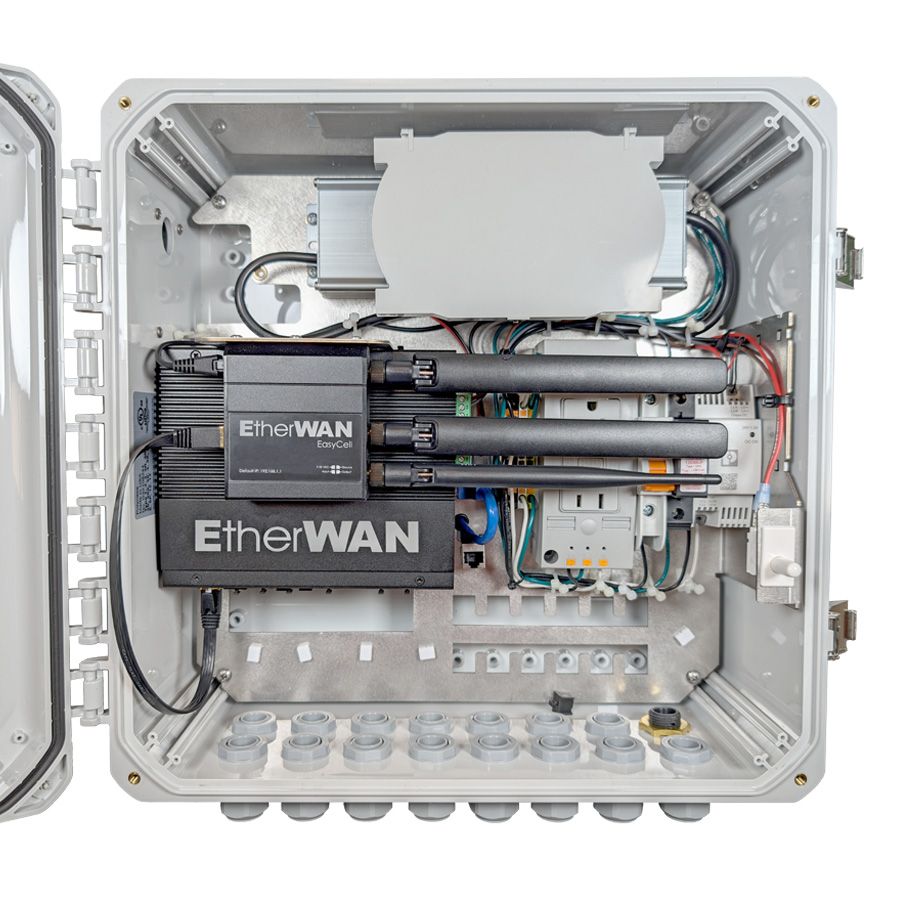

EtherWAN's EasyPoE Pro Series is an integrated outdoor enclosure solution that combines a managed PoE switch, fiber splice tray, power supply, and optional accessories such as a 4G LTE router and RJ45 patch panel, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with up to 12 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and up to 4 SFP uplink ports, the EasyPoE Pro series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications. EtherWAN - "When Connectivity is Crucial."

Highlights

• NEMA-Rated Indoor/Outdoor Design for Non-Ventilated & Harsh Environments: Wide operating temperature -40 to 75°C (-40 to 167°F); Fanless design; Weather-resistant, anti-corrosion, and vandal-resistant design
• Time/Cost Saving Features: Integrated splicing tray for safe fiber connection storage; Wall and pole mounting options; Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories
• Smart PoE and Power: Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W); PoE watchdog monitors status of connected PoE devices; Built-in power supply and surge protection
• Support: Complimentary technical support; Free firmware upgrades and notifications

Features

• Interface: CLI, Telnet, Web GUI, SSH
• Management: SFTP (Secure FTP) support; Configuration backup; DHCP Server/Client; RMON (Remote Monitoring); Port Mirroring; NTP synchronization; PoE Watchdog; LLDP; IPv4/IPv6; SNMP v1/v2c/v3; Modbus TCP
• Security: MAC Address filtering; Enable/Disable port; Storm Control and Detection; System logging; IEEE 802.1x LAN Access control; Remote authentication through RADIUS and TACACS+; Complex password support; Multi-user login and privileged access management; SSH for CLI and Telnet security; TLS and HTTPS for web security; ACL (up to 4096 entries)
• Quality of Service (QoS): 8 priority queues per port; Traffic classification based on IEEE 802.1p CoS, DSCP, WRR, and strict mode; Rate Limiting (Ingress/Egress)
• Layer 2: Auto-negotiation for port speed and duplex; Flow Control; IEEE 802.3x full duplex; Back-pressure half duplex; STP/RSTP/MSTP; EtherWAN Alpha-Ring; IEEE 802.1Q Tag VLANs, GVRP, GMRP; Static Trunk (4 groups); IEEE 802.3ad LACP; IGMP Snooping v1/v2/v3
• Layer 3: IP Packet Routing (up to 64 hardware routes); Static Routing; RIP v1/v2; OSPF v2; VRRP routing redundancy
• Performance: Switching Fabric 104Gbps; Forwarding Rate 75.29Mpps; Max VLANs 256 (4096 VID); Jumbo Frame 9KB; MAC Table 16K; Packet Buffer 12M bits

Specifications

• Interface - Ethernet: 12 x 10/100/1000BASE-T(X); 4 x 1/10G SFP+
• Interface - Console: 1 x RJ45
• Interface - Config Backup: 1 x USB (Type A Connector)
• Interface - Digital Input: 2 x Digital Input; Wet Contact 0-3V State 0, 13-30V State 1, max input current 8mA; Dry Contact Logic 1 Close to GND, Logic 0 Open
• Interface - Alarm Contact: 2 x Relay output, 0.5A/48VDC
• Interface - LED Indicators: Per Unit Power 1, Power 2; Per Port Link/Activity (Green); Per PoE Port PoE Status (Orange)
• Standards: IEEE 802.3 10BASE-T; 802.3u 100BASE-TX/FX; 802.3ab 1000BASE-T; 802.3ad LACP; 802.3z 1000BASE-SX/LX; 802.3x full duplex and flow control; 802.1D STP; 802.1p QoS; 802.1Q Tag VLANs; 802.1s MSTP; 802.1w RSTP; 802.1x PNAC; 802.1ab LLDP; 802.3az EEE; 802.3af/at/bt PoE; 1588v2 PTP
• Forward/Filtering Rate: 14,880pps (10Mbps); 148,810pps (100Mbps); 1,488,100pps (1000Mbps); 14,881,000pps (10Gbps)
• Processing Type: Store-and-forward; Auto-negotiation; Half-duplex back-pressure and full-duplex flow control; Auto MDI/MDIX
• System Memory: 2Gb DDR3 SDRAM
• Flash Storage: 1Gb
• Power - Input: 46-57VDC Redundant (Terminal block); 46-57VDC for 802.3af type 1 (<=15.4W); 52-57VDC for 802.3at/bt type 2/3 (30W, 60W); 54-57VDC for 802.3bt type 4 (90W)
• Power - Consumption: 20W Max (without PoE)
• Power - PoE Output: Ports 1-12 up to 90W/port; Power Budget 360W
• Power - Protection: Reverse Polarity Protection
• Physical - Casing Material: Aluminum
• Physical - IP Rating: IP30
• Switch Dimensions: 72 x 140 x 170mm (W x D x H); 2.8" x 5.5" x 6.7"
• Switch Weight: 1.5kg (3.3lbs)
• Installation Type: DIN-rail mounting
• Environmental - Operating Temp: -40 to 75°C (-40 to 167°F)
• Environmental - Storage Temp: -45 to 85°C (-49 to 185°F)
• Environmental - Relative Humidity: 5% to 95% (non-condensing)
• Environmental - MTBF: 1,496,987 hours
• Regulatory - ISO: Manufactured in ISO-9001 facility
• Regulatory - EMI: FCC Part 15B Class A; VCCI Class A; EN 61000-6-4; EN 61000-3-2; EN 61000-3-3
• Regulatory - EMS: EN 61000-6-2; EN 61000-4-2 (ESD); EN 61000-4-3 (Radiated RFI); EN 61000-4-4 (Burst); EN 61000-4-5 (Surge); PoE Ports line to earth 6kV Surge; EN 61000-4-6 (Induced RFI); EN 61000-4-8 (Magnetic field)
• Safety: UL 61010
• Traffic: NEMA TS2
• Rail: EN 50121-4
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Free Fall: FED STD 101C Method 5007.1
• Warranty - Length: Limited Lifetime
• What's Included: Ethernet switch; 1 Console cable; Quick install guide
• System Other Components: Fiber splice tray; Copper patch jacks (optional); Door sensor alarm; GFCI receptacle; Surge suppressor
• Stainless Steel Enclosure - Dimensions: 15.75" x 15.75" x 7.87" (WHD)
• Stainless Steel Enclosure - Weight: 45lbs when fully populated
• Stainless Steel Enclosure - Mounting: Wall/Panel (included), Pole (optional)
• Stainless Steel Enclosure - Input Voltage: 100-120VAC (Single Phase)
• Polycarbonate Enclosure - Dimensions: 15.25" x 15.25" x 7.25" (WHD)
• Polycarbonate Enclosure - Weight: 27lbs when fully populated
• Polycarbonate Enclosure - Mounting: Wall/Panel (included), Pole (optional)
• Polycarbonate Enclosure - Input Voltage: 100-120VAC (Single Phase)
• Optional LTE Cellular Router: Aluminum casing; Dual Sim; Verizon/AT&T LTE CAT6; 802.11 a/b/g/n/AC Dual Band; 4 x 10/100/1000BASE-T RJ45
• LTE Router Antenna (Stainless only): 2 x LTE, 2 x WiFi, 1 x GPS; Gain 5dBi GPS, 3dBix2 LTE, 3dBix2 WiFi; 143.6mm x 65mm; 3.3Lbs
• Ordering Model EASYPOE34X-XYY: NEMA-4X Enclosure, 12-Port 10/100/1000BASE-T PoE (90W) + 4-Port 1/10G SFP+ Managed Switch
• Ordering Model EASYPOE22E-XYY: NEMA-4X Enclosure, 8-Port 10/100/1000BASE-T PoE (60W) + 2-Port 100/1000 SFP Managed Switch
• Ordering Enclosure Material Option (X): P = Polycarbonate Enclosure; M = Stainless Steel Enclosure
• Ordering Cellular Option (YY): 4G = 4G LTE Router with WiFi, Cloud Monitoring, Auto APN, Puck Antenna (pre-installed with Metal Enclosure); NC = No Cellular Option
• Accessory EASYPOEPMT2: Pole Mounting Kit for EasyPoE Pro Polycarbonate Series
• Accessory EASYPOEPMT3: Pole Mounting Kit for EasyPoE Pro Metal Series
• Accessory EASYPOEPATCH: Patch Panel Kit with RJ45 to RJ45 Keystone Jacks, RJ45 to Wire Keystone Jacks, and Ethernet Patch Cables
