EtherWAN EASYCELL-ANT-WFC, Hardened 4G LTE CAT4 Router w/HexaCloud Device Monitoring & WAN Failover

The EasyCell is a cloud-equipped, high-performance, hardened and ruggedized 4G LTE cellular router capable of uninterrupted connections. Equipped with 4G LTE Cat 4 technology, it delivers download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps. Devices connected to EasyCell can be remotely monitored via the responsive and user-friendly HexaCloud portal. With WAN Failover, the device automatically switches to available backup connections in the event that a carrier's network goes down, making it ideal for CCTV, ANPR, and other data-intensive operations. EasyCell's Auto APN allows the device to analyze the SIM card and automatically select the correct APN, and the device is also capable of acting as a wireless access point with hotspot functionality. With an operating temperature range of -40 to 75 degrees C (-40 to 167 degrees F), this router is built to withstand extreme conditions. Only available in North America.

Highlights

• Only Available in North America
• HexaCloud Enabled for Comprehensive Device Monitoring
• Up to 150Mbps Download & 50 Mbps Upload Speeds
• WAN Failover: Automatically switches to backup connections
• Auto APN
• Hotspot Functionality Available
• Designed for Harsh Environments (-40-167F)

Features

• Fast & Reliable Speeds: 4G LTE Cat 4 connectivity up to 150 Mbps download and 50 Mbps upload speeds
• HexaCloud Cloud Device Monitoring: Remotely monitor devices connected to EasyCell with ease via responsive and user-friendly HexaCloud portal
• Uninterrupted Connections with WAN Failover: Integrated with WAN Failover which automatically switches to available backup connection. Ideal for CCTV, ANPR, and more where near-permanent connection and high data rate are necessary
• Enabled with Auto APN: EasyCell's Auto APN allows the device to analyze the SIM card and automatically select the correct APN
• Hotspot Functionality: Provides a direct connection between the mobile ISP and LAN devices. Acts as a wireless access point with hotspot functionality

Specifications

• Mobile Module: 4G (LTE) - Cat. 4 up to 150 Mbps DL / 50 Mbps UL
• Mobile Supported Bands: 4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B71; 3G: B2, B4, B5
• Mobile 3GPP Release: Release 11
• Mobile Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, bytes sent/received, connected band, IMSI, ICCID
• Mobile SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to e-MAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Mobile USSD: Supports sending and reading Unstructured Supplementary Service Data messages
• Mobile Black/White list: Operator black/whitelist
• Mobile Multiple PDN: Possibility to use different PDNs for multiple network access and services
• Mobile Band management: Band lock, used band status display
• Mobile APN: Auto APN
• Mobile Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• Mobile Passthrough: Router assigns its mobile WAN IP address to another device on LAN
• Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Wireless Wi-Fi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
• Wireless SSID/ESSID: SSID stealth mode and access control based on MAC address
• Wireless Wi-Fi users: Up to 50 simultaneous connections
• Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
• Wireless Features: Fast roaming (802.11r), Relayed Wireless
• Wireless MAC filter: Whitelist, blacklist
• Ethernet WAN: 1 x WAN port, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• Ethernet LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• Network Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• Network VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Network Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Network Firewall: Port forward, traffic rules, custom rules
• Network DHCP: Static and dynamic IP allocation, DHCP Relay
• Network QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol, or port, WMM, 802.11e
• Network DDNS: Supported >25 service providers, others can be configured manually
• Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic failover
• Network Load balancing: Balance Internet traffic over multiple WAN connections
• Network SSHFS: Possibility to mount remote file system via SSH protocol
• Security Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
• Security Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Security Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• Security VLAN: Port and tag-based VLAN separation
• Security Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
• Security WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Security Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
• VPN OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
• VPN OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• VPN IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• MODBUS TCP Slave ID range: Respond to one ID in range [1;255] or any
• MODBUS TCP Slave Allow Remote Access: Allow access through WAN
• MODBUS TCP Slave Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
• MODBUS TCP Master Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
• MODBUS TCP Master Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
• Data to Server Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis
• MQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker
• DNP3 Supported modes: TCP Master, DNP3 Outstation
• Monitoring & Management WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• Monitoring & Management FOTA: Firmware update from server, automatic notification
• System Characteristics CPU: MediaTek, 580 MHz, MIPS 24KEc
• System Characteristics RAM: 128 MB, DDR2
• System Characteristics FLASH storage: 16 MB, SPI Flash
• Firmware/Configuration WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• Firmware/Configuration FOTA: Update FW
• Firmware/Configuration Remote Mgmt. Sys.: Update FW/configuration for multiple devices at once
• Firmware/Configuration Keep settings: Update FW without losing current configuration
• Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Input/Output Events: Email, Remote Management System, SMS
• Input/Output I/O juggler: Allows to set certain I/O conditions to initiate event
• Power Connector: 4-pin industrial DC power socket
• Power Input voltage range: 9~30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
• Power PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC
• Power consumption: < 6.5 W Max
• Physical Characteristics Ethernet: 2 x RJ45 ports, 10/100 Mbps
• Physical Characteristics I/O's: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Physical Characteristics Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
• Physical Characteristics SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
• Physical Characteristics Power: 1 x 4-pin power connector
• Physical Characteristics Antennas: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
• Physical Characteristics Reset: Reboot/User default reset/Factory reset button
• EASYCELL-PWR Input Connector: 4-way screw terminal
• EASYCELL-PWR Output Connector: 4-pin, 3mm pitch
• EASYCELL-PWR Cable: 4x0.129 mm2 (26 AWG), 2000 mm
• EASYCELL-PWR RoHS Compliant: V
• EASYCELL-PWR Color Coding: 1 Red Power +, 2 Black Ground -, 3 Green Input/Output/NC, 4 White Input/Output/NC
• Physical Specifications Casing material: Aluminum housing, plastic panels

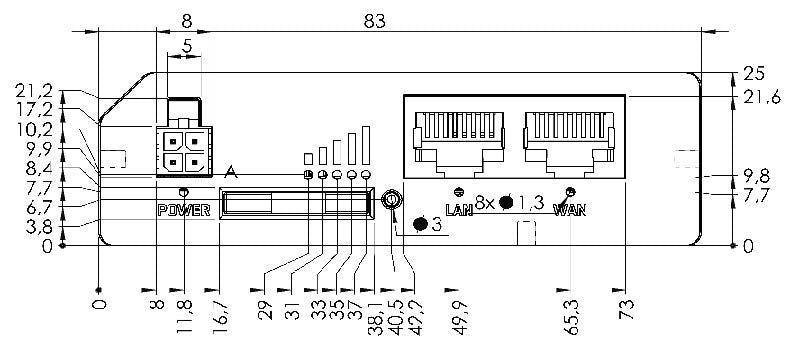

• Physical Specifications Dimensions (WxHxD): 83 x 25 x 74 mm
• Physical Specifications Weight: 125 g
• Physical Specifications Mounting options: Bottom and sideways DIN rail mounting slots
• Operating Environment Operating temperature: -40 C to 75 C
• Operating Environment Operating humidity: 10% to 90% non-condensing
• Operating Environment Ingress Protection: IP30 Rating
• Regulatory and Type Approval Regulatory: FCC, CE/RED, UKCA, CB
• Package Contents: Router, Compact Cellular Antennas, Compact Wi-Fi Antenna, Power Cable (4-Pin Terminal), SIM Needle Kit, Compact DIN Rail Kit, Quick Start Guide (QSG)
• RF Standards: EN 300 328
• Safety Standards: EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018
• Dimensions (W x H x D) / Weight: 83 x 25 x 74 mm / 125 g
• Ordering Model EasyCell: Hardened 4G LTE Cellular Router with Wi-Fi, and Two RJ45 Ports
• Ordering Accessory EASYCELL-ACP: AC Wall Adapter (indoor / desktop use only)
• Ordering Accessory EASYCELL-ANT-LTC: Cellular (LTE) Compact Antenna for EasyCell
• Ordering Accessory EASYCELL-ANT-OUT: Outdoor LTE/Wi-Fi Antenna for EASYCELL
• Ordering Accessory EASYCELL-ANT-RFT: MOBILE MIMO External Antenna for EASYCELL
• Ordering Accessory EASYCELL-ANT-WFC: WiFi Compact Antenna 2.4GHz for EasyCell
• Ordering Accessory EASYCELL-CDN: COMPACT DIN RAIL KIT (PLASTIC) for EasyCell
• Ordering Accessory EASYCELL-CDT: EASYCELL HEXACLOUD VPN CREDIT
• Ordering Accessory EASYCELL-DIN: DIN RAIL KIT for EasyCell / EasyCell5G
• Ordering Accessory EASYCELL-PWR: POWER CABLE WITH 4-WAY SCREW TERMINAL
• Ordering Accessory POEPOWEREZ: INDUSTRIAL GIGABIT 802.3AF/AT ACTIVE TO PASSIVE PoE CONVERTER AND PASSIVE INJECTOR
• Ordering Accessory EPOW-24-60: HARDENED NEMA TS2 POWER SUPPLY 24V 60W
