Description

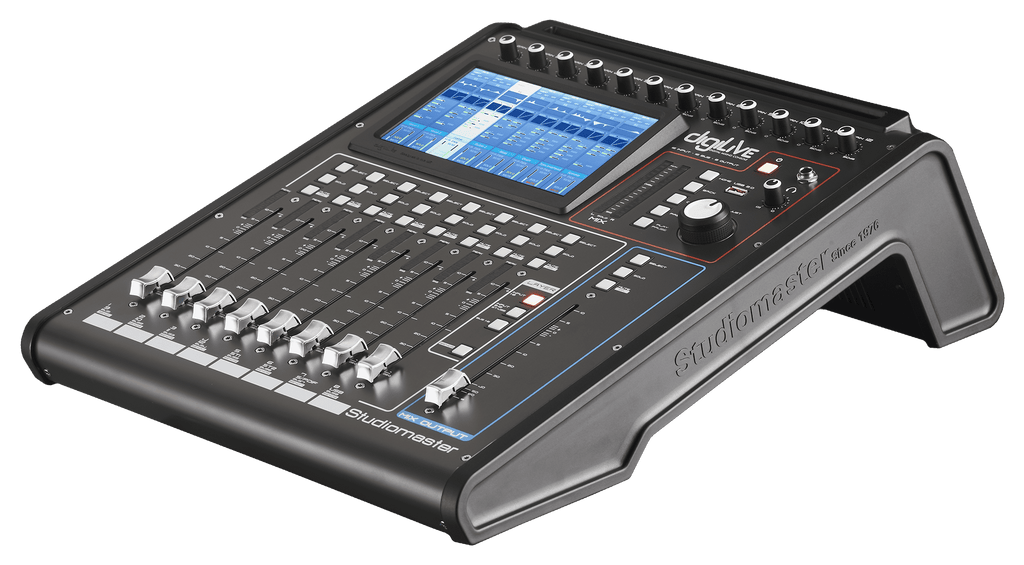

The DIGILIVE 16 offers ultra-compact digital audio mixer combines the power of a hardware mixer with the beauty and simplicity of a touch-screen control surface. The DIGILIVE 16 is designed to be quick, simple and intuitive to use. In addition to the 7-inch high-resolution touch-screen where you can access all your features, I/O options and effects, the mixer features full 100mm motorised faders that can recall scene settings at a moments notice. Full control is also available remotely via Wi-Fi using your iPad so you are free to mix anywhere in the venue.
INTELLIGENT USER INTERFACE > simple to use 1024 x 600 7″ touchsceen with clear and informative graphics > clear visual representation of all channel and mixer settings > use either touchscreen or encoder to adjust any setting > 100mm motorized faders, with one touch layer selection > solo, mute and channel select buttons for each channel
MIXING MADE EASY > input and output channel metering is clear with the high definition screen > both input and output levels clearly displayed > pre and post fader metering
RECORDING AND PLAYBACK > built in media player and recorder > playback from either USB > record from any smart output
SMART OUTPUTS > 16 internal busses with 8 balanced XLR outputs > comprehensive routing facilities to maximise mixer flexibility > simple and clear selection and routing
Key Features
- key features
- overview
- Gallery
- specification
- resources
- where to buy
Technical Specifications
| MIC Input | 12 channels 8 x XLR/4 x COMBO XLR/JACK | |
| LINE Input | 2 (Stereo) channels | |
| Two 6.5 stereo Jacks, one 3.5 stereo Jack in parallel with one stereo channel | ||
| Master Output | 2 Left/Right balanced XLR | |
| Smart Outputs | 6 assignable balanced XLR | |
| Internal busses | 16 | |
| Stereo Monitor | 1 TRS Jack output | |
| Headphone | 1 TRS Jack output | |
| Screen | 7" high definition touch screen | |
| Faders | 8 x motorized 100 mm faders + 1 x motorized 100mm fader for L/R mix | |
| Sample Frequency | 48kHz | |
| AD/DA | 192kHz, 24-bit | |
| DSP | 40-bit float point, SHARC processor | |
| iPad Remote control | Yes | |
| Effects | up to 8 assignable effect modules (reverb, modulation, delay, 31 band GEQ with RTA) | |
| Digital input/outputs | ||
| AES/EBU | Output (XLR) | |
| S/PDIF | Input / Output (RCA phono) | |
| USB Interface | 2 for playback/recording, scene storage and system updates | |
| Network | yes via WIFI external module | |
| Power | 90-240V ~ 50/60Hz power supply 24VDC output | |
| Dimension (W x H x D) | 357 x 145 x 480mm | |
| Net Weight | 5kg | |
