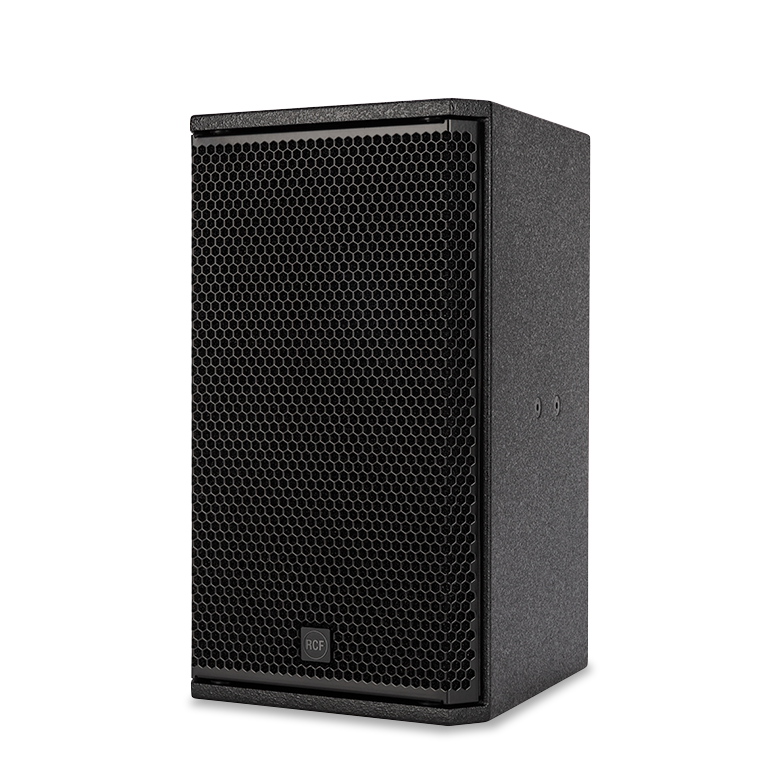

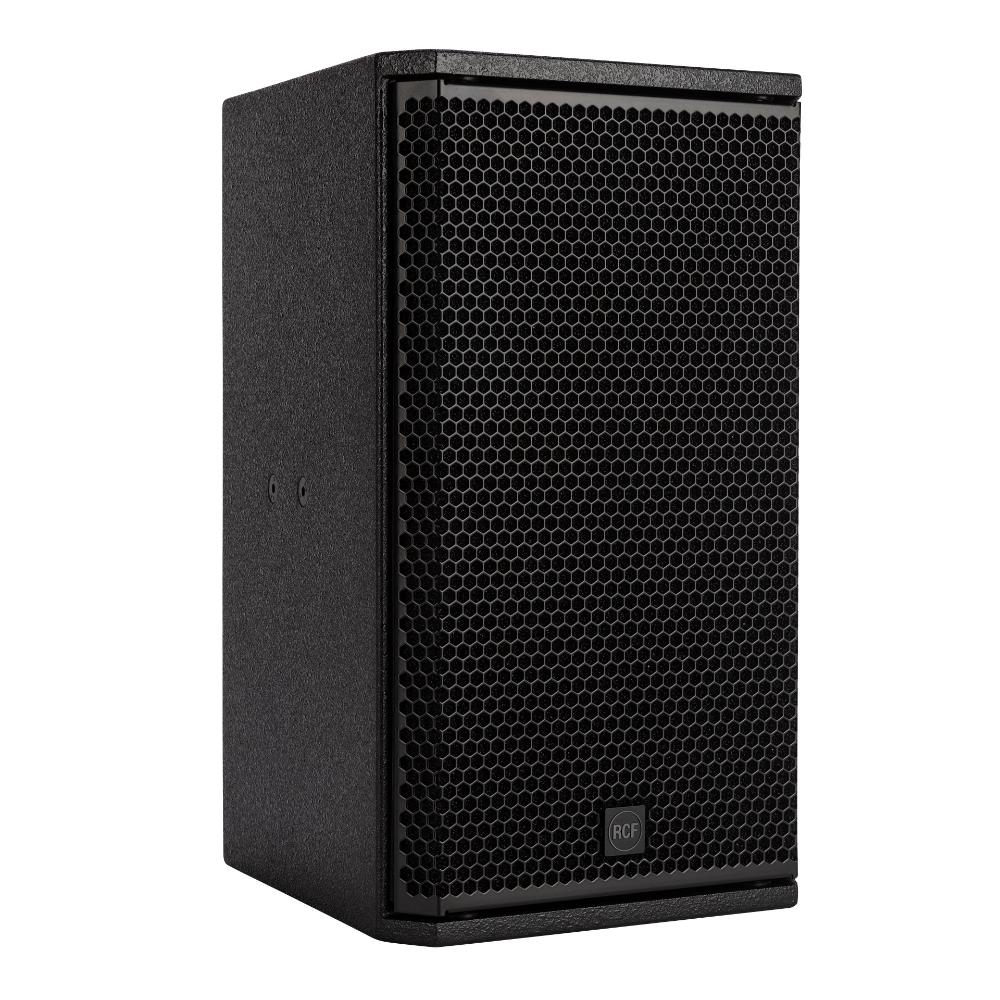

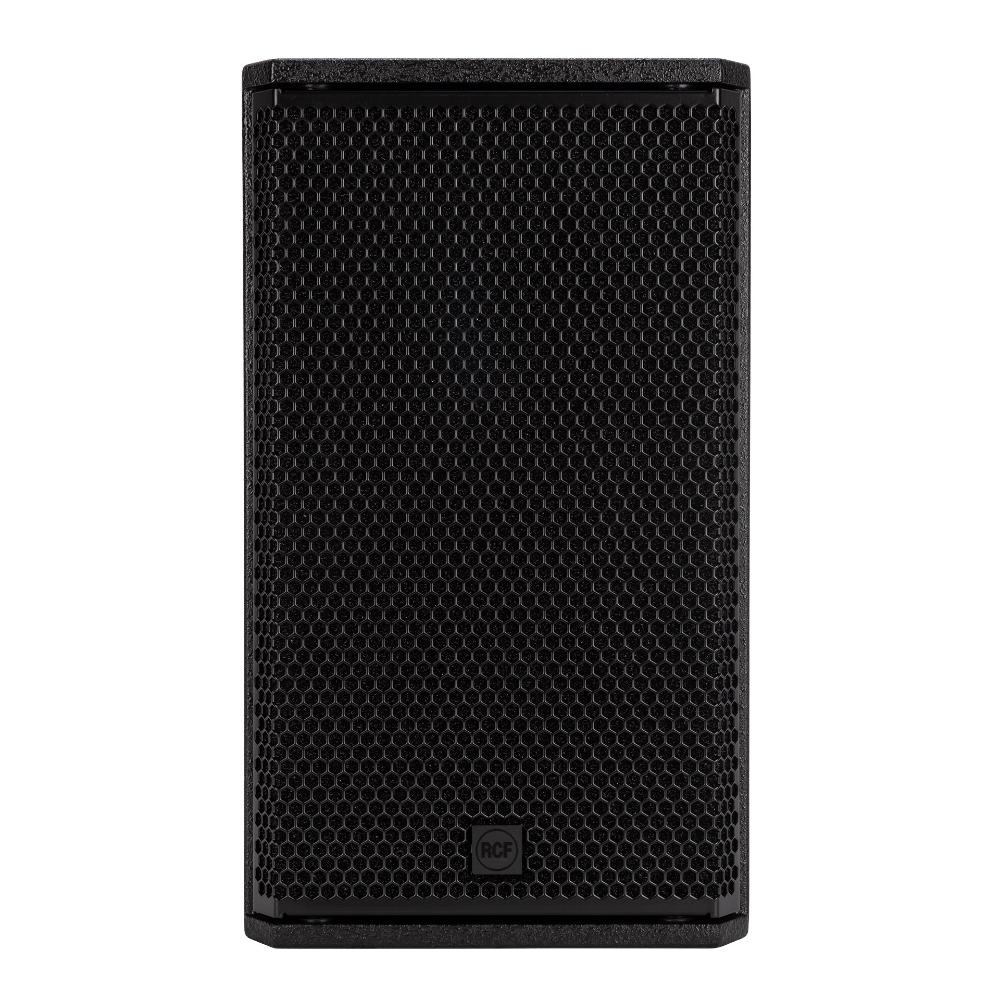

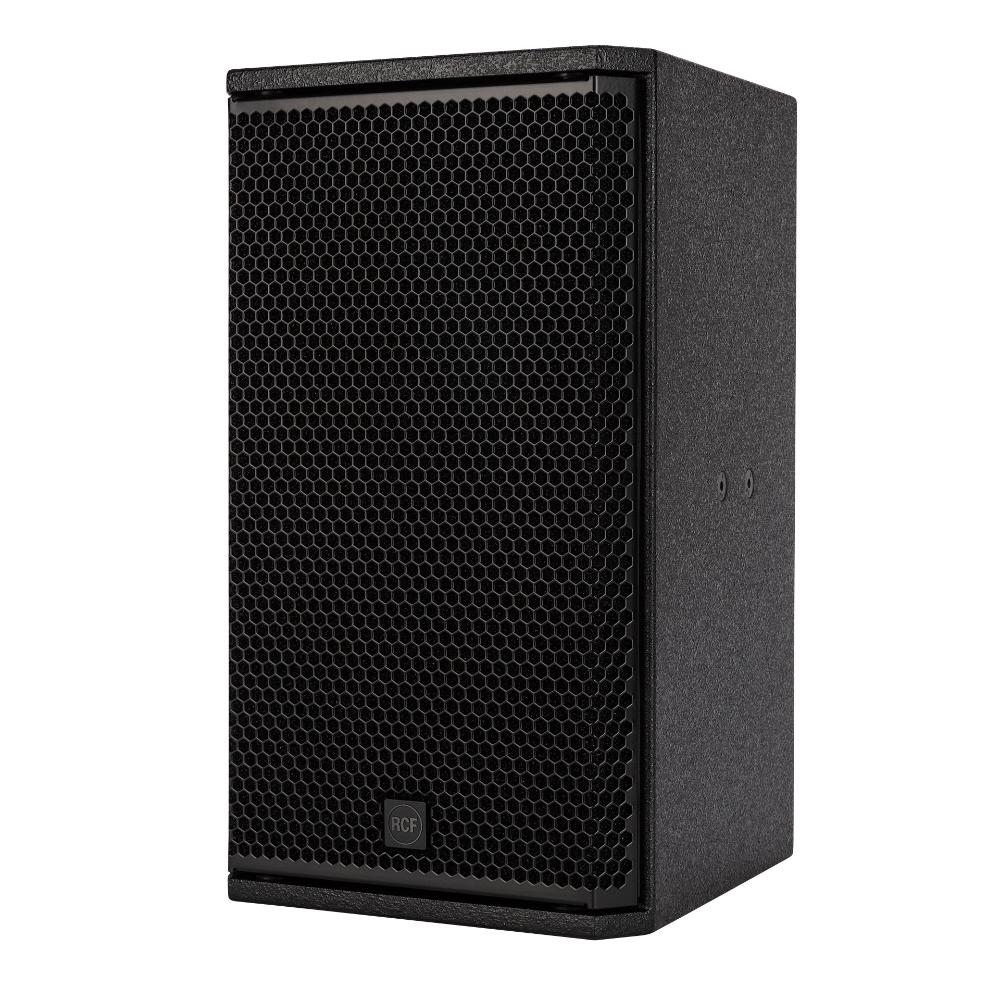

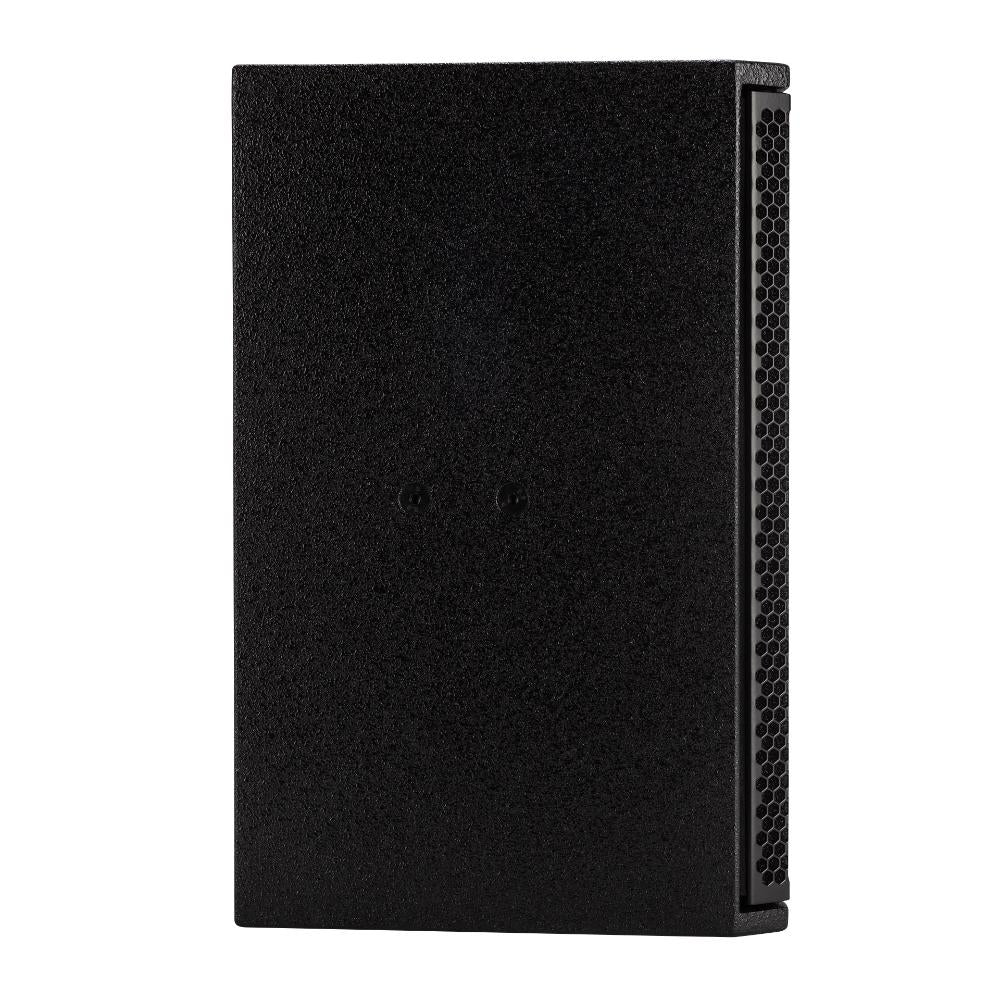

INSTALLED | COMPACT M 10 | TWO-WAY PROFESSIONAL SPEAKER | 300 W RMS power handling | Technical Specifications | 128 dB max SPL
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
70° |
| Directivity index Q |
9 |
| System Sensitivity |
98 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
300 W |
| Peak Power Handling |
1200 W PEAK |
| Protections |
Dynamic active mosfet |
| Crossover Frequencies |
1800 Hz |
| Recommended Amplifiers |
| XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504 |
| Transducers |
| Compression Driver |
1 x 1.0'', 1.4'' v.c |
| Woofer |
1 x 10'', 2.5'' v.c |
| Input/Output section |
| Input connectors |
Euroblock |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
8 x M8, 8 x M10 |
| Grille |
Steel with clothing |
| Color |
Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
| Height |
510 mm / 20.08 inches |
| Width |
295 mm / 11.61 inches |
| Depth |
325 mm / 12.8 inches |
| Weight |
17 kg / 37.48 lbs |
| Shipping information |
| Package Height |
545 mm / 21.46 inches |
| Package Width |
363 mm / 14.29 inches |
| Package Depth |
333 mm / 13.11 inches |
| Package Weight |
20 kg / 44.09 lbs |
