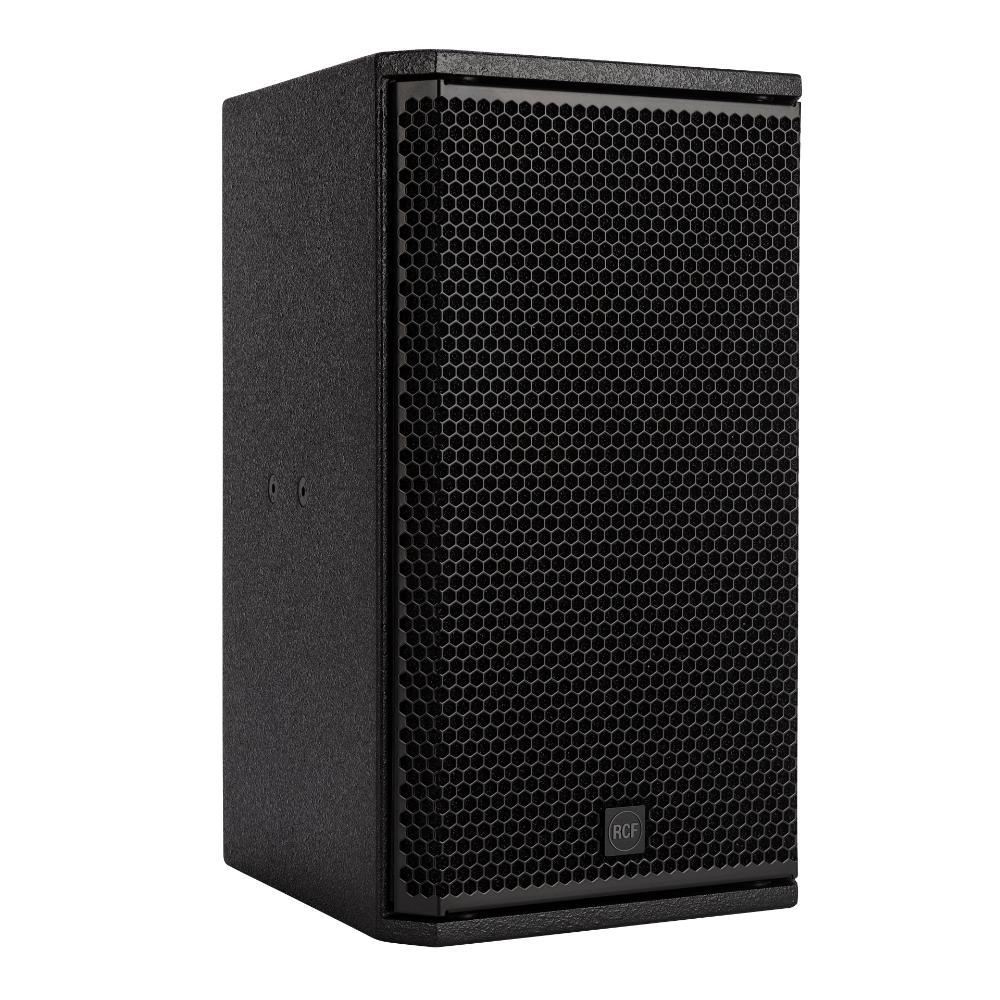

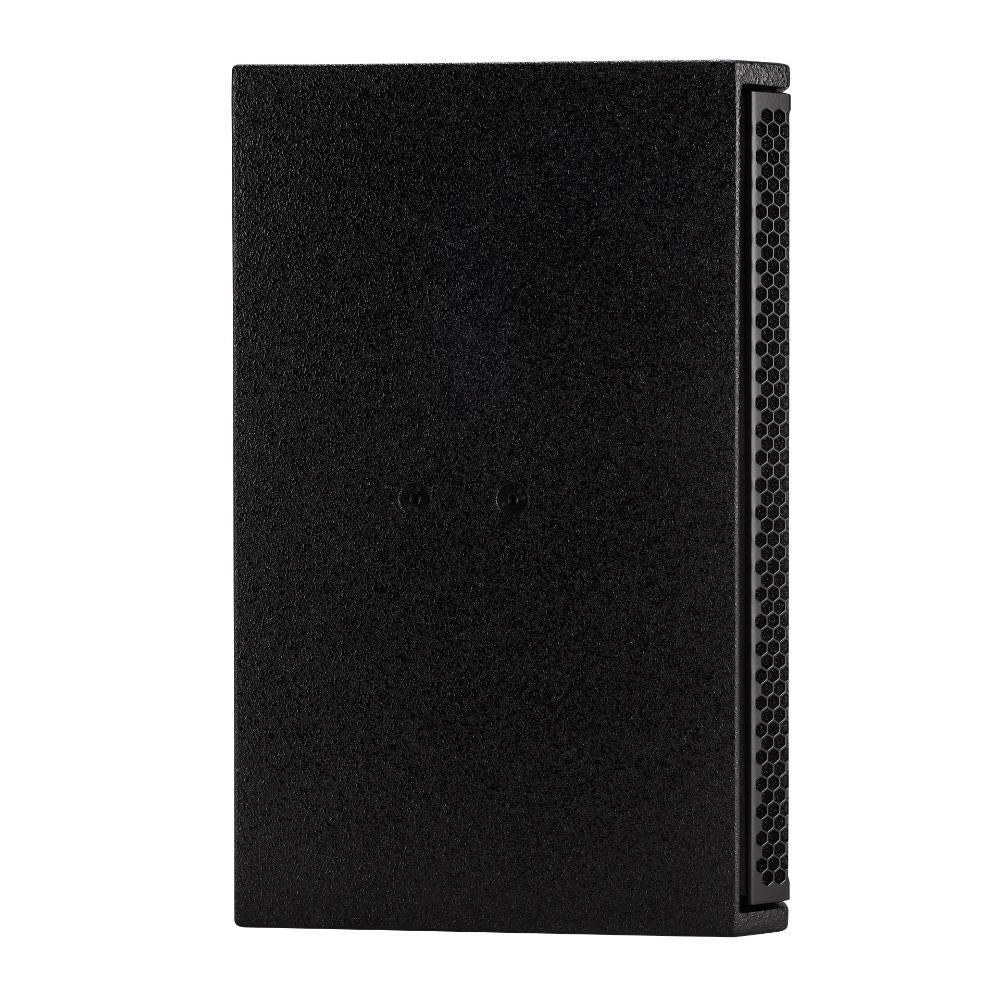

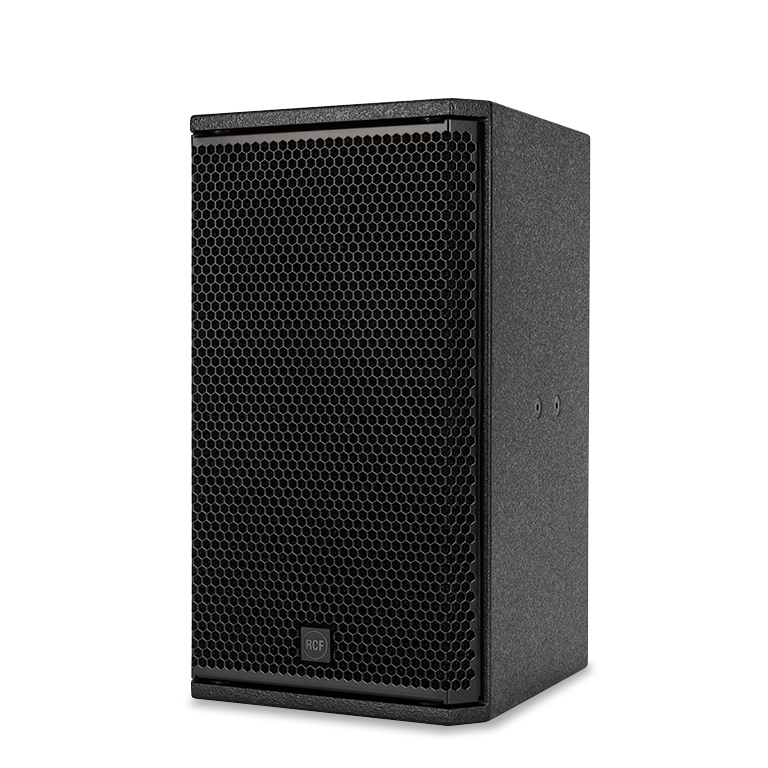

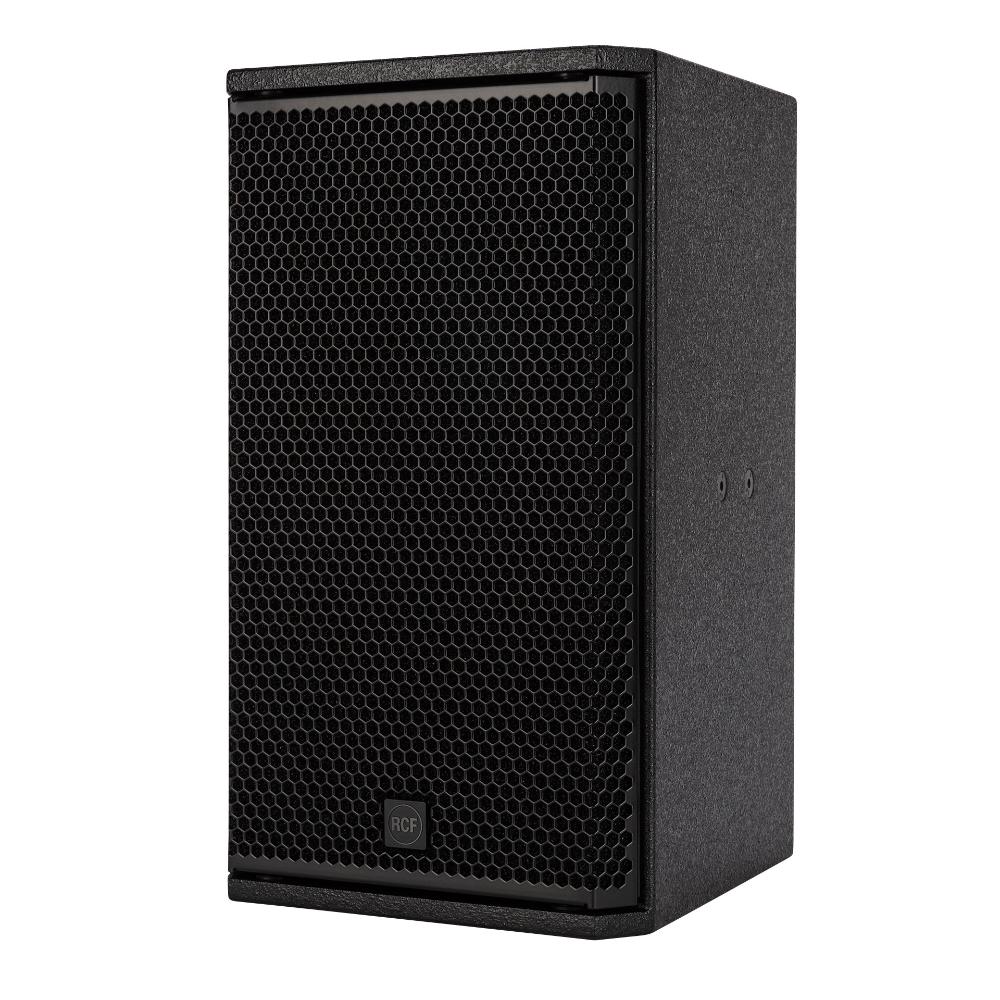

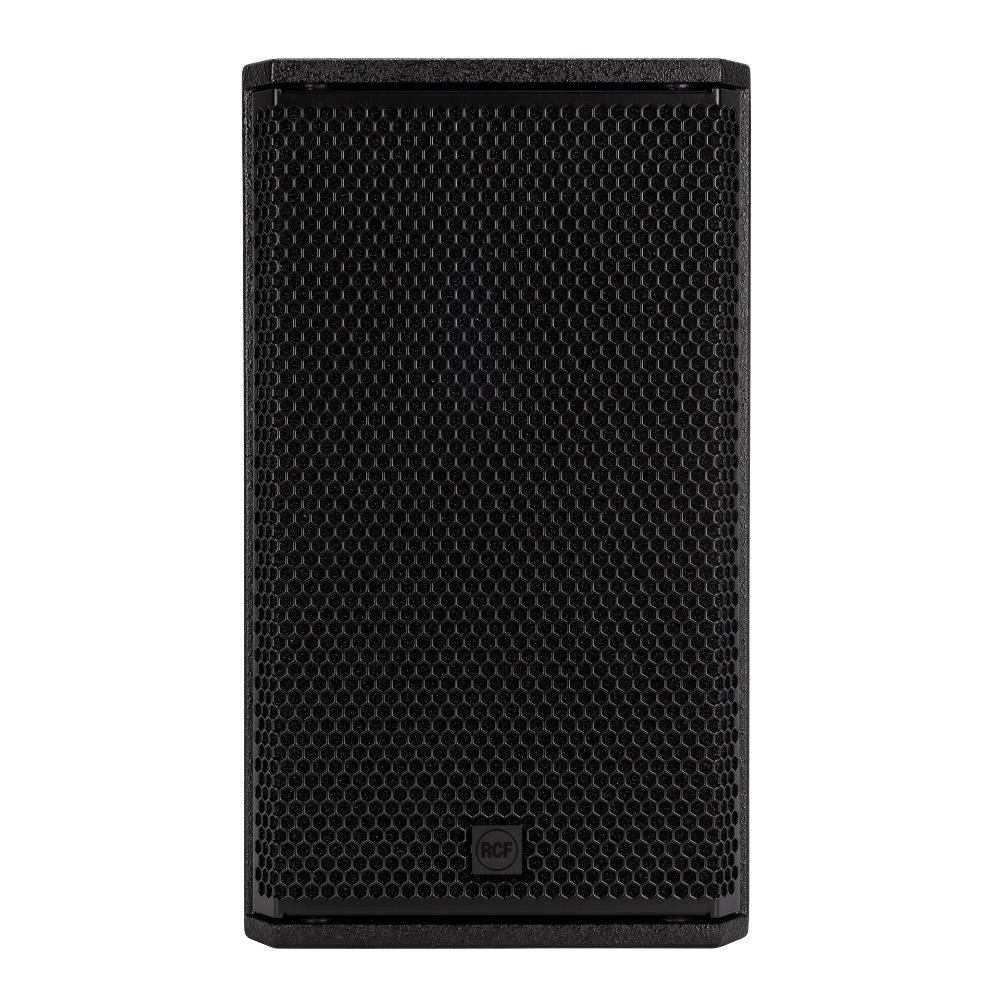

BUSINESS MUSIC | INSTALLED | COMPACT M 05 | TWO-WAY PROFESSIONAL SPEAKER | 80 W RMS power handling | Technical Specifications
Technical Specifications
| Acoustical specifications |
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
115 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
80° |
| Directivity index Q |
7 |
| System Sensitivity |
89 dB |
| Power section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
80 W |
| Peak Power Handling |
320 W PEAK |
| Crossover Frequencies |
2200 Hz |
| Recommended Amplifiers |
DMA 162, DMA 162P, DMA 504, DMA 82 |
| Transducers |
| Dome Tweeter |
1 x 1.3'' neo, 1.0'' v.c |
| Woofer |
1 x 5.0'', 1.2'' v.c |
| Input/Output section |
| Input connectors |
Euroblock |
| Output connectors |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
4 x M6, 2 x M8 |
| Grille |
Steel with clothing |
| Color |
Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
| Height |
303 mm / 11.93 inches |
| Width |
172 mm / 6.77 inches |
| Depth |
191 mm / 7.52 inches |
| Weight |
4.2 kg / 9.26 lbs |
| Shipping information |
| Package Height |
324 mm / 12.76 inches |
| Package Width |
215 mm / 8.46 inches |
| Package Depth |
196 mm / 7.72 inches |
| Package Weight |
5.1 kg / 11.24 lbs |
