Description

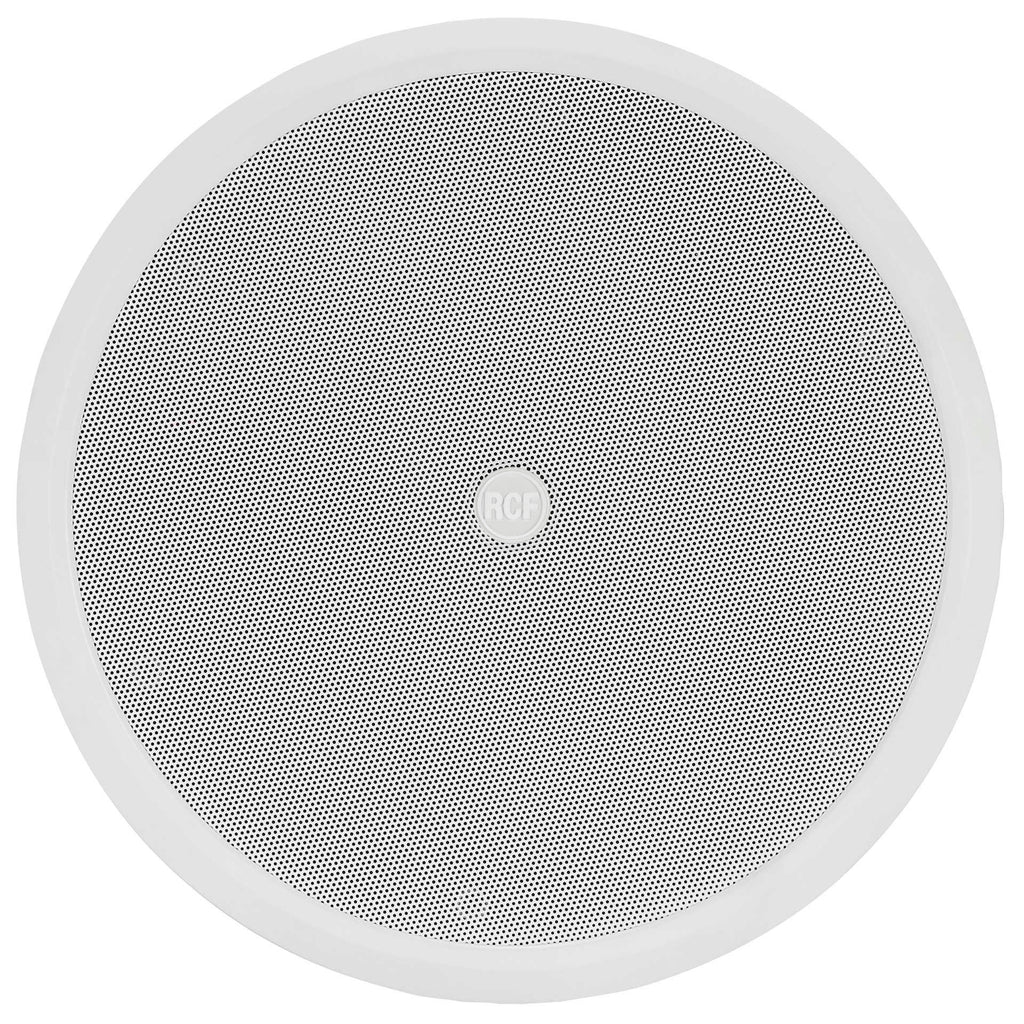

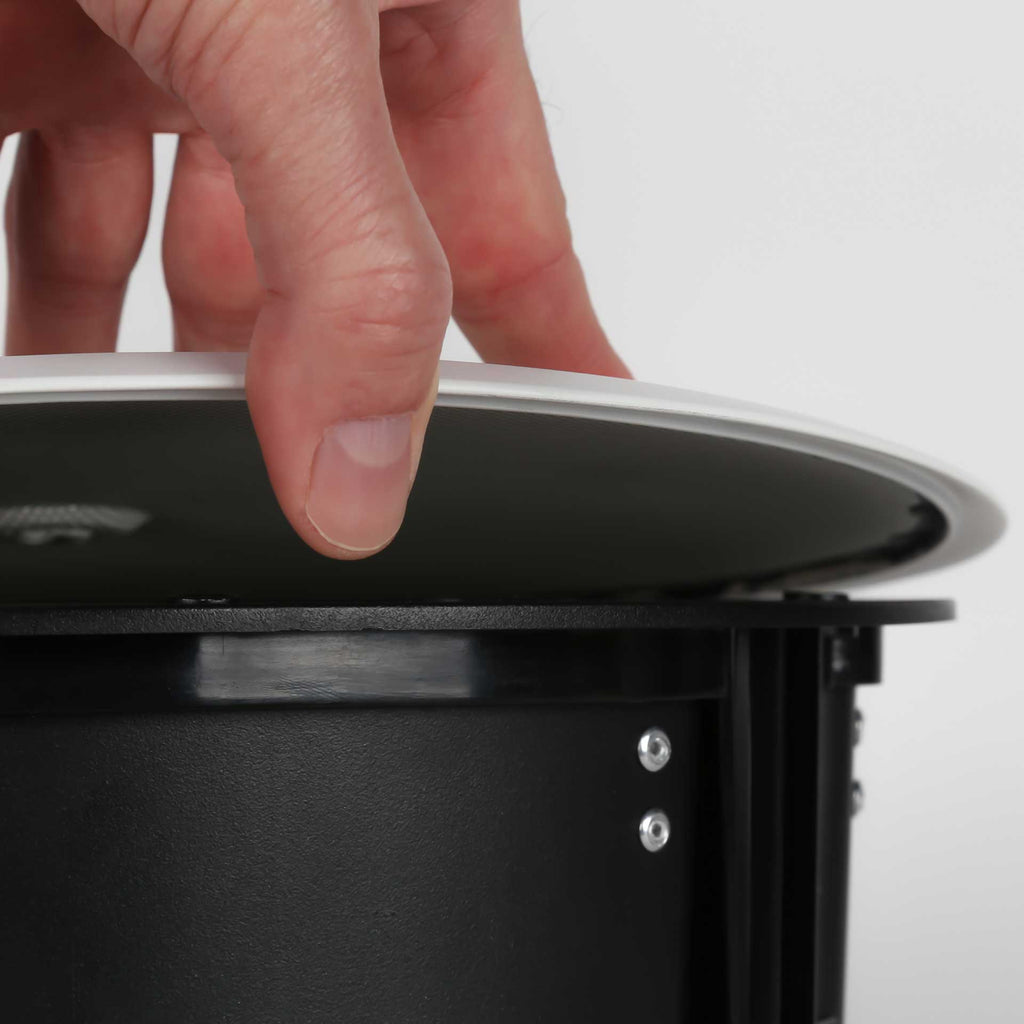

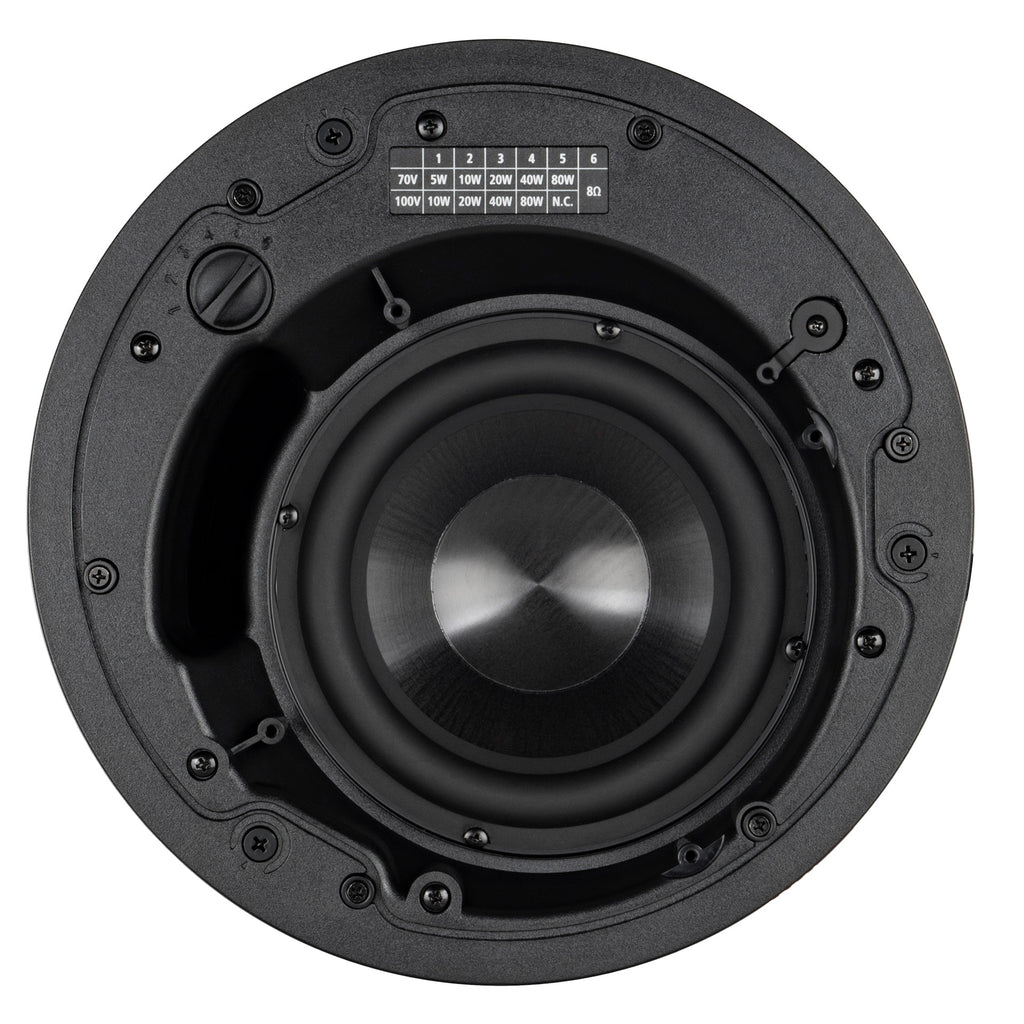

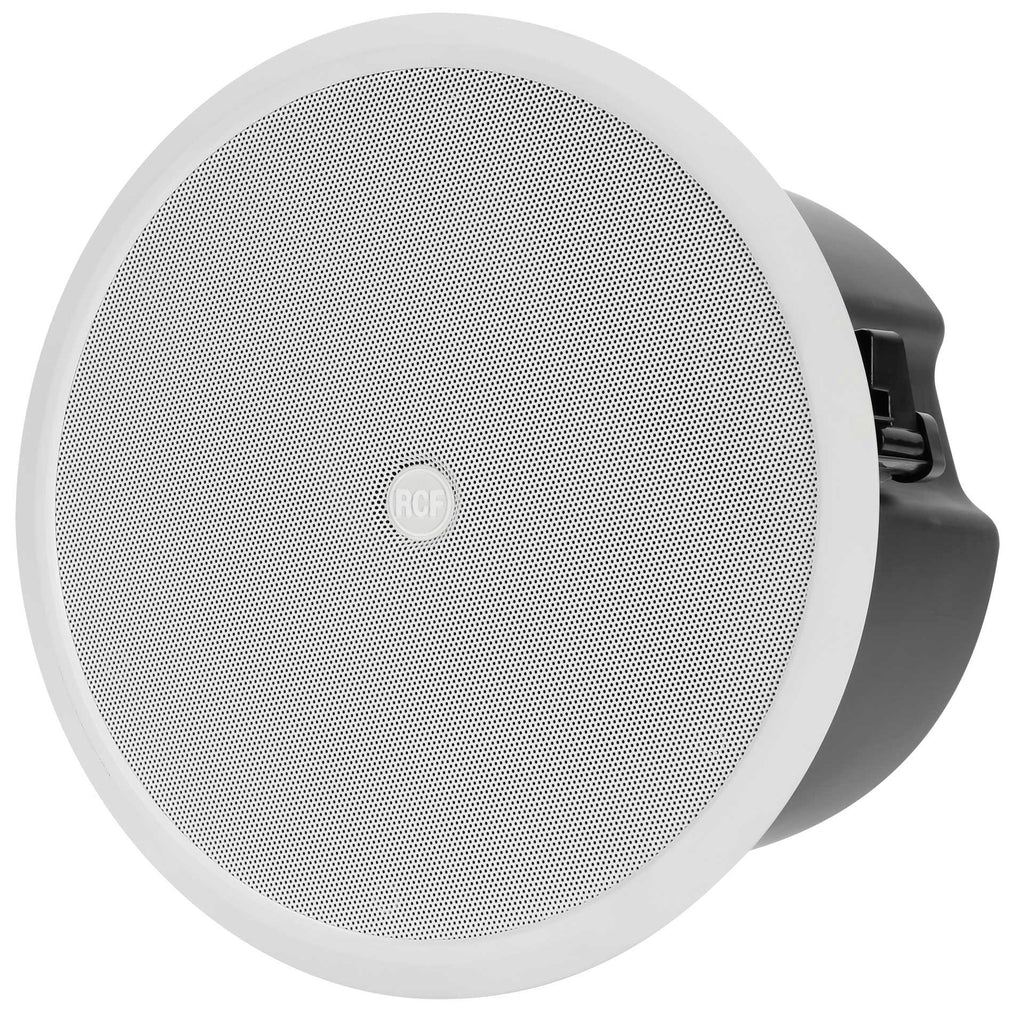

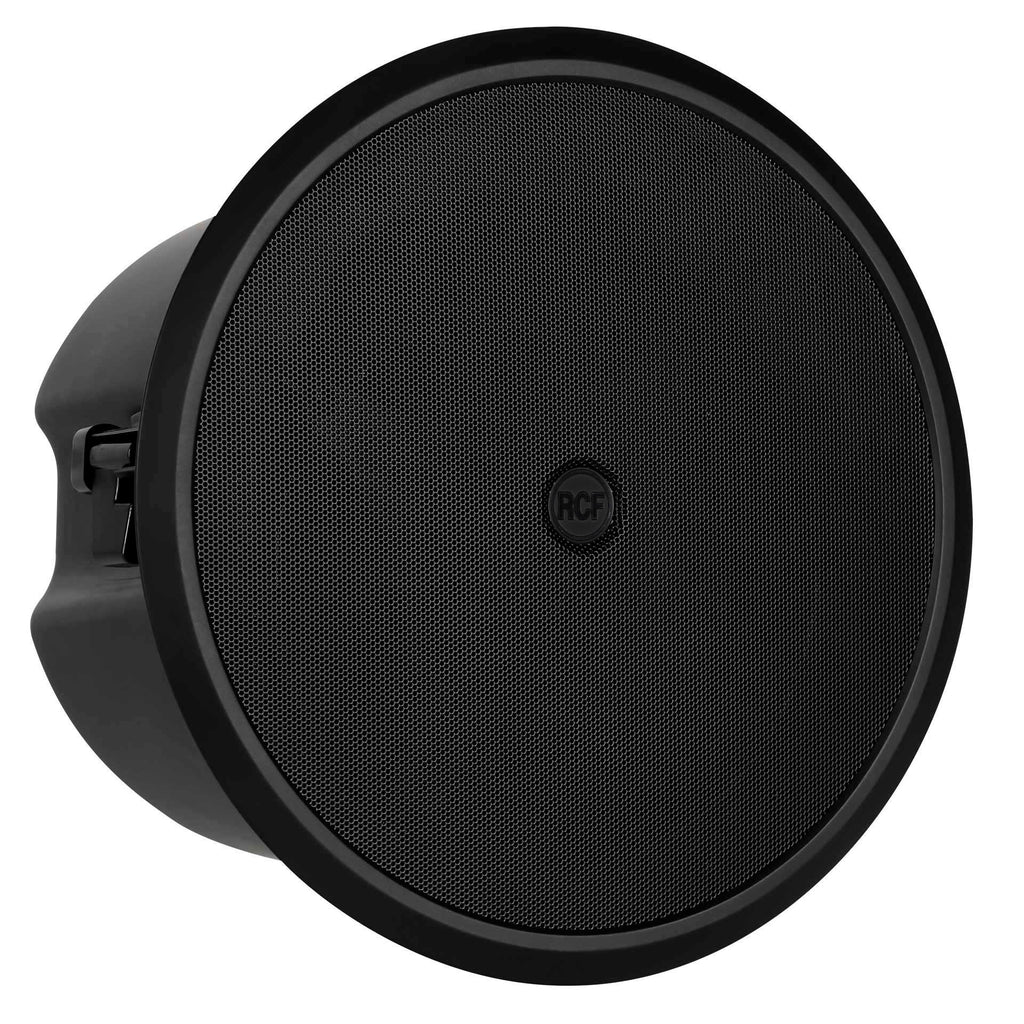

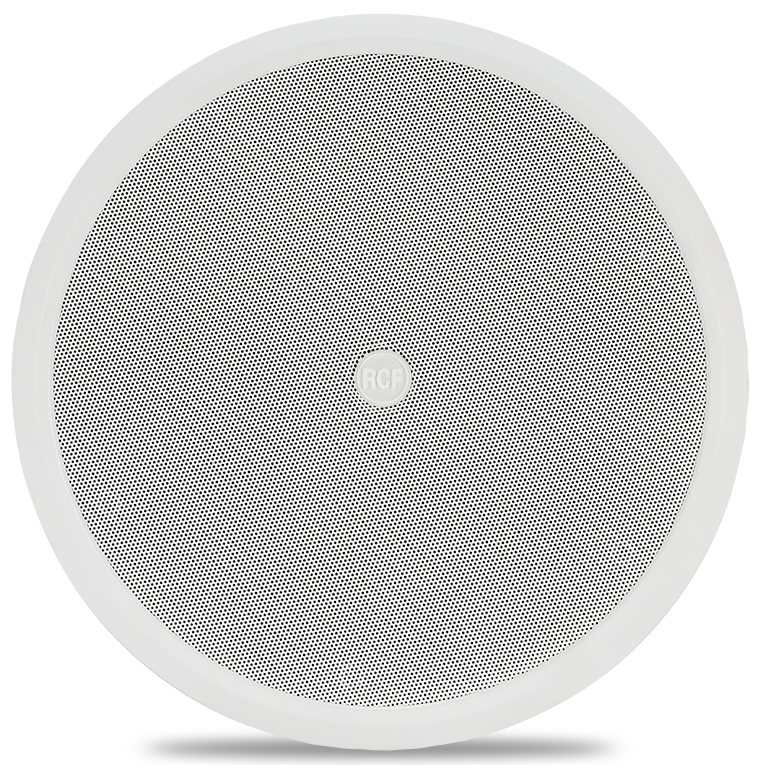

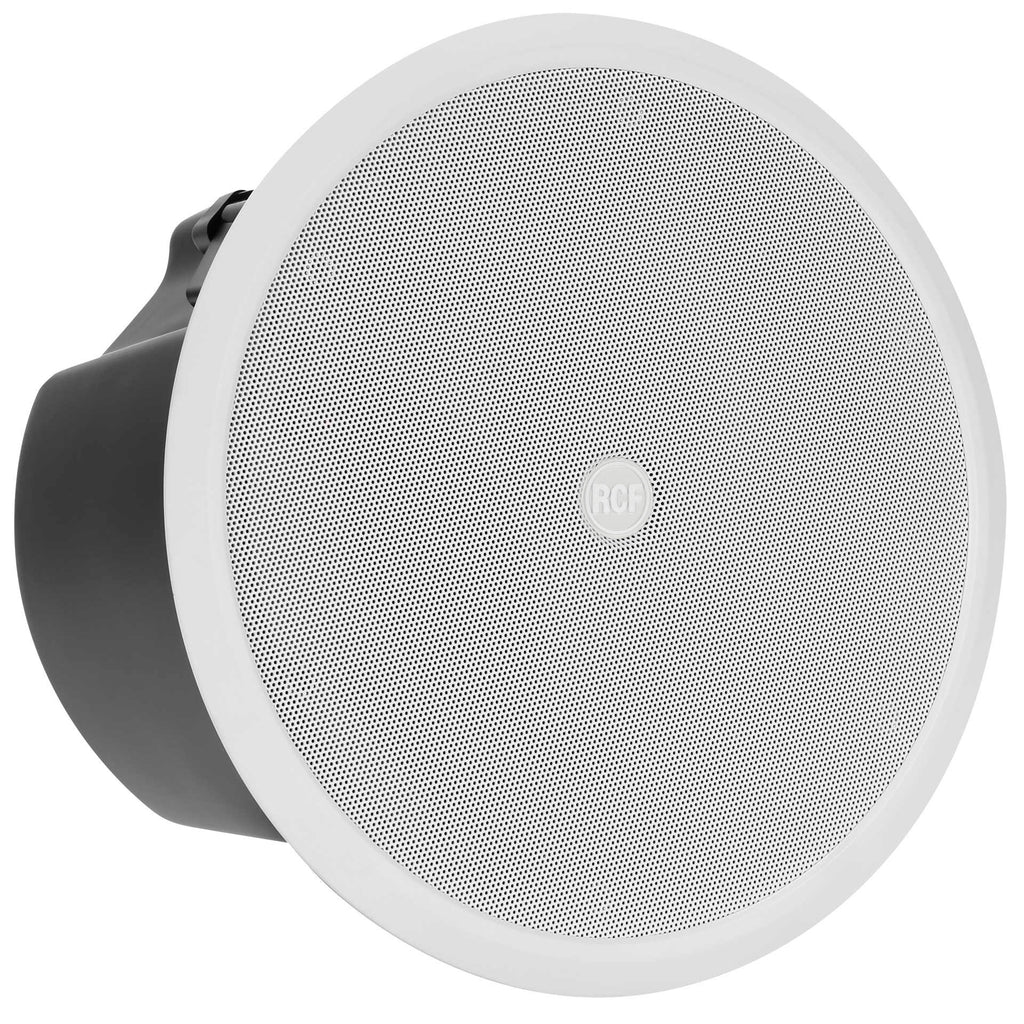

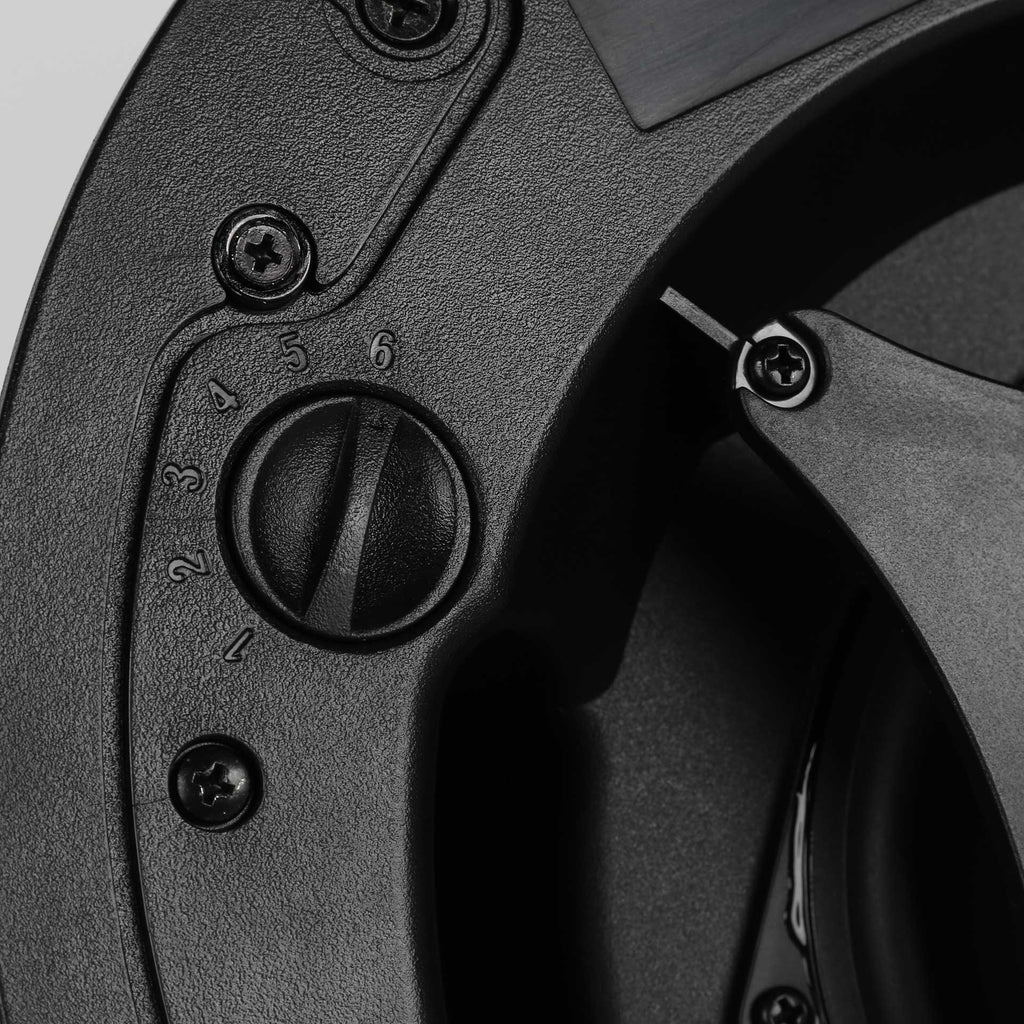

CMR-S 60T is a ceiling subwoofer, suitable for a wide range of applications. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 6.5'' woofer and 80 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducer guarantees faithful and precise low frequencies reproduction and allows to reach truly remarkable sound pressure levels for such compact product. The connection is simple and safe thanks to the removable four-pole screw terminals. The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch (the line transformer allows selection among five power rates).
Features
- 80 W RMS power handling
- 109 dB max SPL
- 45 ÷ 250 Hz frequency range
- 180° omnidirectional coverage angle
- 6.5" high power woofer, 1.5'' v.c.
- Self extinguishing plastic body and metal backcan
- Steel magnetic front grille

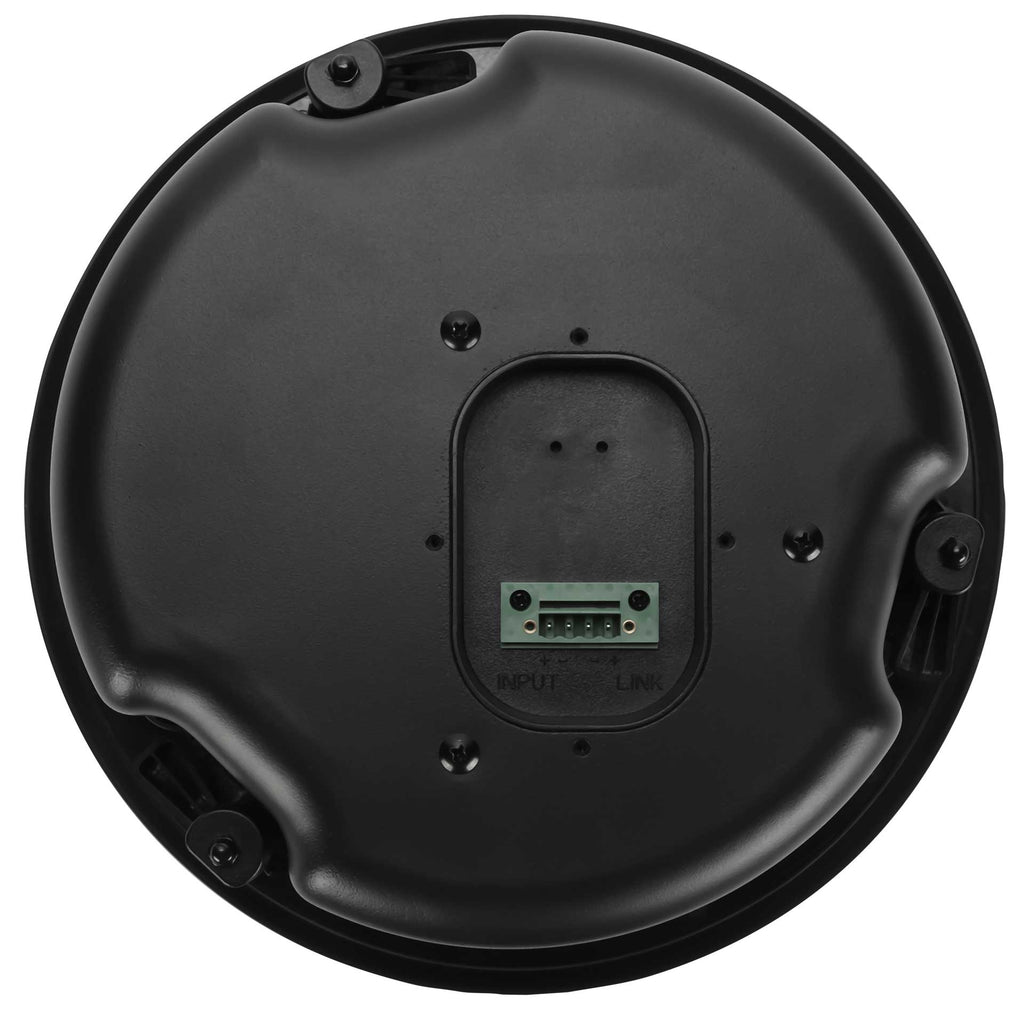

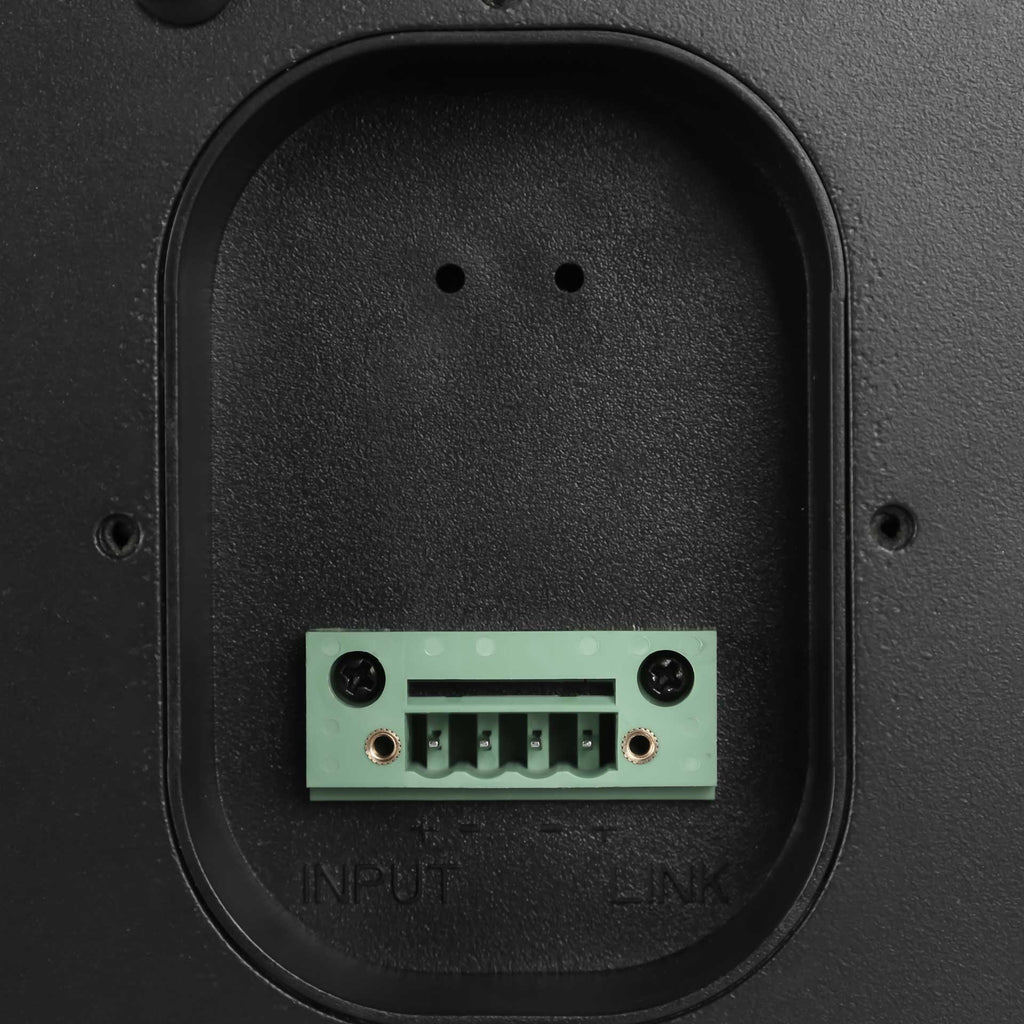

- 4 pole EUROBLOCK connector (audio input and parallel link output)
- 5 different power levels selectable
Specifications
| Acoustical specifications | |
| Frequency Response (-10dB) | 45 Hz - 250 Hz |
| Max SPL @ 1m | 109 dB |
| Coverage angle | 180° |
| System Sensitivity | 89 dB |
| Power section | |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 80 W RMS |
| Peak Power Handling | 320 W PEAK |
| Protections | Bulb lamp |
| Recommended Amplifiers | XPS SERIES, KPS SERIES, DMA SERIES |
| Transducers | |
| Woofer | 1 x 6.5'', 1.5'' v.c |
| Input/Output section | |
| Input connectors | Euroblock |
| Output connectors | Euroblock |
| Constant Voltage Transformer | 70/100 V |
| Power selection 1 | 80 W - 125 ohm |
| Power selection 2 | 40 W - 250 ohm |
| Power selection 3 | 20 W - 500 ohm |
| Power selection 4 | 10 W - 1000 ohm |
| Power selection 5 | 5 W - 2000 ohm |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | ABS |
| Hardware | Steel backcan |
| Grille | Steel |
| Color | White - RAL 9003 |
| Size / Weight | |
| Depth | 202 mm / 7.95 inches |
| Recessed Depth | 193 mm / 7.6 inches |
| Diameter | 300 mm / 11.81 inches |
| Cut out diameter | 260 mm / 10.24 inches |
| Weight | 4.5 kg / 9.92 lbs |
| Shipping information | |
| Package Height | 280 mm / 11.02 inches |
| Package Width | 362 mm / 14.25 inches |
| Package Depth | 362 mm / 14.25 inches |
| Package Weight | 6 kg / 13.23 lbs |
