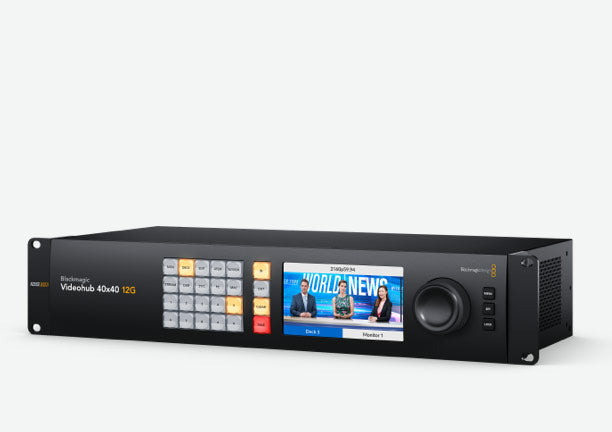

Blackmagic Videohub 40x40 12G, Large 40x40 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time

Large 40x40 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.

Blackmagic Audio Monitor 12G G3 Blackmagic Audio Monitor 12G G3 is a powerful audio monitor that has amazing sound quality in a tiny 1RU size! That means it can be installed anywhere! The design is dominated by a large audio meter with accurate ballistics that can be changed between various audio metering standards. There's a 12G-SDI input for monitoring audio from professional video equipment. Plus the new model includes a 10G Ethernet SMPTE-2110 IP video input so you can connect to IP broadcast systems without an external converter. It also includes traditional balanced analog XLR, HiFi and AES/EBU audio inputs too! There's even an HDMI video output so you can monitor using large screen TV's or computer monitors!

Designed from aluminum machined metal, Blackmagic Audio Monitor 12G is extremely strong yet also lightweight. The chassis is finished in deep black and anodized so it matches other equipment. Plus the all metal design eliminates acoustic vibration even at loud volumes. The two large audio meters have 27 levels with each segment individually machined into the aluminum chassis so there is absolutely no light bleed between segments, giving you an incredibly crisp looking meter. The front panel has buttons to solo each left or right channel, select between 12G-SDI, 2110 IP, AES/EBU, Analog or HiFi audio and to mute the speakers. There's a convenient headphone socket right on the front panel!

Blackmagic Audio Monitor 12G gives you incredibly big sound in only 1 rack unit size! The audio monitor includes a very high powered amp so you can get the volume you need for clear audio monitoring in noisy environments such as live events. The secret is the dual subwoofer design that has the acoustic power to create rich deep bass sounds even within the limited rack size. The digital processor also adjusts multiple frequency bands to get a smooth flat frequency response. All this adds up to an incredible audio monitoring solution with amazing sound, but with a small size that fits into small broadcast trucks, fly away kits, transmission racks and control rooms.

The amazing audio meters on Blackmagic Audio Monitor 12G have real analog style ballistics that correctly conform to audio meter standards. The secret is that each audio meter segment has an independent RGB LED which can be changed to any color required for different meter standards. Plus each segment is independently machined and isolated, so no light bleeds between segments. The meters can be changed between VU -20dBFS and -18dBFS, PPM EBU -20dBFS and -18dBFS, PPM BBC -20dBFS and -18dBFS, Loudness EBU +9 and +18 plus Loudness in K-weighting LUFS +9 and +18 scale. Adhesive labels are included so you can change the meter standard and then add the correct decal for the meter standard chosen.

The front panel of Blackmagic Audio Monitor 12G includes a range of controls. Plus, you get more than audio monitoring because the built in LCD lets you monitor the 12G-SDI and 2110 IP video inputs. The LCD features additional status such as the input type selected, the video standard and the selected embedded audio pair from the video input. The LCD also displays the current audio level! The front panel also features a smooth headphone/speaker volume control. There are solo buttons to help you listen to either left or right audio. Plus the arrow keys let you select up and down the embedded audio channels. There's also an input select button and even a mute button!

One of the most exciting features of the Blackmagic Audio Monitor 12G is the HDMI monitoring output. The HDMI output lets you use a large screen TV or a computer monitor as a broadcast monitor. The HDMI output is converted from the currently selected input, either 12G-SDI or the 2110 IP video inputs. There's even a 12G-SDI loop output, which also outputs the current selected video input. This means the SDI loop output can include video from either the SDI or 2110 IP video inputs. Plus you can monitor all embedded audio pairs from the video inputs.

Specifications

Connections

• SDI Video Outputs: 40
• SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
• Video Input Re-Sync: None
• SDI Reclocking: On all SDI outputs.
• Reference Inputs: Tri-Sync or Black Burst.
• Reference Outputs: Reference terminating loop output.
• Ethernet: Supports 10/100/1000 BASE-T.
• Computer Interface: USB-C

Standards

• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
• SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
• SDI Video Sampling: YUV 4:2:2 and RGB 4:4:4
• SDI Color Precision: 10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
• SDI Color Space: REC 601, REC 709, REC 2020
• SDI Auto Switching: Automatically selects between 270Mb SD-SDI, 1.5G HD-SDI, 3G level A and level B HD-SDI, 6G HD-SDI, 12G-SDI on each input so that each input can be running a different television standard.
• SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

Control

• Built in Control Panel: 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.
• External Control Panel: Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
• Control Panel Connection: Ethernet

Software

• Software Control: Router control included free for Windows and Mac.
• Internal Software Upgrade: Via included updater application.

Display

• Displays: Built in 5 inch LCD for video and menu settings.

Power Requirements

• Power Supply: 2 x Internal 100 - 240V AC 50/60Hz. IEC power cables required.
• Power Fail Protection: Crosspoint connections preserved and restored instantly at power on.
• Power Usage: 46.5 W max.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 13.89 lb
