Description
High performance low latency Ethernet switch, includes 16 fast 10G Ethernet and 2 high speed 100G Ethernet ports, rear Ethernet connections and NMOS protocol for 2110 IP video workflow.
Blackmagic Ethernet Switches are the first Ethernet switches designed for film and television! They deliver high performance with low latency and all connections are on the rear, keeping cables neat, hidden and secure. There are two models, both with 10G and 100G Ethernet ports. The Blackmagic Ethernet Switch 360P includes a dedicated router panel, so you can set 2110 IP multicasting using a familiar video routing control panel. Users won't even know they're routing SMPTE-2110! The Blackmagic Ethernet Switch 820 has 8 x 100G Ethernet connections with data center style front-to-back cooling and basic SMPTE-2110 routing. You get easy to use solutions with the features you need for television!
Blackmagic Ethernet Switch models have been designed specifically for television! All network connections are on the rear, the same side as ports on your broadcast equipment, allowing you to loom cables neatly and eliminate cabling mess. The two models have very different designs! The Blackmagic Ethernet Switch 360P includes a built-in front panel that looks like a conventional video router. The Blackmagic Ethernet Switch 820 is a higher performance design with professional front-to-back cooling, 6 fans for redundancy, dual redundant power supplies and simple router control. This quiet design is very important when you're working near equipment such as in broadcast trucks and mini racks!
Now you can build small 2110 IP systems such as fly away kits or small broadcast vans. That's because the 2110 multicast settings are configured using a simple router panel! You don't need an IT technician and there are no complex multicast settings!
Get the ultimate ISO recording and replay solution! You get lots of 10G Ethernet ports for connecting HyperDeck ISO recorders and DaVinci Resolve workstations. Then connect a Blackmagic Cloud Store Ultra to the extremely fast 100G Ethernet ports.

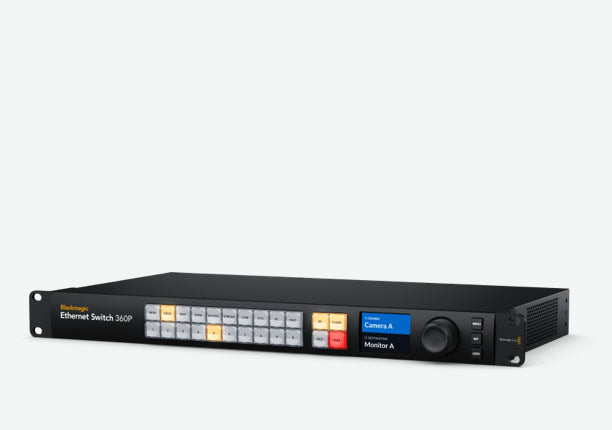

Blackmagic Ethernet Switch 360P has all its Ethernet connections on the rear panel which is the same side as your television equipment. So there's no cable management as the cabling is simple. Now you can connect to and remotely manage all your gear!
1. 2 Extreme Speed 100G Ethernet Connections Get two independent 100G Ethernet connections for extreme speed! Connect to HyperDeck ISO Recorder 100G and Blackmagic Cloud Store Ultra via fast 100G optical fiber. For large ISO recording, Blackmagic Cloud Store Ultra is ideal with the speed needed for many simultaneous Ultra HD streams.
Specifications
Connections
- 10G Ethernet Ports: 16 x 10Gb/s RJ-45 connectors supporting 100/1000/10G BASE-T.
- 100G Ethernet Ports: 2 x 100Gb/s QSFP28 connectors.
- SDI Monitor Outputs: 1
- HDMI Monitor Outputs: 1
- Computer Interface: USB-C
IP Video Compliance
- Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
- NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP-002-01: Natural Grouping
- NMOS BCP-004-01: Receiver capabilities
Displays
- SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- Monitor Out Displays: Device Name, network connections, network activity.
- Front Panel Display: Built in 2.2 inch LCD for video and menu settings.
Environmental Specifications
- Operating Temperature: 5° to 40° C (41° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
Physical
- Weight: 7.57 lb
