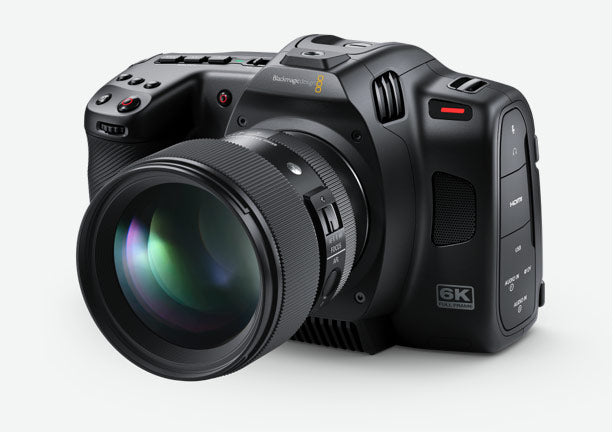

Blackmagic Cinema Camera 6K, Advanced digital film camera with massive full frame 36x24mm 6K sensor, wide dynamic range, flexible L-Mount and optical low pass filter

Advanced digital film camera with massive full frame 36x24mm 6K sensor, wide dynamic range, flexible L-Mount and optical low pass filter. Records Blackmagic RAW with proxies to CFexpress media.

Blackmagic Cinema Camera 6K Next Generation Cinema Camera for High End Digital Film! Introducing a new generation in cinematography! The new Blackmagic Cinema Camera 6K is an extremely high end digital film camera that produces precise skin tones and rich organic colors. The camera features a massive full frame 36 x 24mm 6K sensor with wide dynamic range, a very flexible L-Mount for lenses and a built in optical low pass filter that's custom designed to match the sensor. You also get fast CFexpress media and the camera can even use Pocket Cinema Camera accessories! When you are doing cloud and mobile work, the camera records both deep bit depth Blackmagic RAW and H.264 proxies at the same time! No other camera includes this level of technology, image quality and portability!

Blackmagic Cinema Camera 6K has the professional features you need for feature film, television programming and documentaries, however now this same quality can be used to create cinematic content for social media, YouTube videos and more! You get the same features found on high end digital film cameras, allowing capture of deeper colors, higher image detail and a wider dynamic range between the brightest highlights and deepest shadows. It's the reason why feature films look so amazing and now you can get the same high end production values for any kind of work. Imagine shooting with large format digital film on low budget independent films, TV commercials or even corporate video!

Large Format Cinematic Digital Film Sensor! Blackmagic Cinema Camera 6K features a massive full frame sensor with a native resolution of 6048 x 4032. That's almost three times larger than a Super 35 sensor and allows you to shoot with a shallow depth of field or to use anamorphic lenses uncropped for a true cinematic look. Whether you're shooting in bright sunlight or in almost no light at all, the 13 stops of dynamic range with dual native ISO up to 25,600 provide stunning low noise images in all lighting conditions. Plus you can shoot up to 36 fps at full sensor resolution or 120 fps windowed. This amazing sensor combined with Blackmagic color science means you get the same imaging technology as expensive digital cinema cameras.

The large full frame sensor in Blackmagic Cinema Camera 6K lets you work in a variety of film formats and aspect ratios without sacrificing quality! Using the full area of the sensor gives you a unique open gate 3:2 image which also lets you reframe your shots in post production. The large sensor also lets you work in true 6:5 anamorphic without cropping, making widescreen cinematic images more detailed and in higher resolution than previously possible. You can even use the classic Super 35 sized window on the sensor to create an instant 'close up' version of your shot that fits seamlessly with open gate footage. All this lets you create distinctive cinematic content in the highest quality!

Blackmagic Cinema Camera 6K features an L-Mount, an advanced lens mount designed to accommodate full frame sensors while ensuring compatibility with new and vintage lenses! With a large diameter of 51.6mm, L-Mount works with the latest full frame lenses from manufacturers such as Leica, Panasonic and Sigma. Plus, a very short flange distance of only 20mm means you can easily add adapters for a variety of lens mounts without impacting image quality. Imagine using modern high speed lenses for sharp, precise images on one shoot and then shooting a period drama with vintage photographic lenses! With L-Mount, you get a single mount that works with virtually any lens for unlimited creative choice!

The distance between the lightest and the darkest parts of an image is called dynamic range and is measured in stops. Blackmagic Cinema Camera 6K has an incredible 13 stops of dynamic range which means it preserves more detail in the lightest and darkest areas of an image than simple video cameras can. This allows you to set exposure for an indoor scene such as a cafe and still retain the details of bright outdoor light coming through a window. You also get more colors than the standard DCI-P3 colorspace used for feature films. Plus DaVinci Resolve Studio is included with the camera, so you get total creative freedom with full exposure adjustment and recovery controls when color grading!

Specifications

Camera Features

• Effective Sensor Size: 36mm x 24mm (Full Frame)
• Lens Mount: Active L-Mount.
• Lens Control: Iris and focus on supported lenses.
• Dynamic Range: 13 Stops.
• Dual Native ISO: 400 and 3200
• Shooting Resolutions: 6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps
• Frame Rates: Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD.
• Focus: Autofocus is available using compatible L-Mount lenses in single shot autofocus, continuous autofocus, object tracking autofocus and face tracking autofocus modes.
• Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
• Screen Dimensions: 5" 1920 x 1080.
• Screen Brightness: 1500 nits
• Screen Type: LCD capacitive touchscreen.
• Metadata Support: Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
• Controls: Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
• Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

• Total Video Inputs: None
• Total Video Outputs: 1 x HDMI up to 1080p60
• Analog Audio Inputs: 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. All audio inputs can also be used for Timecode input.
• Analog Audio Outputs: 1 x 3.5mm headphone jack.
• Computer Interface: USB Type-C for external drive recording, PTP camera control and software updates.

Audio

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Media

• Media: 1 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

• Codecs: Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0

Storage Features

• Storage Type: 1 x CFexpress Type B 1 x high speed USB-C expansion port for external media.
• Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies.
• Storage Rates: Storage rates based on 30 frames per second.

Power Requirements

• Power Supply: 1 x External 12V power supply.
• External Power Input: 1 x 2-pin locking connector.
• Battery Type: NP-F570
• Battery Life: Approximately 60 minutes (recording 6K RAW at 24 fps to CFexpress with screen brightness at 50%)
• Power: 12V-20V.

Environmental Specifications

• Operating Temperature: 0°to 40°C (32° to 104°F)
• Storage Temperature: -20°to 45°C (-4° to 113°F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 4.64 lb
