Description

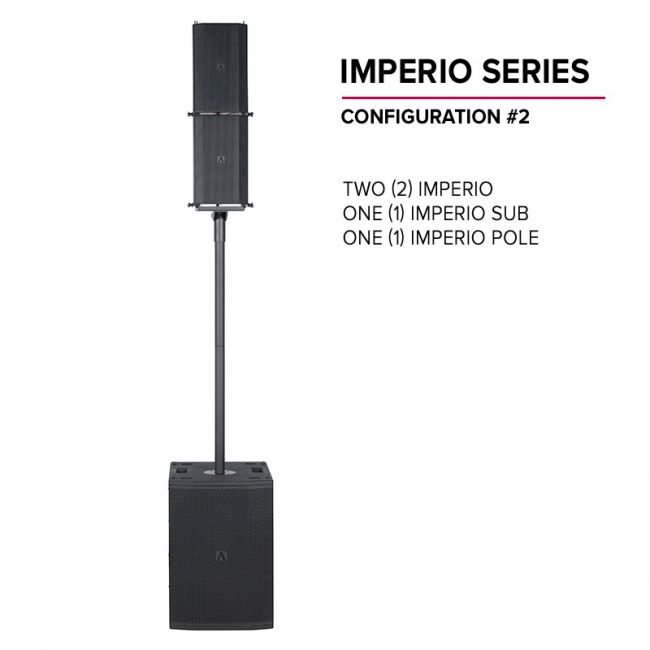

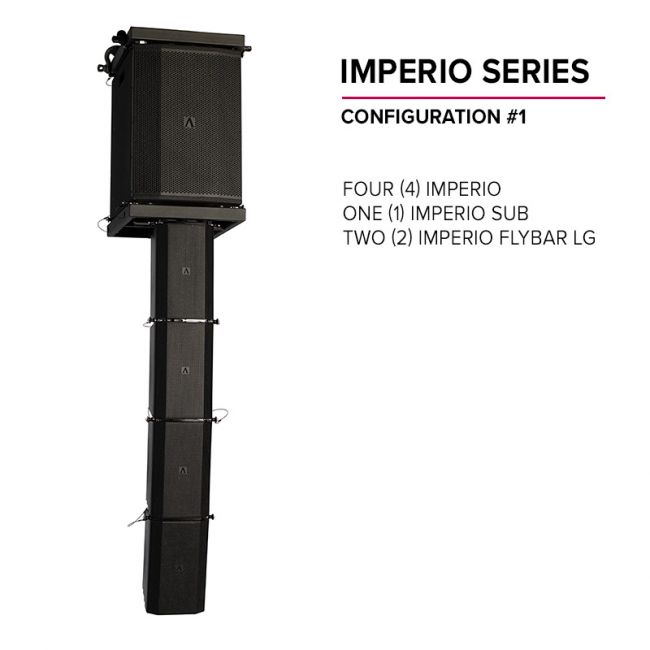

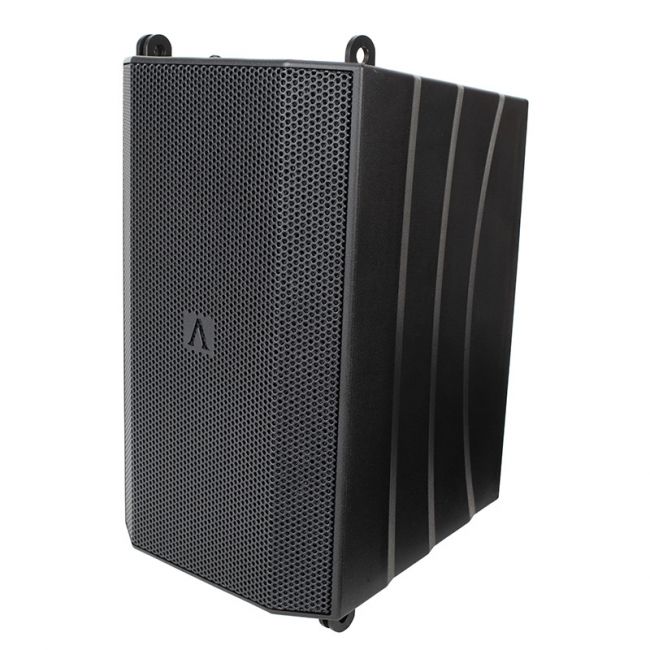

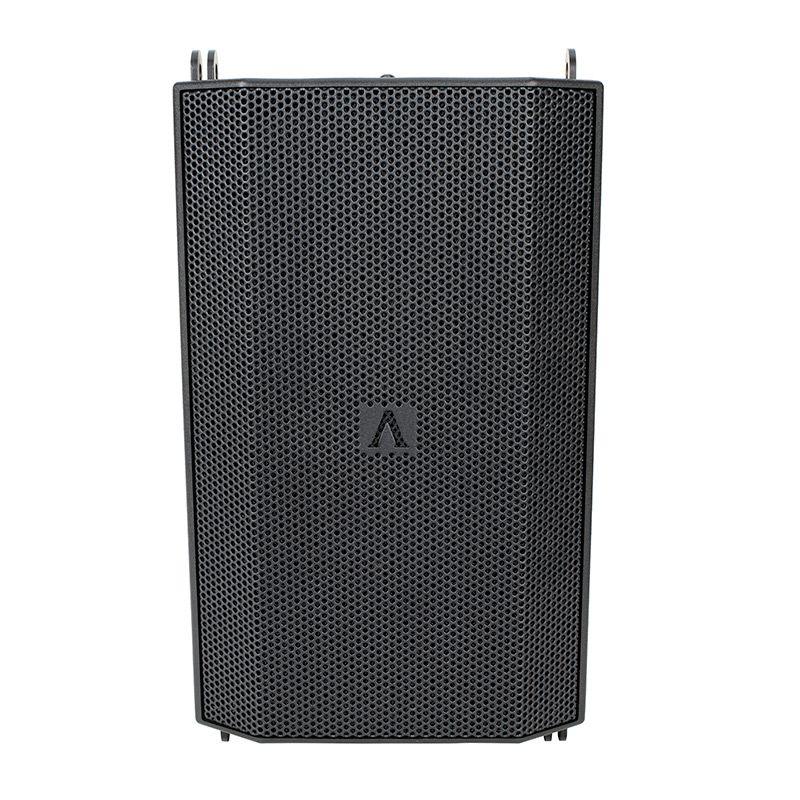

240W RMS Class D Power Amplifier with dual 4.75" woofers. Part of the Imperio Mini Line Array Series. |

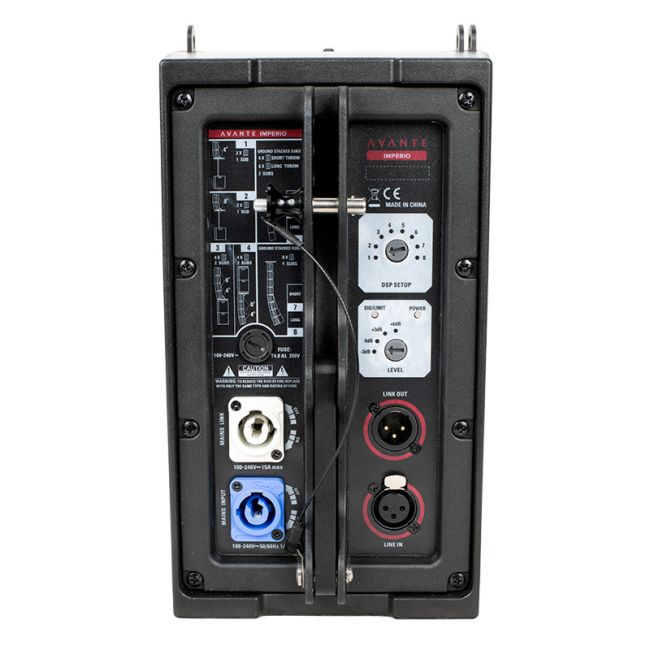

AMPLIFIER: • 240W Class RMS D Amplifier Module • Switching Power Design • LED Power / Signal / Clip Indicator • 24-bit DSP Selectable Configurations • Input: 1x 3pin XLR / powerCON (NAC3FCA) • Output: 1x 3pin XLR powerCON (NAC3FCB) • Volume: Selectable Input Sensitivity Dial • Power Input: 100-240V ~ 50/60Hz

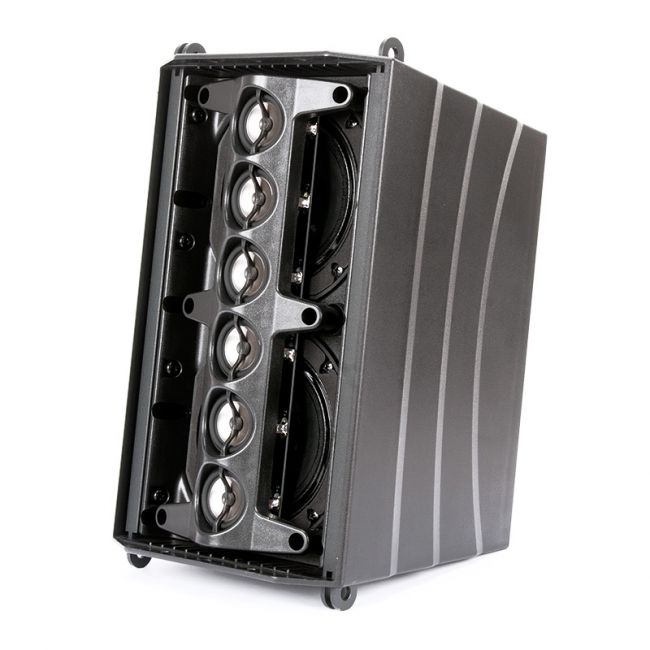

SPEAKER: • 2x 4.75" Neodymium Woofer with 1-inch voice coil • 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology) • Type: 2-Way Active Closed Design • Frequency Response: 150Hz – 20KHz • Impedance: 4 Ohm • Max Output SPL: 117dB (single box measured on Axis @1m) • Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB • Cabinet: ABS Plastic • Grill: 1.0mm steel • Splay Angles: 0, 4, 8, & 12-degrees • Integrated Rigging: Yes • Dispersion Angle: 90-degree x 15-degree • Dimensions (LxWxH): 7.3"x8.8"x12.8" / 184.8x224x324mm • Weight: 14 lbs. / 6.3 kg. |
