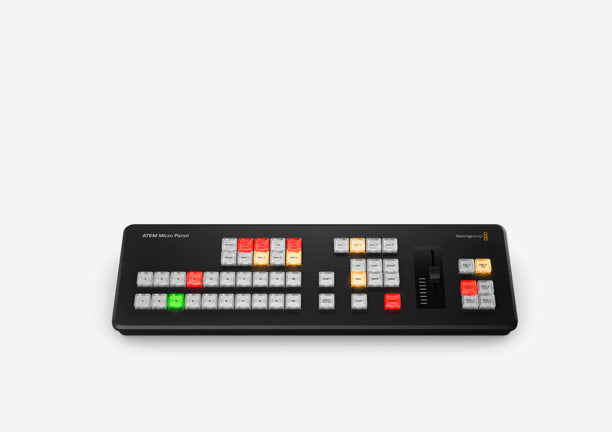

Blackmagic ATEM Micro Panel, Low cost control panel designed to work with ATEM Software Control

Low cost control panel designed to work with ATEM Software Control. Includes buttons for program and preview, keyers, transitions, macros and fader control. Connects via Bluetooth or USB-C.

Introducing ATEM Constellation

Introducing ATEM Constellation, the world's most powerful HD and 4K live production switchers! These powerful switchers are available in 1 M/E models with 10 inputs, 2 M/E models with 20 inputs, 4 M/E models with 40 inputs, and a 4 M/E 4K Plus model with a massive 80 inputs! Plus each SDI input has a dedicated standards converter! ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma key, media players, multi-views, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input. The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panel!

ATEM Constellation switchers boast a compact rack mount design, complete with a built-in control panel. So you can operate the switcher from the front panel during setup or for emergency use. Also included is a large LCD so you can see the program output and change switcher settings. The compact design is perfect for portable live production, with the rear of the switcher including connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control. The top 4 M/E models even include RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.

Powerful 1 M/E live production switcher includes 10 standards converted 3G-SDI inputs, 6 x 3G-SDI outputs, DVE, 4 chroma keyers, a 16 way multi-view, media players, talkback and USB webcam output.

The 2 M/E model doubles the features of the 1 M/E model with 20 x 3G-SDI inputs, 12 x 3G-SDI outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multi-views and a SuperSource for a total of 6 DVEs.

The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource for 12 x DVEs in total.

Specifications

Connections

• Computer Interface: USB Type-C.
• Bluetooth: Bluetooth 5.1 LE

Product Specifics

• Number of Mix Effects Rows: 1
• Direct Cross Points: 10
• Shifted Cross Points: 20
• Crosspoint Button Type: Tri-Color LED
• Preview Transition: 1
• Switching Type Buttons: CUT and AUTO
• Transition Type Buttons: DIP, DVE, STINGER, MIX, WIPE.
• M/E Select Buttons: 4
• Upstream Key Buttons: 4 with ON/OFF
• Downstream Key Buttons: 2 with ON/OFF
• Transition Slider: 1

Software

• Software Applications: ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.

Power Requirements

• Power Supply: Internal battery with power switch. USB-C port for external power supply and battery charging.
• Power Usage: 3 W max.
• Battery Life: Minimum 6 hours. (under normal use)

Environmental Specifications

• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Physical

• Weight: 3.17 lb
• Dimensions: 21"x7"x2 9/16"
