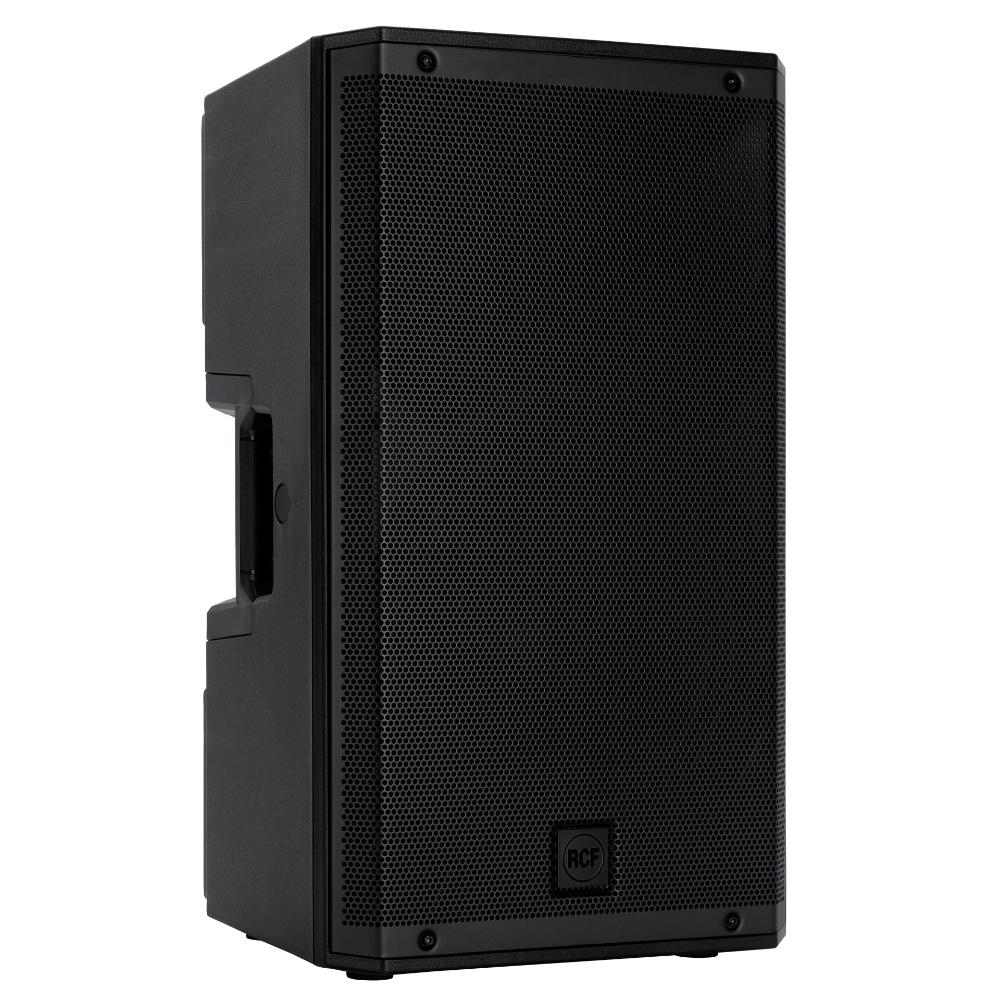

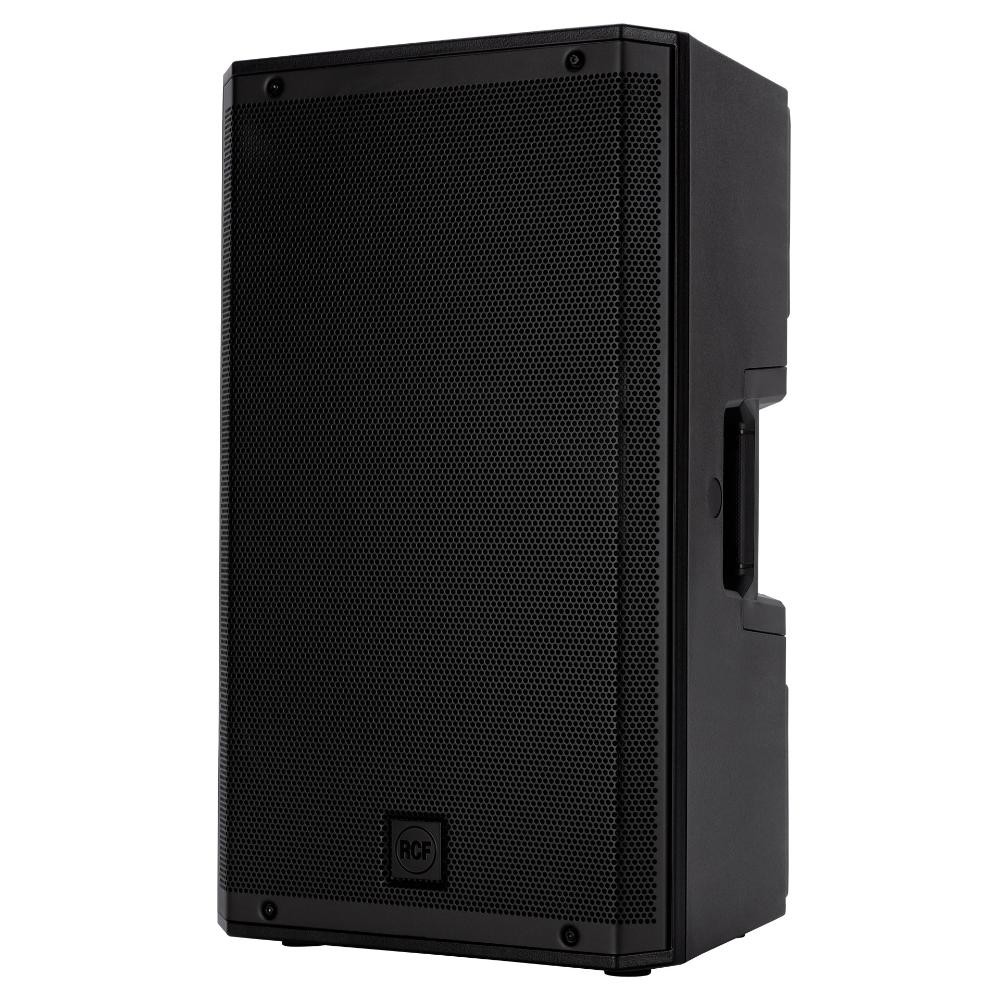

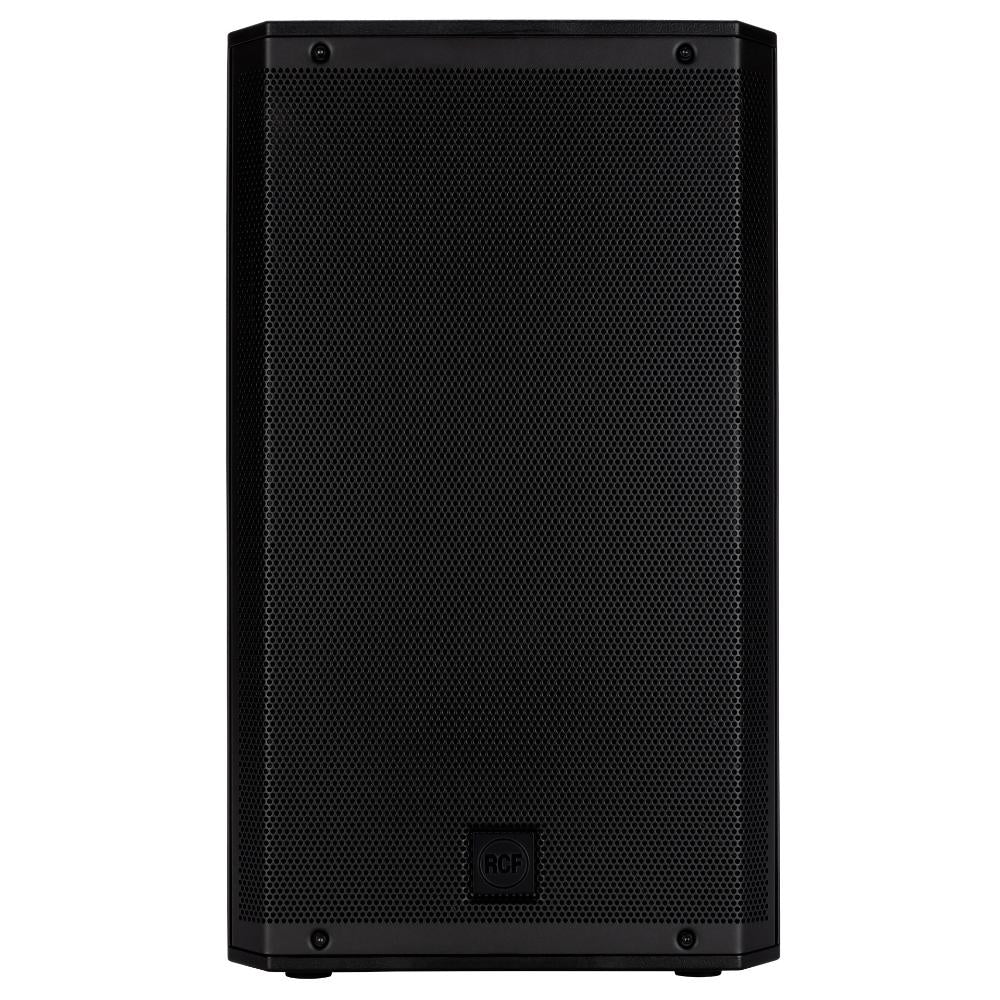

RCF ART-912A-AX

Active 2100W 2-way 12" Powered Speaker with Mixer & Bluetooth

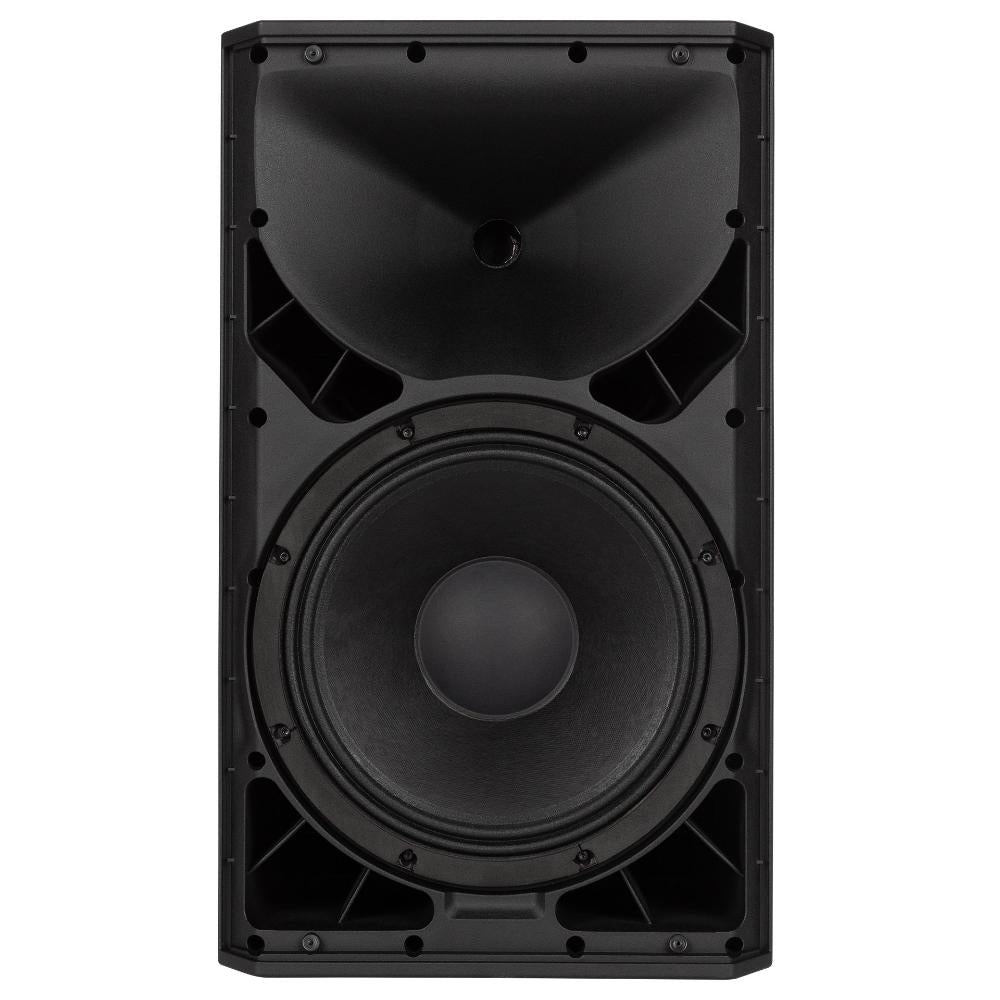

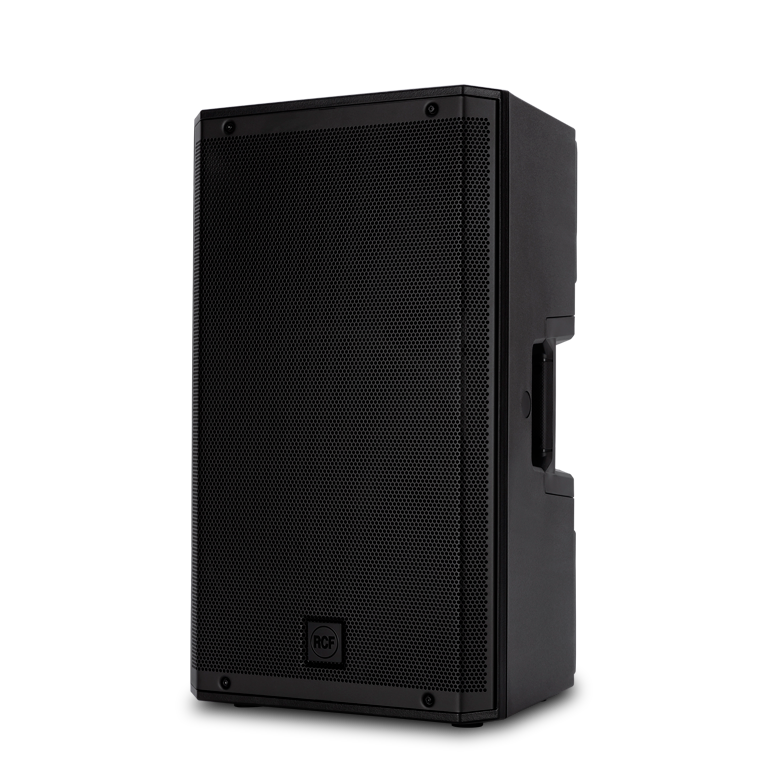

ART 912-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 12" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 130 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

Features:

• Built-in 6-channel Digital Mixer
• Advanced User Interface w/ touch panel and remote control
• 1.75" Compression Driver and 12" Woofery
• Up to 130 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• Dual combo preamp with 48V Power and Mini-jack stereo line input
• Bluetooth® stereo audio input, with dual speaker pairing option
• True Resistive Waveguide, FiRPHASE, and Bass Motion Control

Specifications:
ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 60°

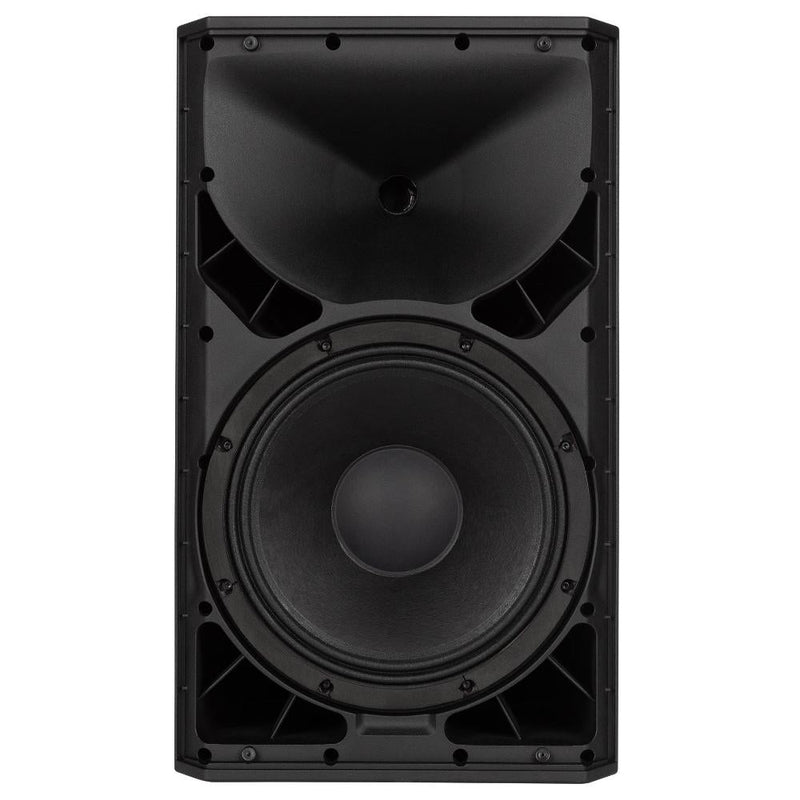

TRANSDUCERS

• Compression Driver: 1 x 1.0'', 1.75'' v.c
• Woofer: 12'', 2.5'' v.c

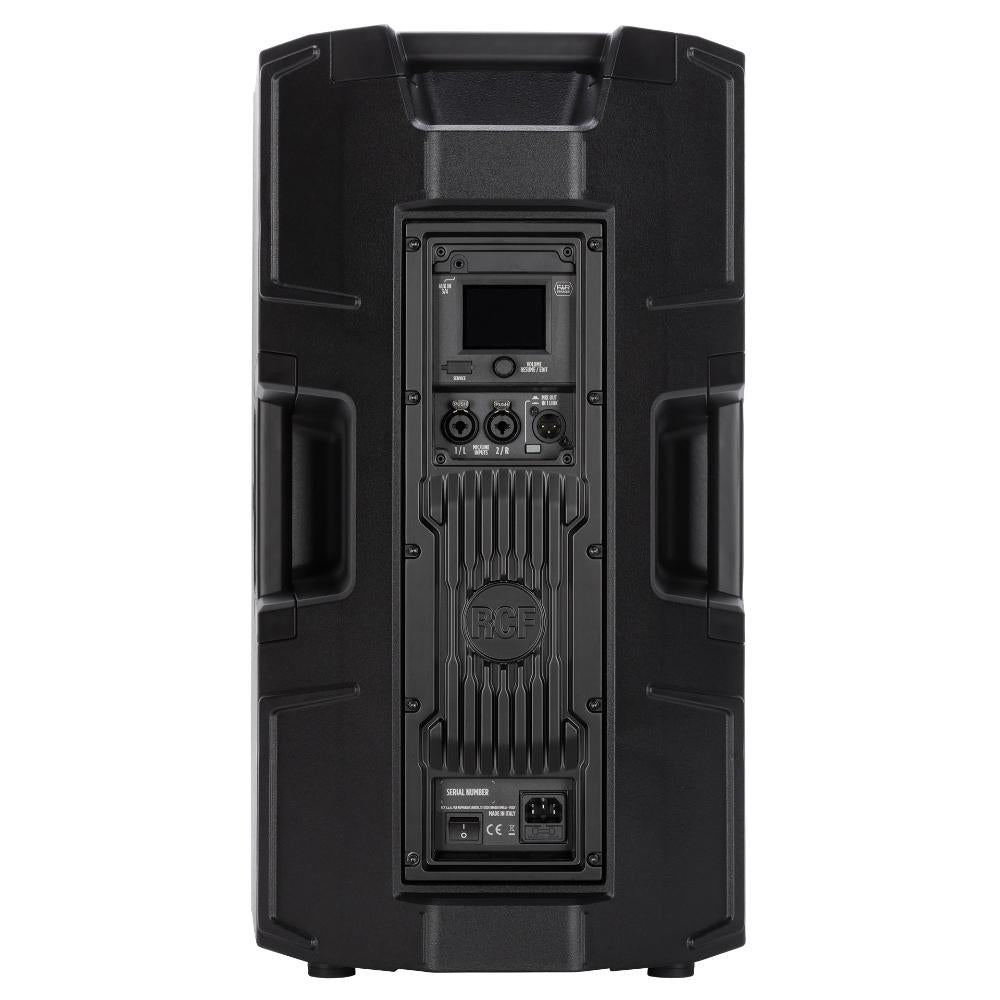

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR

PROCESSOR SECTION

• Crossover Frequencies: 1600Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.

POWER SECTION

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: VDE

ELECTRONIC SPECIFICATIONS

• Frequency Response: 20 Hz ÷ 20 Hz
• THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted

PROCESSING

• Processing Channels: 6
• Signal Processing: 24 Bit
• A/D-D/A conversion: 32 Bit @ 48.0 kHz
• Dynamic range: 110

INPUTS

• Mic: 2
• Remote Controlled Storable Gain: Yes
• Gain Range: 0 dB ÷ 42 dB
• Input Noise Level: -114 dBu A-Weighted
• Mic Inputs Impedance: 6 kohm
• Low Cut: 20 Hz ÷ 400 Hz
• Phantom Power +48V: Yes
• Mono Line: 2
• Gain Selection: 0 dB ÷ 22 dB
• Line Input Impedance: 21 kohm
• A/D Dynamic range: 114 dB
• Stereo Line: 1
• Gain Selection: 0 dB ÷ 10 dB
• Stereo Line Input Impedance (kOhm): 13 kohm

OUTPUTS

• Main MIX: 1

OUTPUTS SPECIFICATIONS

• Main Out Impedance: 150 ohm
• Main Out Level: 22 dBu
• D/A Dynamic Range: 114 dB

COMPRESSORS

• RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs.

EQ

• Input Channels EQ: 2 Shelving 1
• Description: 3 Band EQ: High and Low band shelving, MID band peak on IN | 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output,

INTERNAL EFFECTS

• Send Effects: 1

MASTERING PROCESSORS

• Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Hardware: 1 x M10 top, 1 x M10 each side

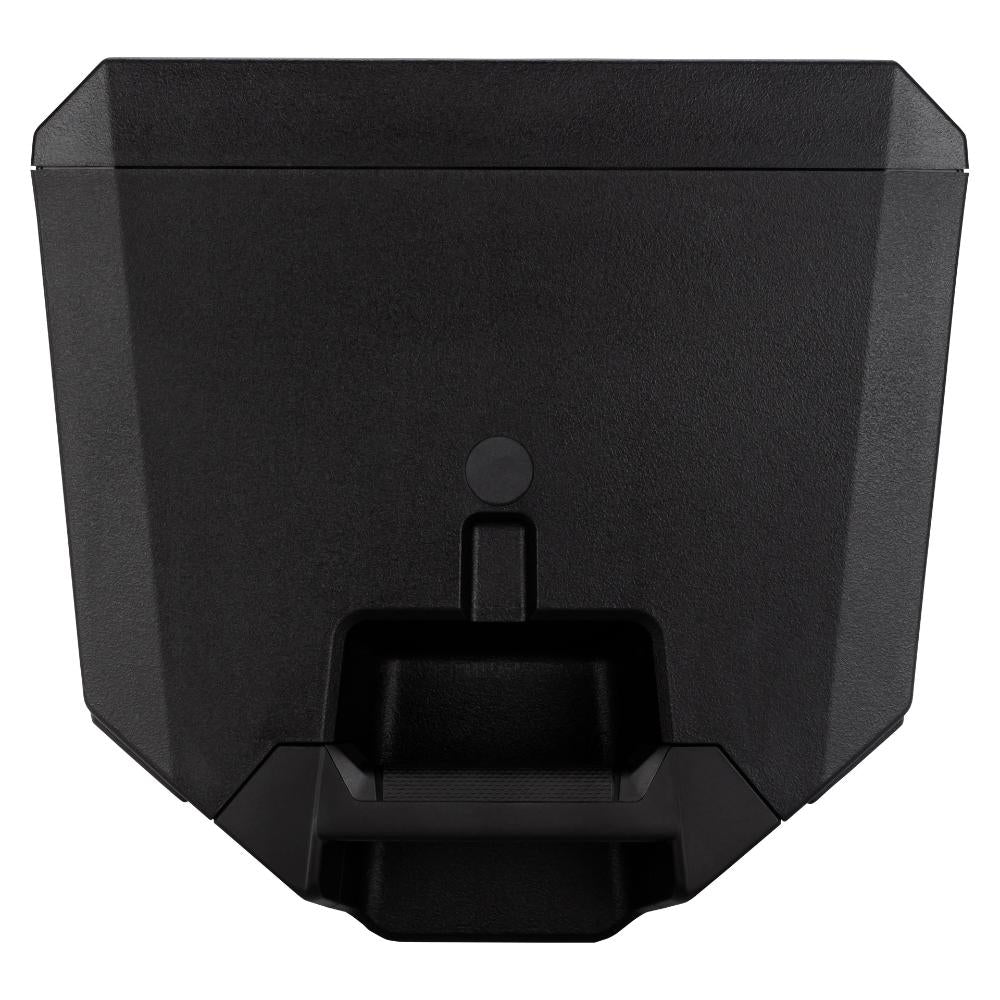

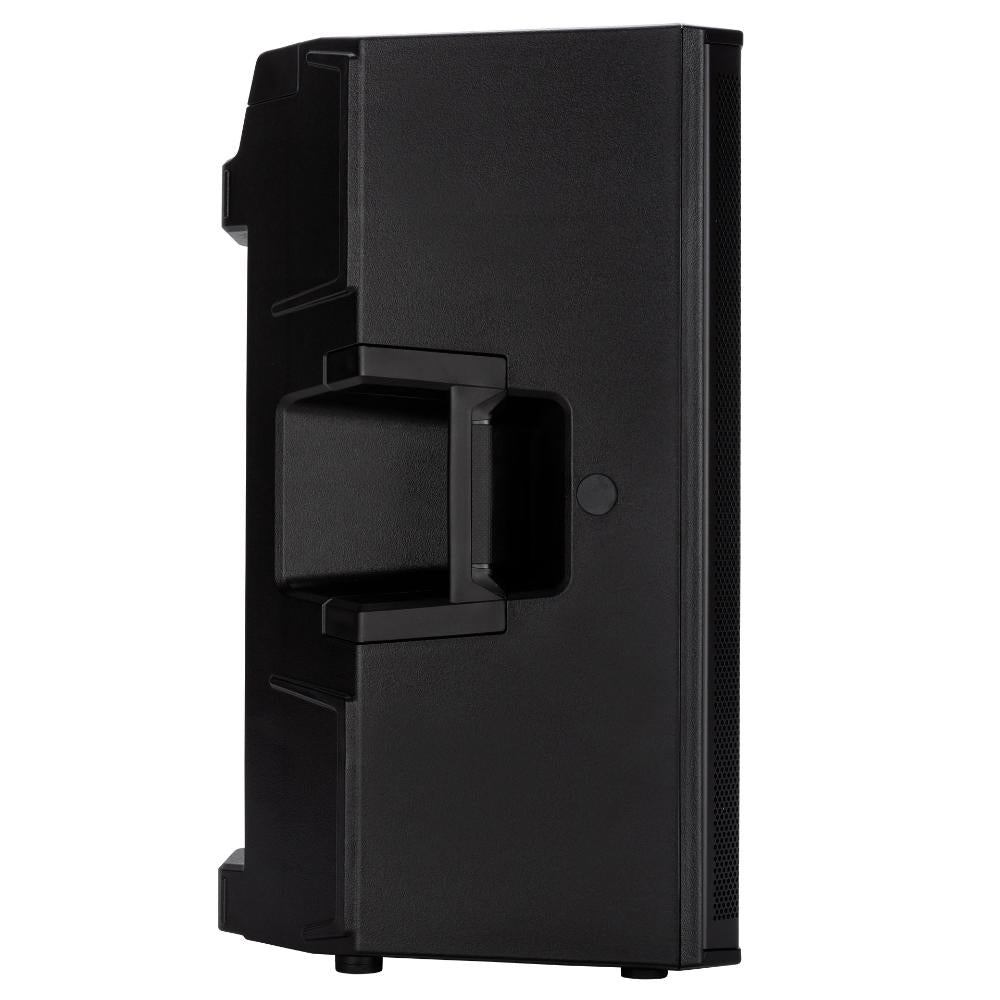

• Handles: 1 top, 1 each side

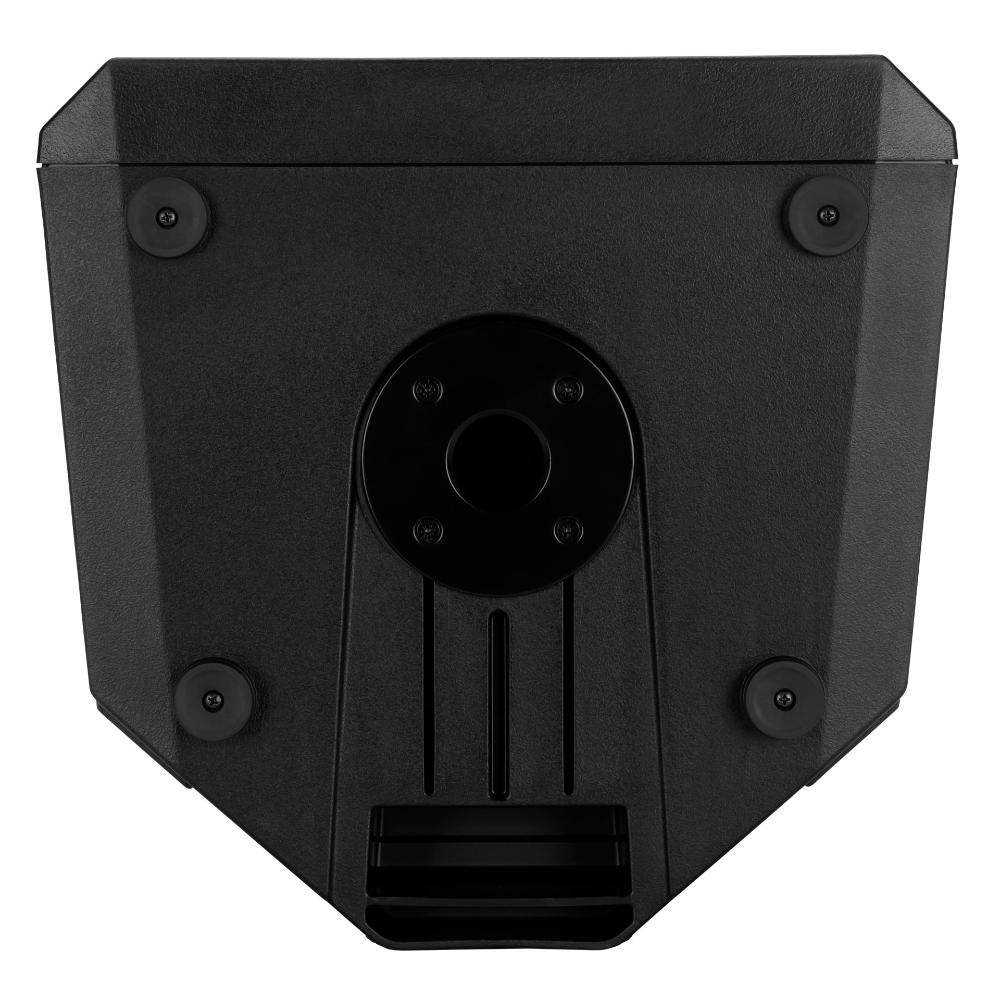

• Pole mount/Cap: Yes
• Color: Black

SIZE

• Height: 642 mm / 25.28 inches
• Width: 370 mm / 14.57 inches
• Depth: 363 mm / 14.29 inches
• Weight: 19.8 kg / 43.65 lbs
