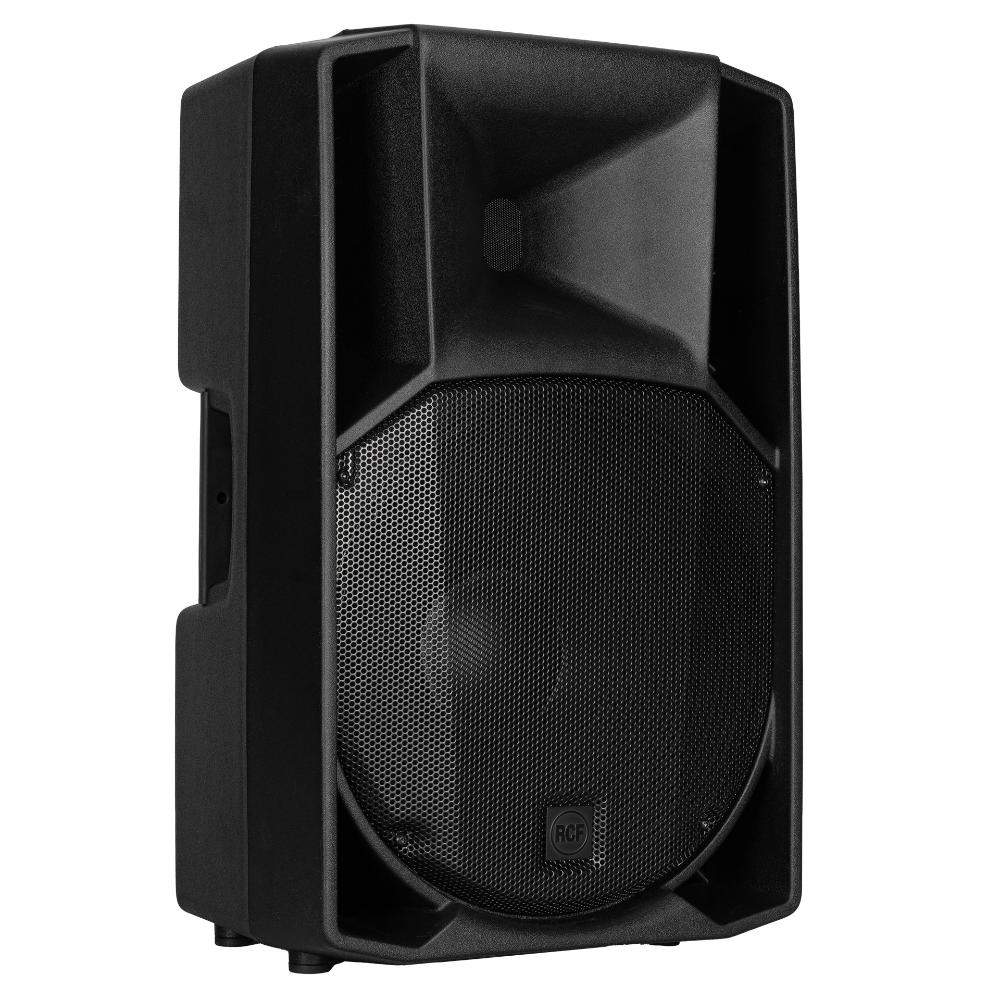

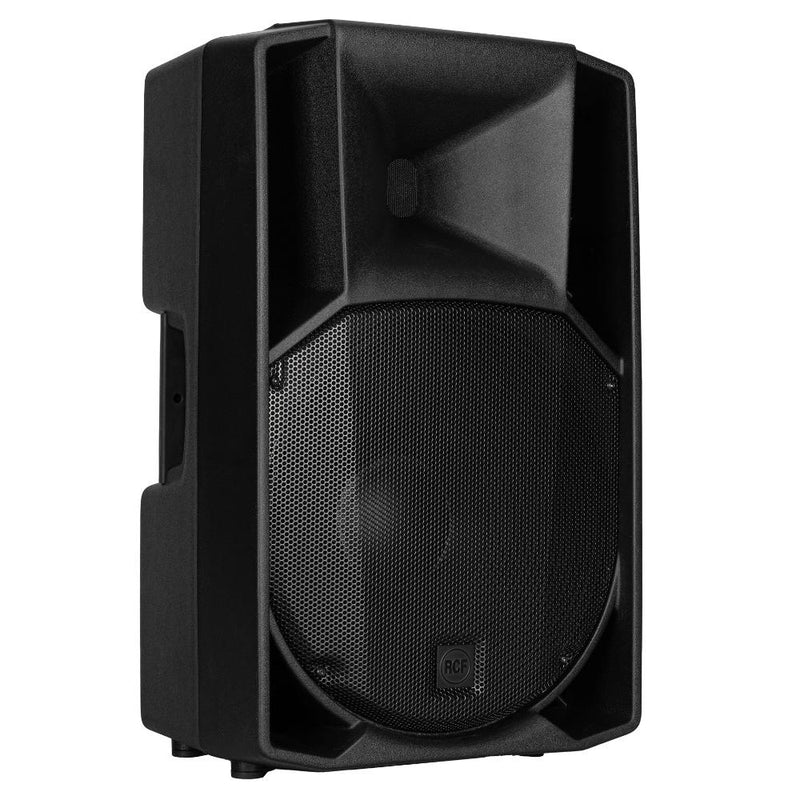

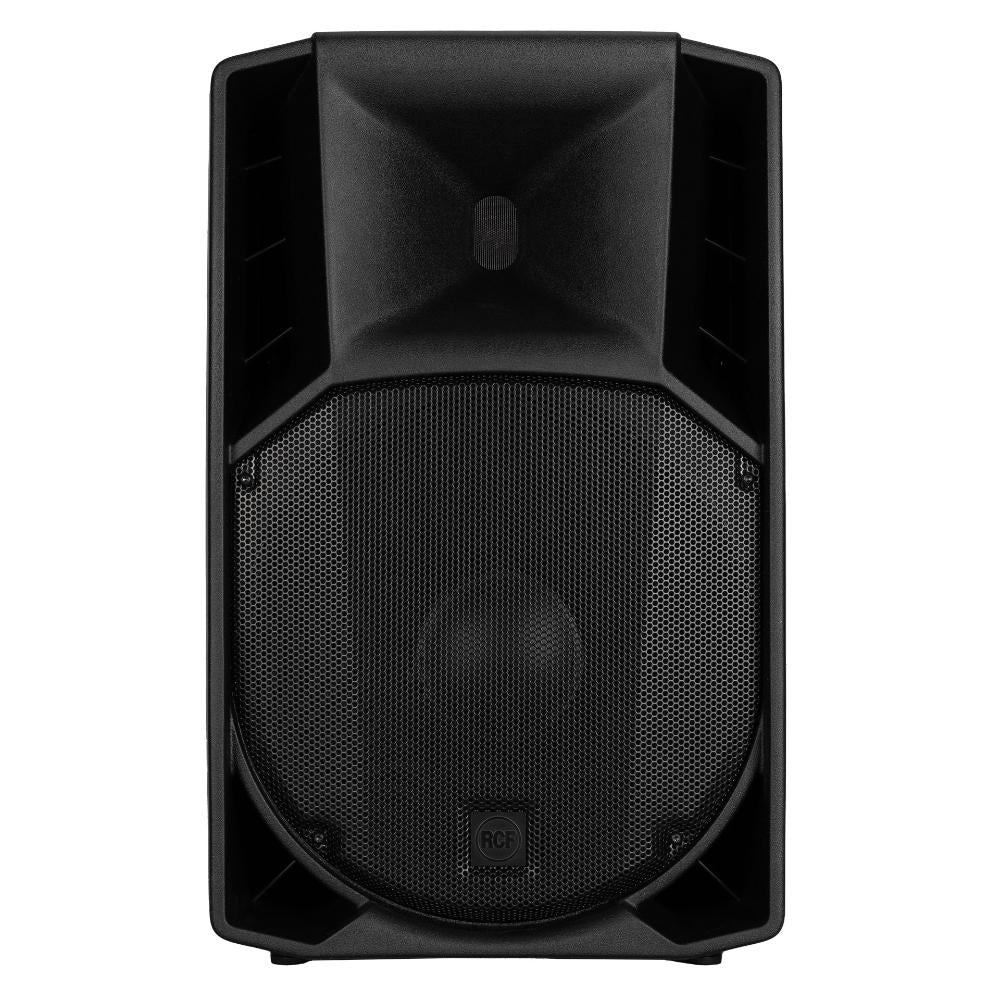

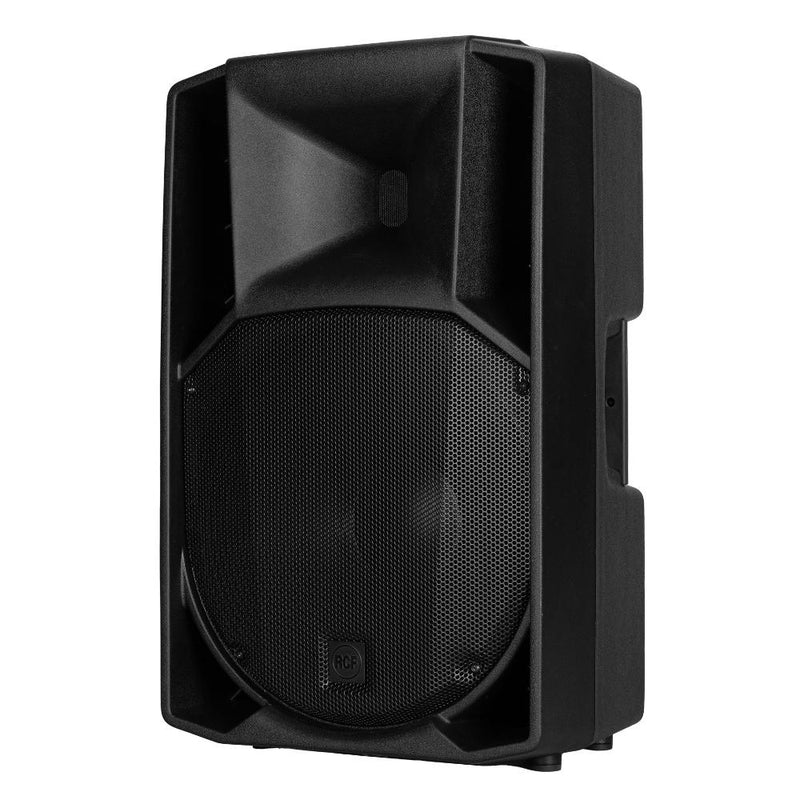

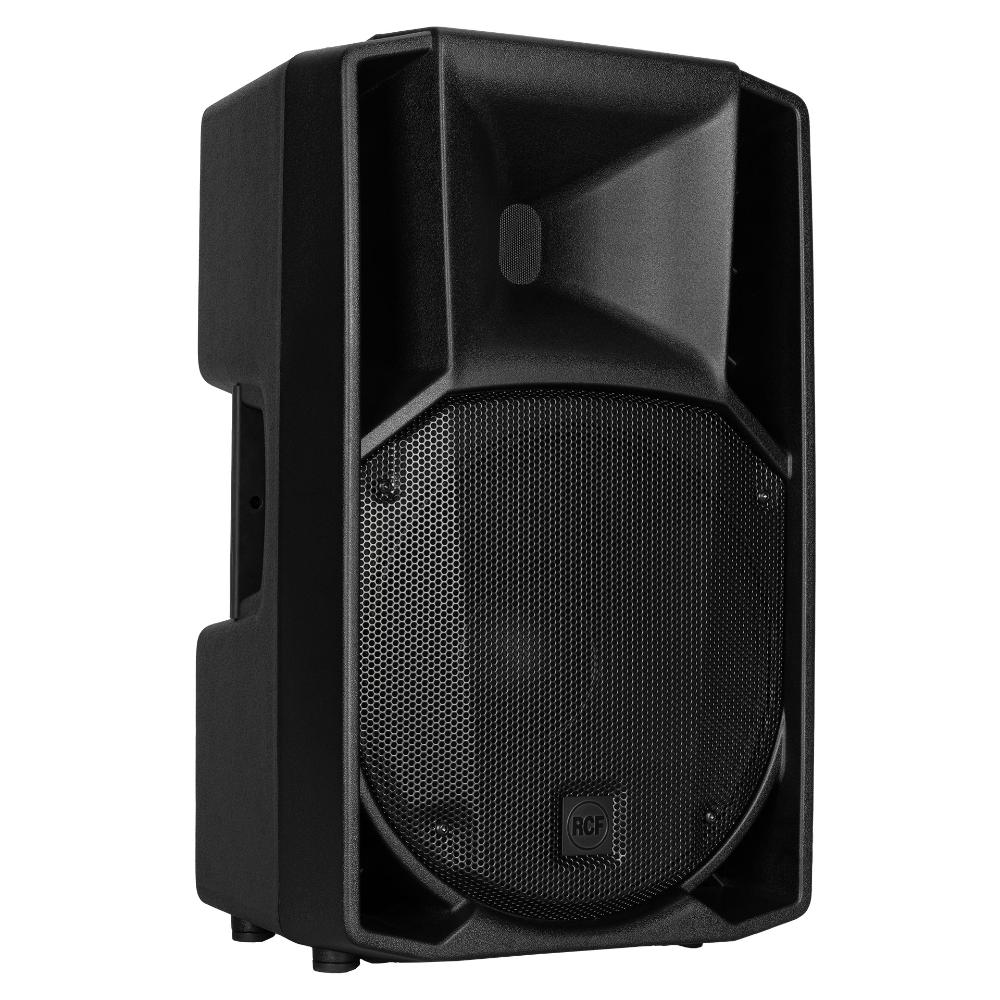

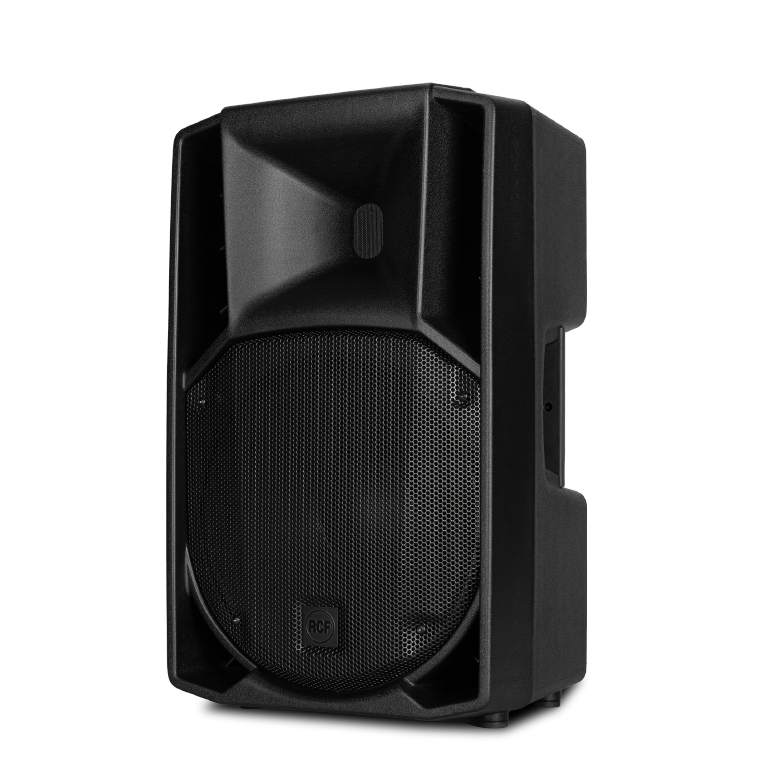

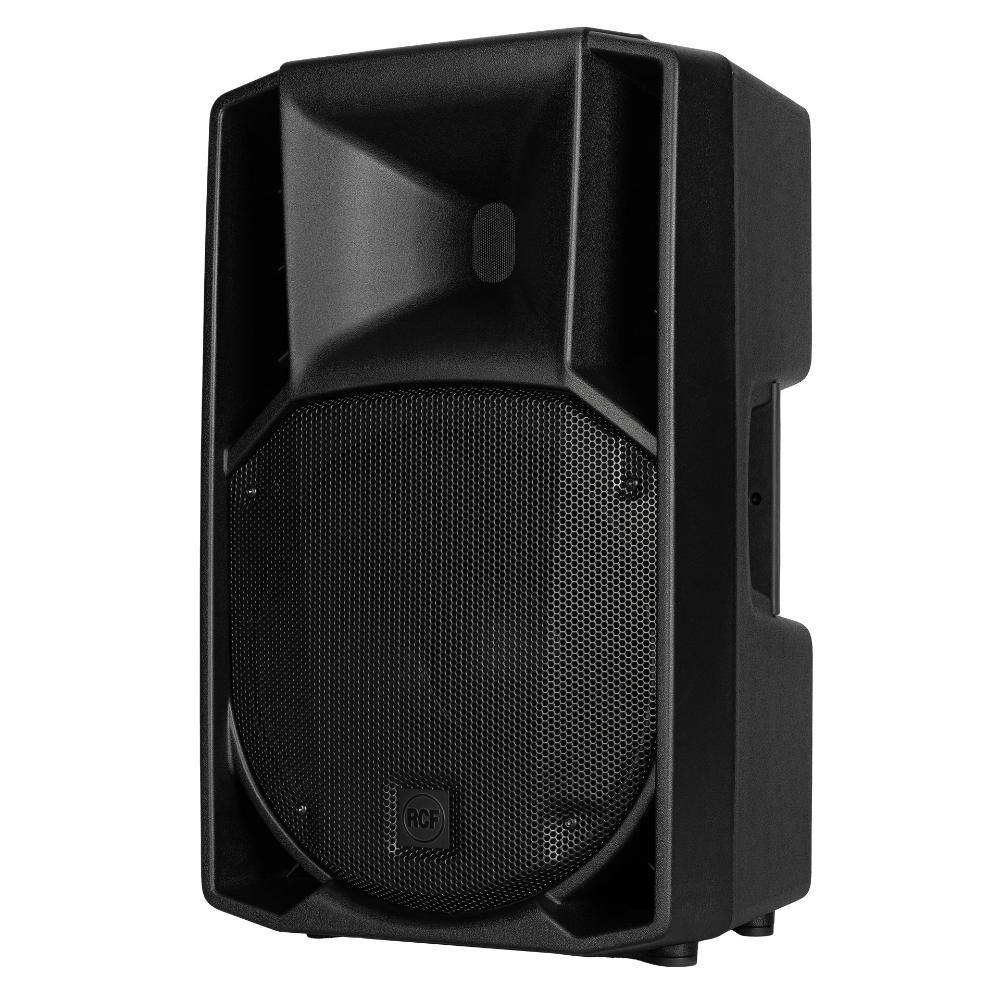

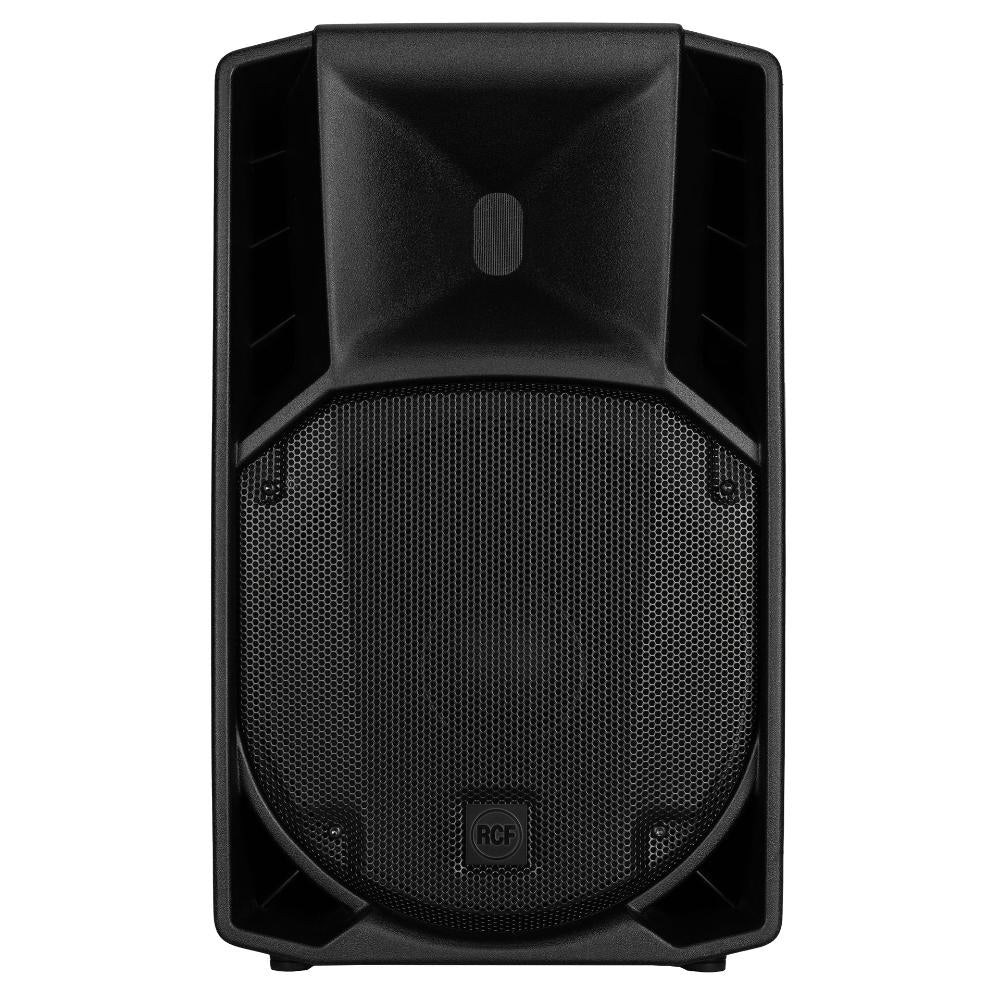

ART 745-A MK5 | ACTIVE TWO-WAY SPEAKER | Technical Specifications | 133 dB Max SPL | 1400 WATT 2-way peak power | 90° x 60°, Wide dispersion constant directivity horn
Technical Specifications
| Acoustical specifications |
| Frequency Response |
45 Hz - 20000 Hz |
| Max SPL @ 1m |
133 dB |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
60° |
| Transducers |
| Compression Driver |
1 x 1.4'' neo, 4.0'' v.c |
| Woofer |
1 x 15'' neo, 3.5'' v.c |
| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Mic. Input Sensitivity |
-32 dBu |
| Processor section |
| Crossover Frequencies |
650 |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Volume, Boost, MIC/Line |
| Power section |
| Total Power |
1400 W Peak |
| High frequencies |
400 W Peak |
| Low frequencies |
1000 W Peak |
| Cooling |
Convection |
| Connections |
| VDE |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
2 x M10 |

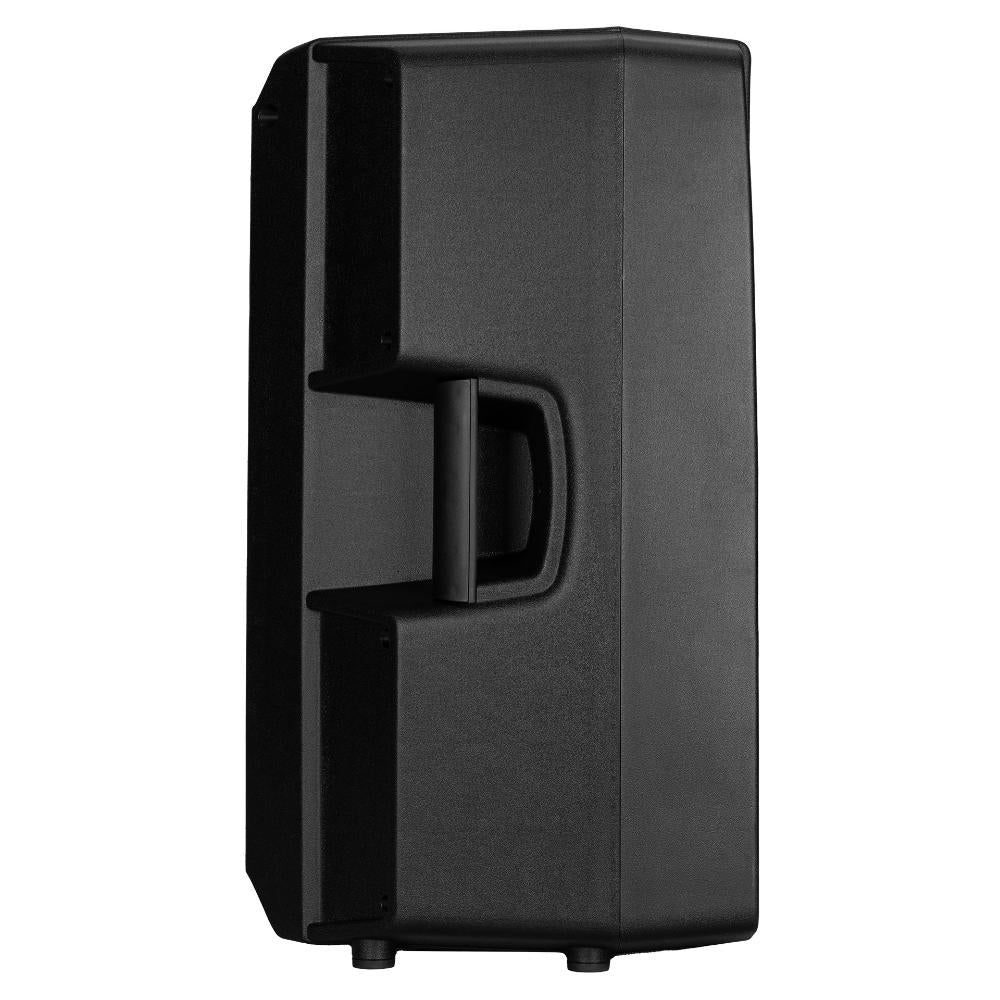

| Handles |
1 on top, 1 each side |

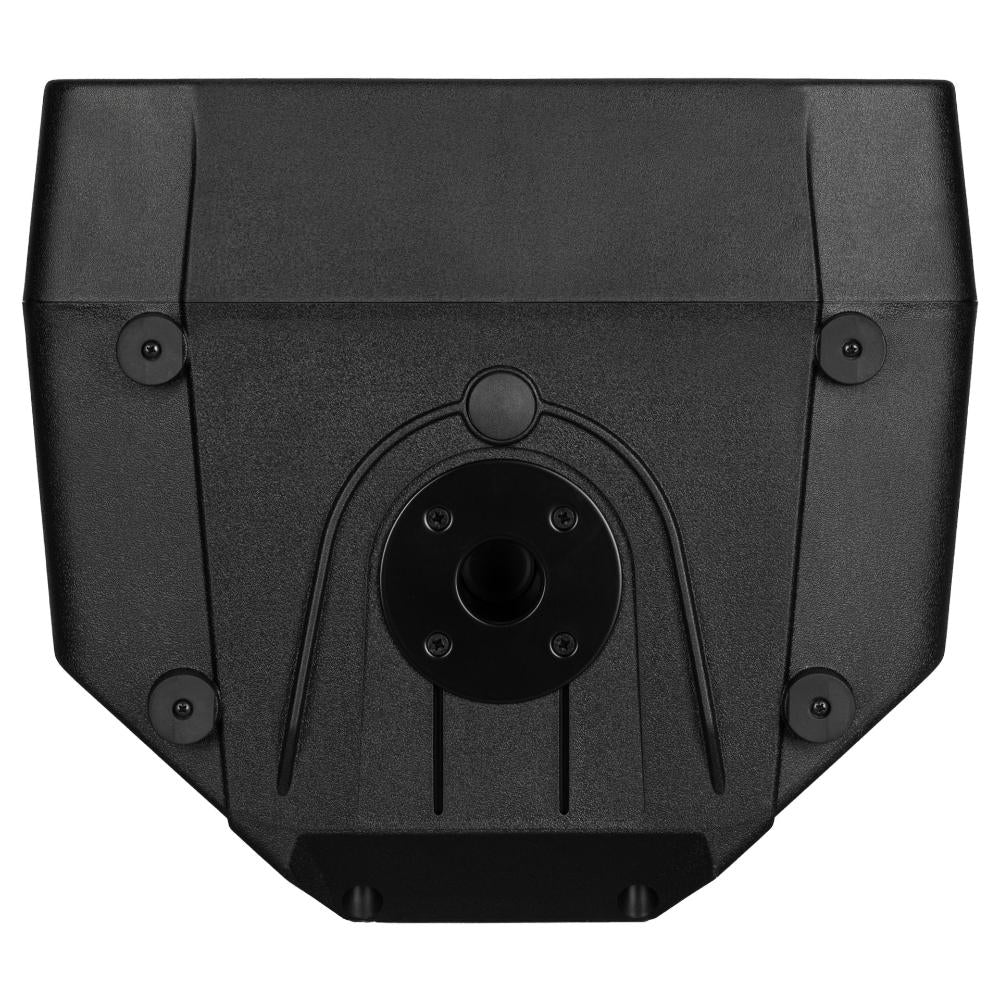

| Pole mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
708 mm / 27.87 inches |
| Width |
437 mm / 17.2 inches |
| Depth |
389 mm / 15.31 inches |
| Weight |
18.8 kg / 41.45 lbs |
| Shipping information |
| Package Height |
750 mm / 29.53 inches |
| Package Width |
500 mm / 19.69 inches |
| Package Depth |
440 mm / 17.32 inches |
| Package Weight |
22 kg / 48.5 lbs |
