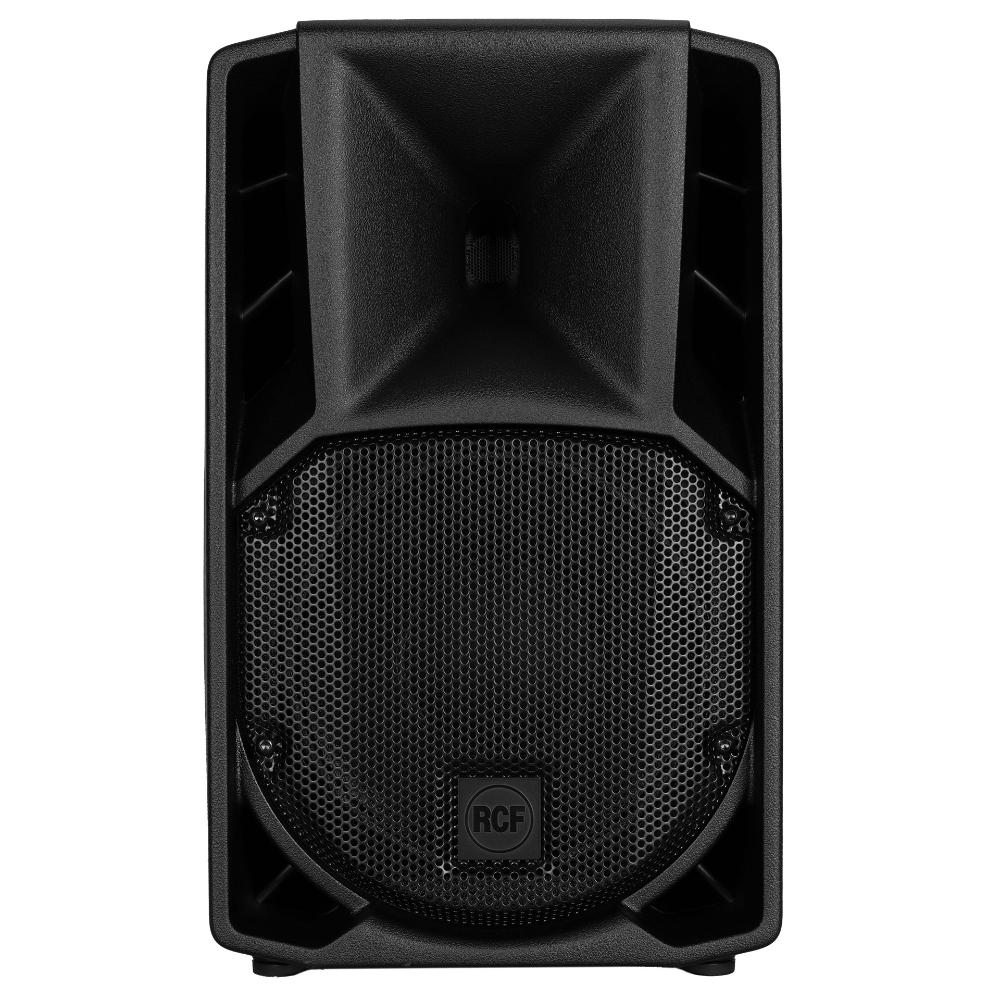

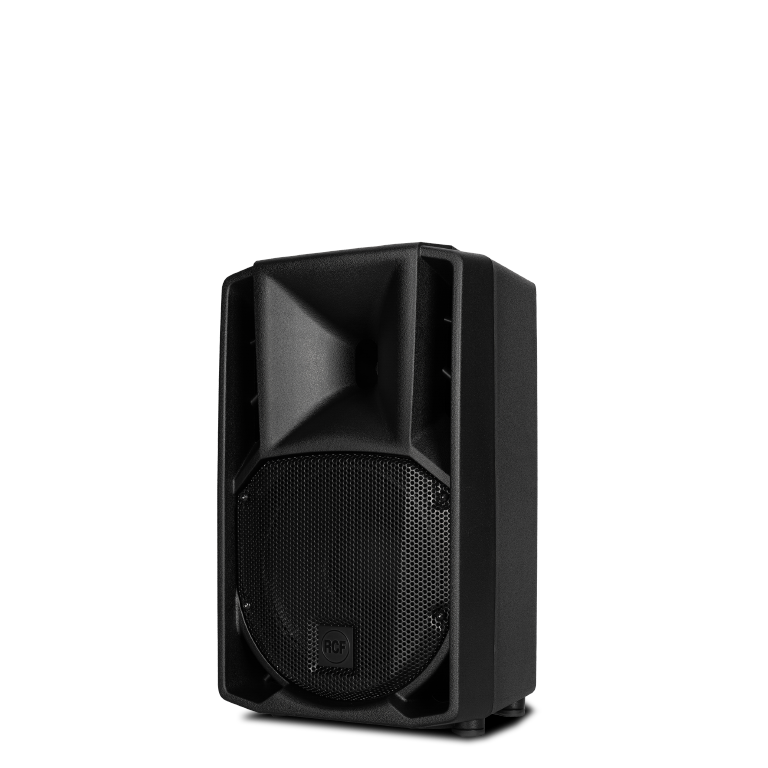

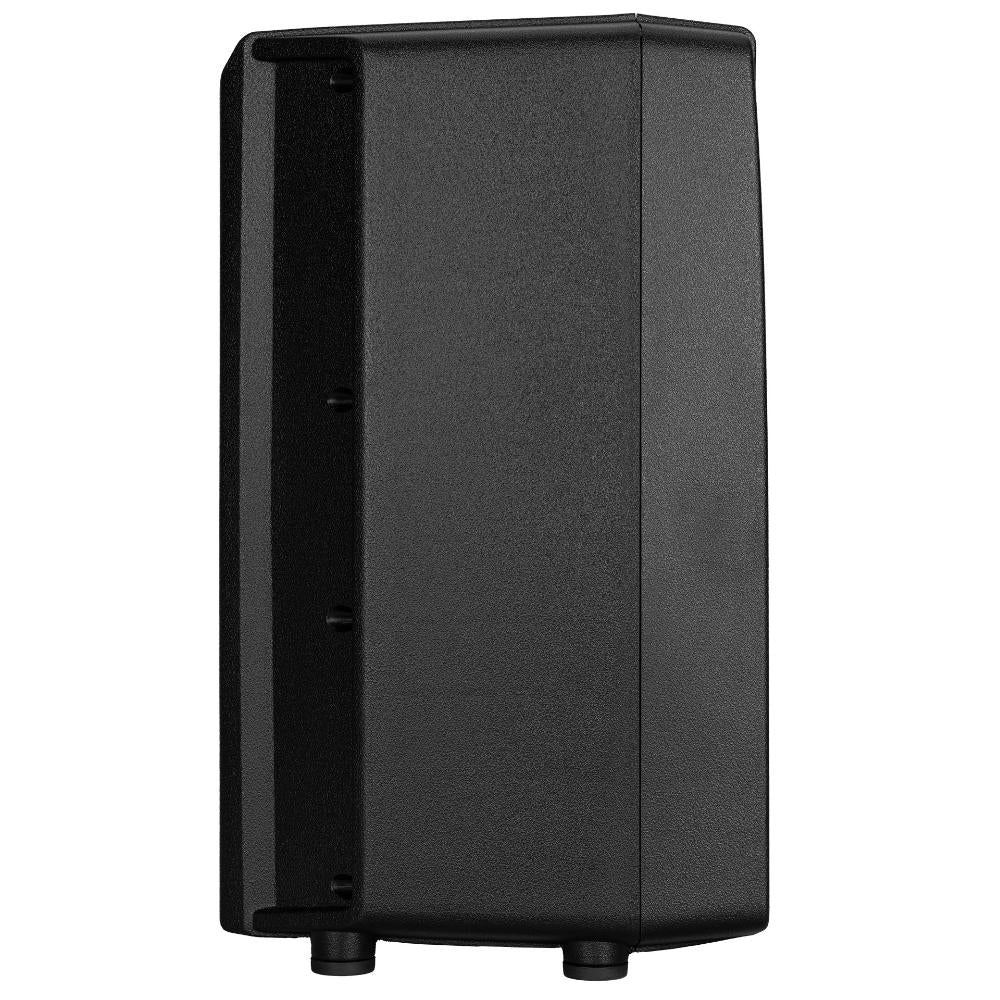

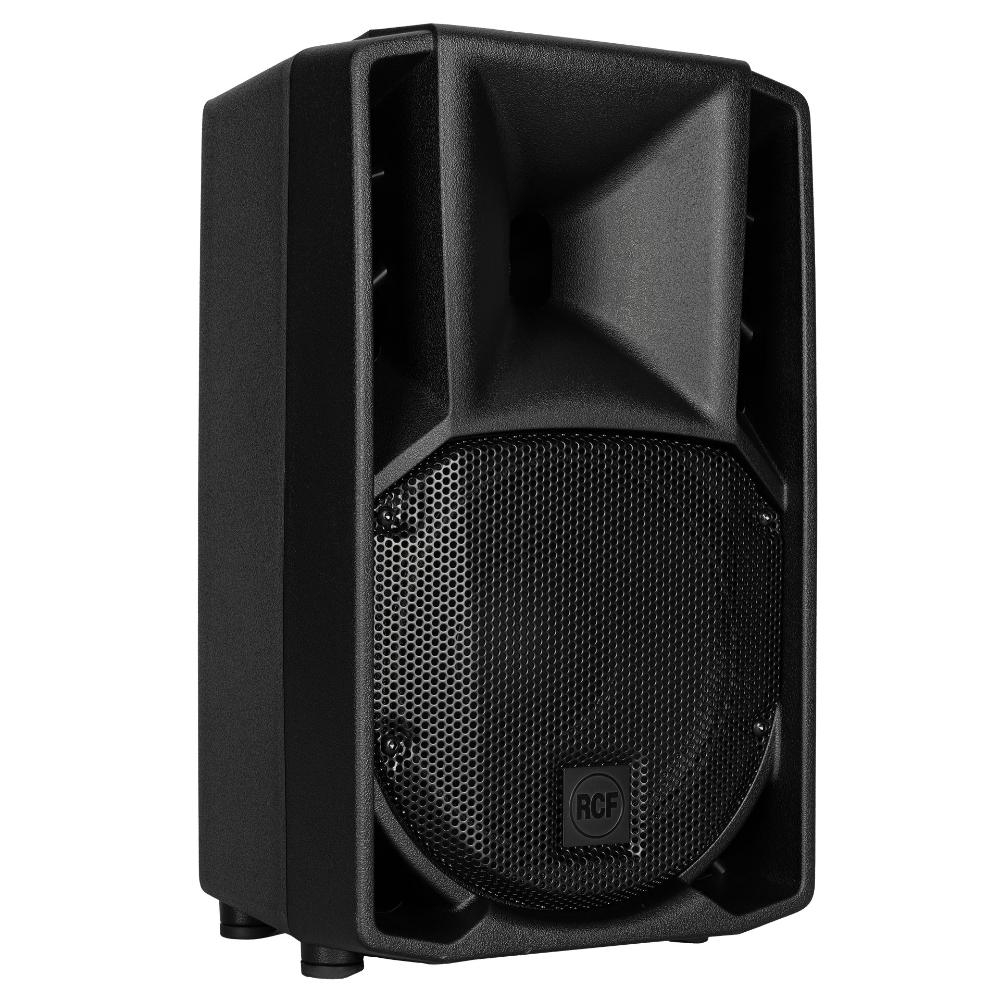

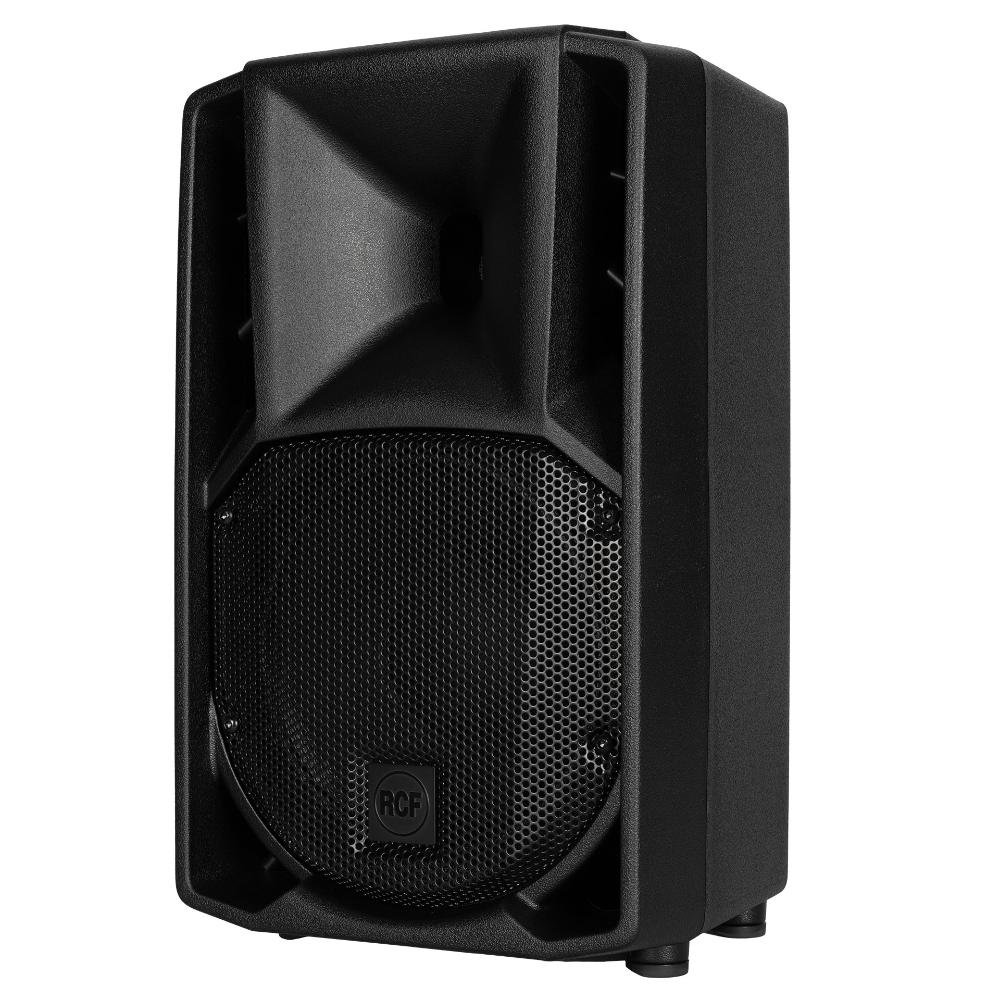

ART 708-A MK5 | ACTIVE TWO-WAY SPEAKER | Technical Specifications | 128 dB Max SPL | 1400 WATT 2-way peak power | 90° x 70°, Wide dispersion constant directivity horn
Technical Specifications
| Acoustical specifications |
| Frequency Response |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal coverage angle |
90° |
| Vertical coverage angle |
70° |
| Transducers |
| Compression Driver |
1 x 1.0'', 1.4'' v.c |
| Woofer |
1 x 8'', 2.0'' v.c |

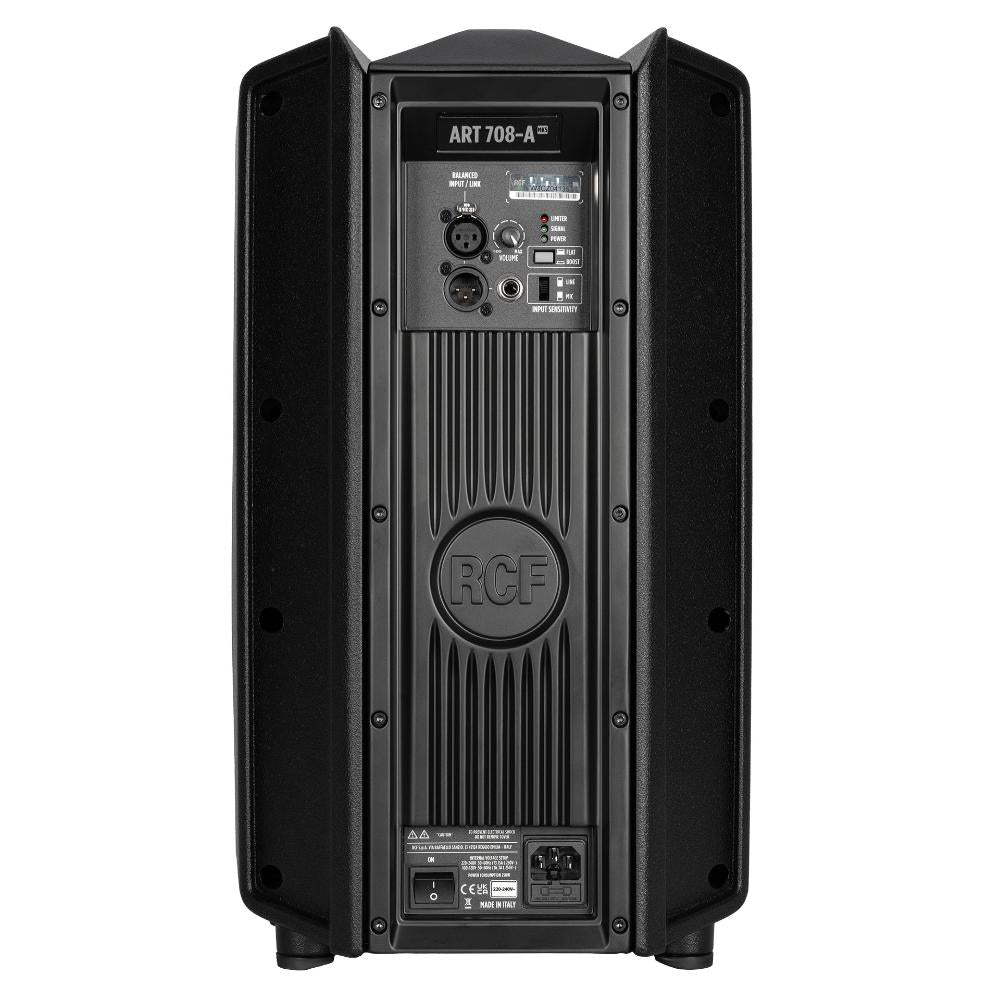

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
XLR, Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Mic. Input Sensitivity |
-32 dBu |
| Processor section |
| Crossover Frequencies |
1600 |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
| Volume, Boost, MIC/Line |
| Power section |
| Total Power |
1400 W Peak |
| High frequencies |
400 W Peak |
| Low frequencies |
1000 W Peak |
| Cooling |
Convection |
| Connections |
| VDE |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
2 x M10 |

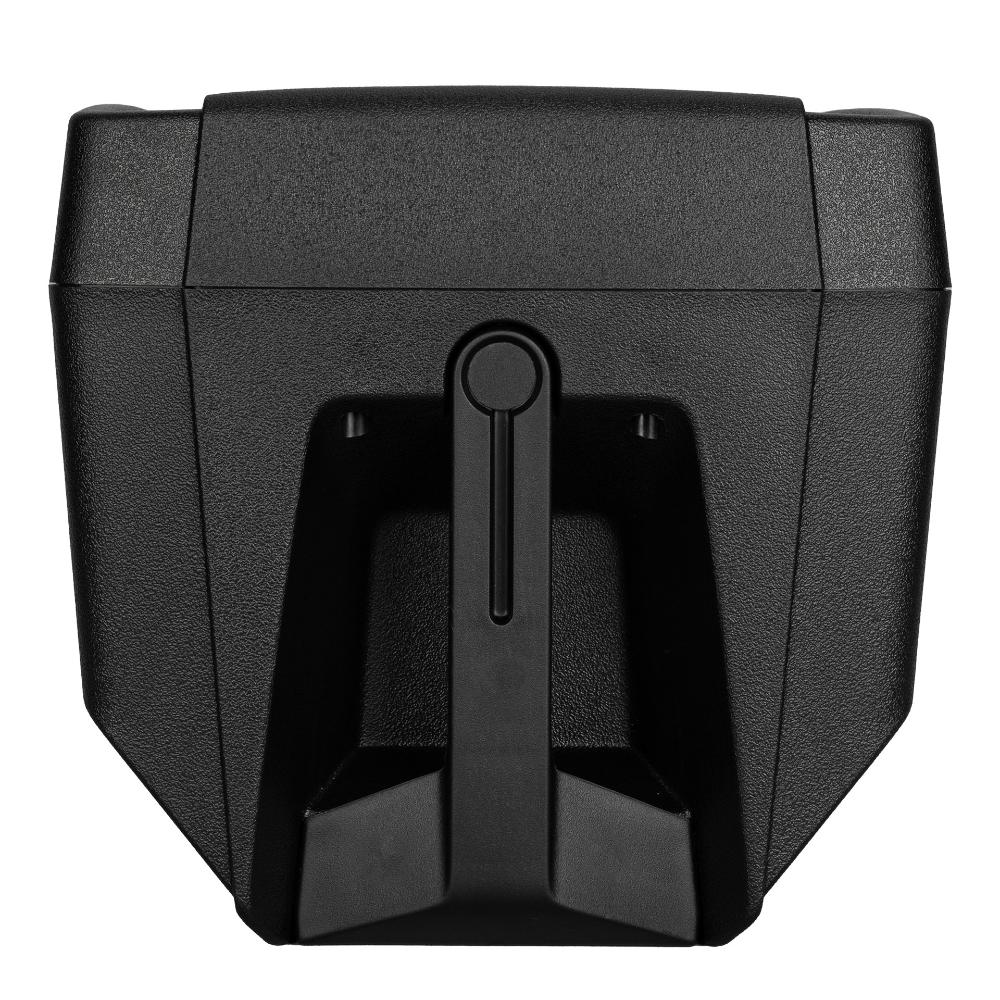

| Handles |
1 on top |

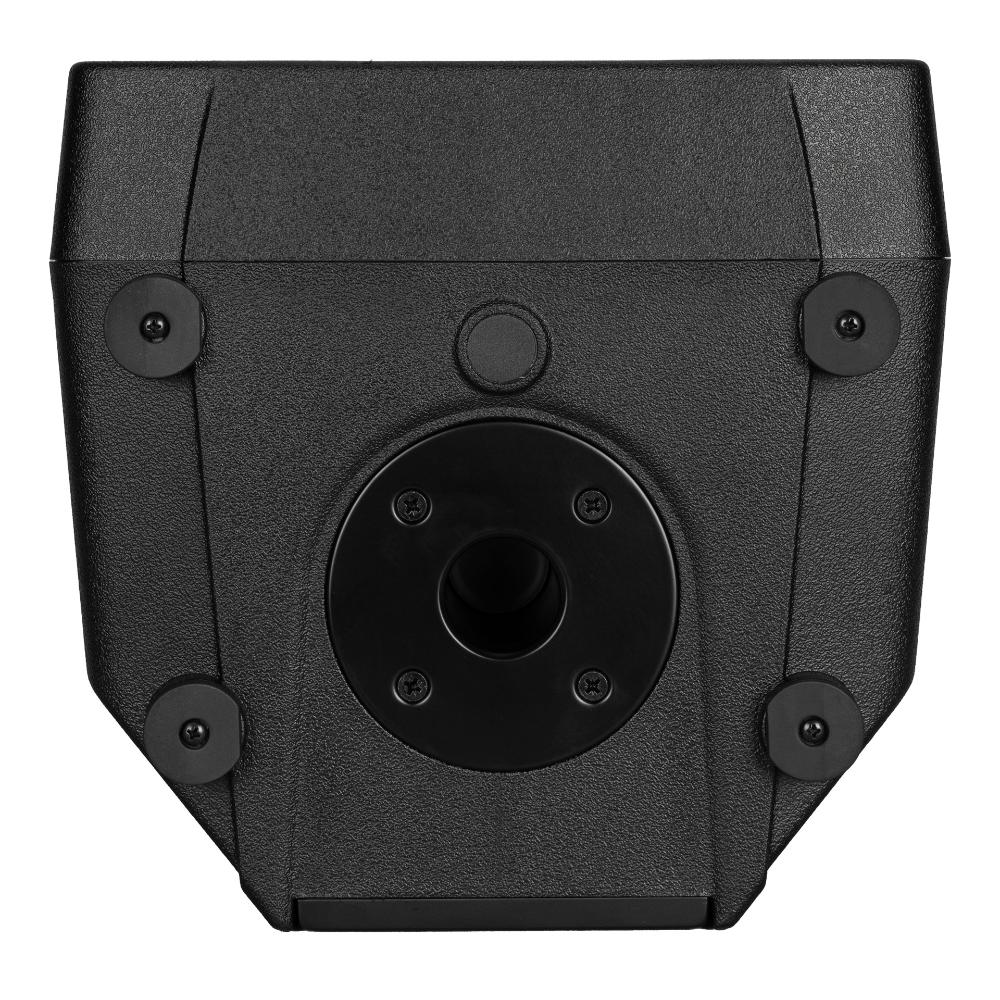

| Pole mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
480 mm / 18.9 inches |
| Width |
291 mm / 11.46 inches |
| Depth |
276 mm / 10.87 inches |
| Weight |
10.4 kg / 22.93 lbs |
| Shipping information |
| Package Height |
520 mm / 20.47 inches |
| Package Width |
331 mm / 13.03 inches |
| Package Depth |
346 mm / 13.62 inches |
| Package Weight |
12.2 kg / 26.9 lbs |
