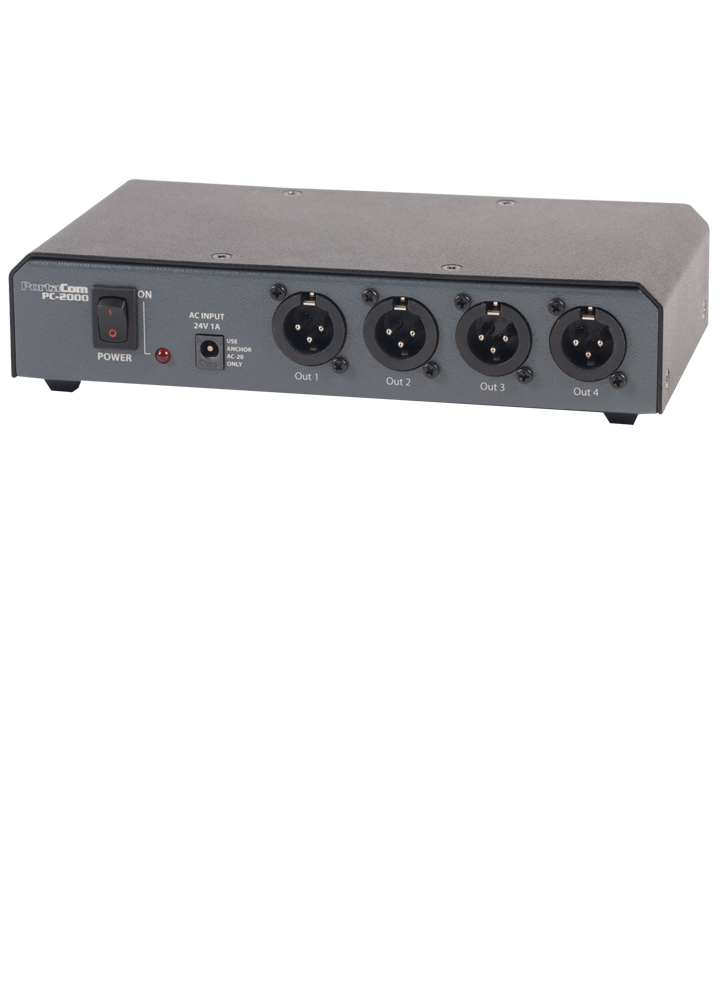

Anchor Audio PC-2000, Portacom power console

The PC-2000 is the power console for the PortaCom wired intercom system.

Features:

Output Connectors: Four 3-pin XLR male

Voltage Output: 22 VDC to beltpacks

Maximum Current Capacity: 400 mA

Maximum Quantity of Beltpacks: 20 BP-2000 beltpacks

Input Power Reqs.: 24VAC, 50/60Hz, 750mA, 30-40VDC, 500mA

AC Power Adapter: AC-20

Dimensions (HWD): 1.75” x 8.5” x 4.5” (4.45 x 21.6 x 10.2 cm)

Weight: 3.6 lbs / 1.6 Kg



If you'd like to rack mount your power console, Anchor recommends the RM-100.
