Description

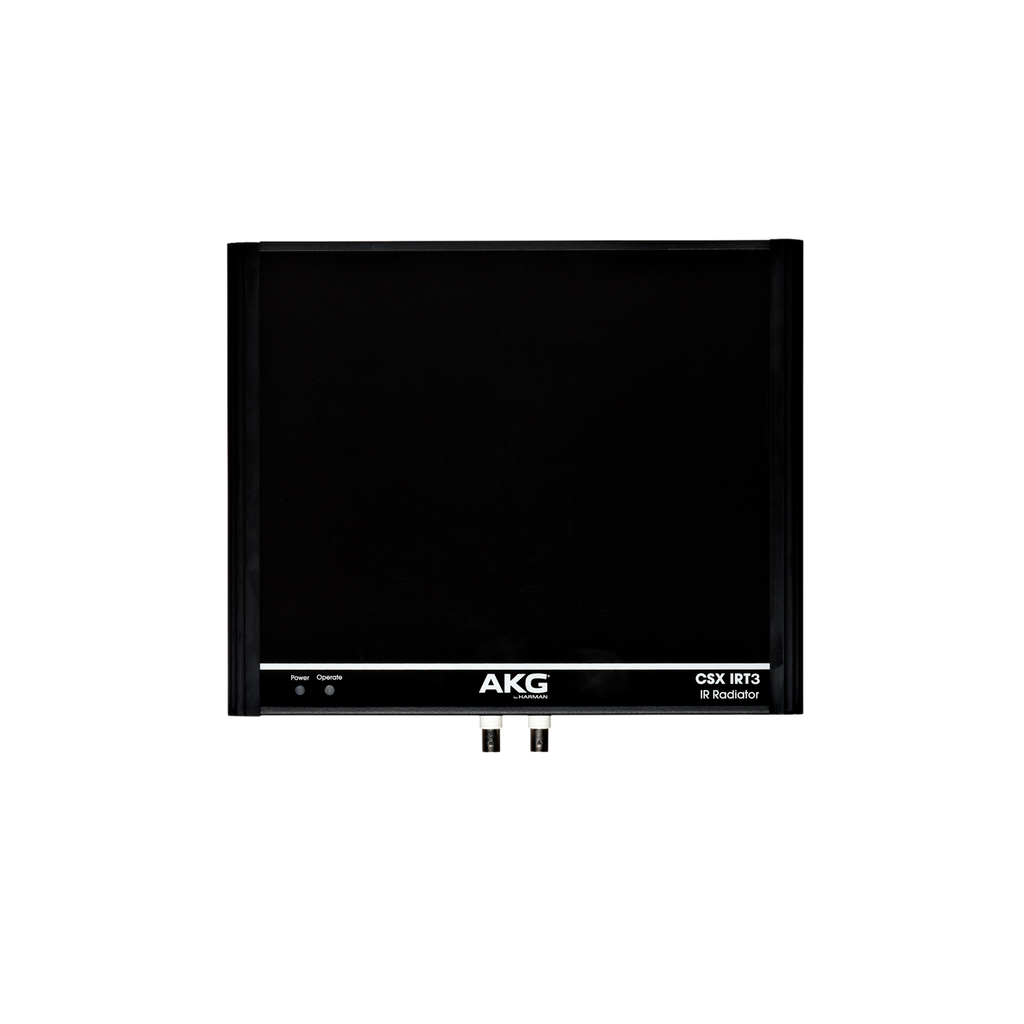

The CSX IRT3 and CSX IRT4 are 10 channel infrared transmitter. Using digital PPM signal always all LED´s cover the same area and distance, regardless the number of channels needed in an application ensuring perfect coverage even with changing channel needs. The CSX IRT3 and 4 can be cascaded almost without limit due to a signal refresher built into all transmitters. Even very large areas can be covered. The transmitters are designed in a way that no cooling fans are needed - they act absolute quiet without any noise. Clearly visible LED´s indicate the status from the distance, providing highest security for the technician on site. The CSX IRT3 is the spotlight version with a light angle of +/-17° to cover distances up to 65m.
Features
- Digital Transmission with PPM technology
- Effective audio and radiation quality control - easy to install
- For CS5 or as standalone system
- Works with all kind of analogue inputs
- Elegant Design with Status LED
- Showing clearly the status
- Included signal refresher
- Cascadable to cover large areas
- Mounting bar
- For wall or ceiling mount
- 2 different light characteristics - flood and spot light
Specifications
- Number of languages: 10
- Width: 280 mm
- Height: 260 mm
- Depth: 70 mm
- Net Weight: 4000 g
- Body: metal
- Finish: matte black
- Powering Interface: Voltage
- 100 to 240 V: System Interface In
- Amount: 1
- Contacts: 2-pin
- Rated Impedance: 50 Ohms
- Type: BNC
- System Interface Out: Amount
- 1: Contacts
- 2-pin: Rated Impedance
- 50 Ohms: Type
