American Audio VMS5

Save $199.96
American AudioSKU: VMS595

Price:
Sale price$499.99 Regular price$699.95

Description

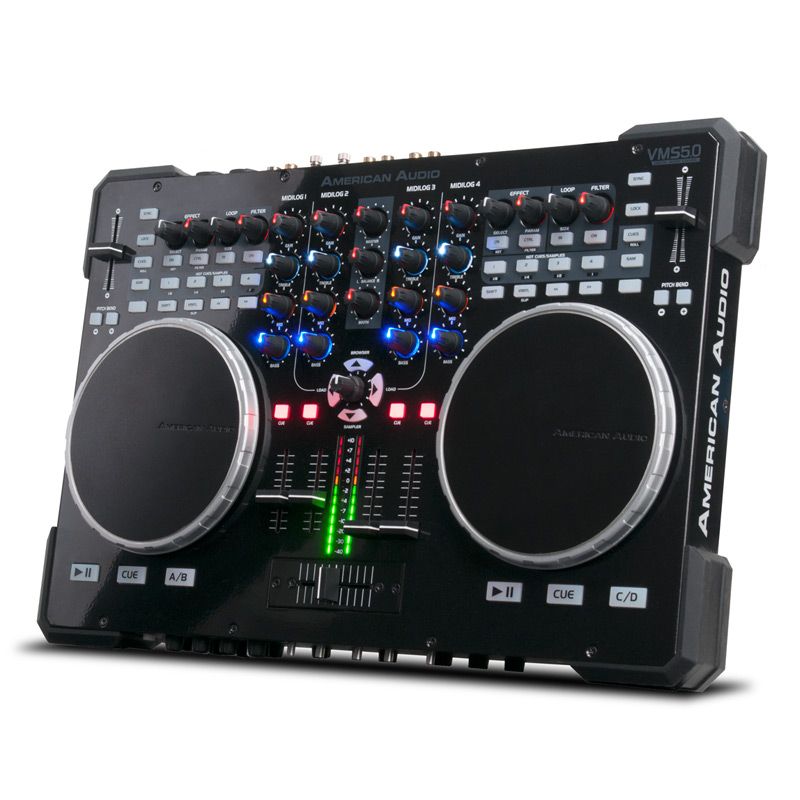

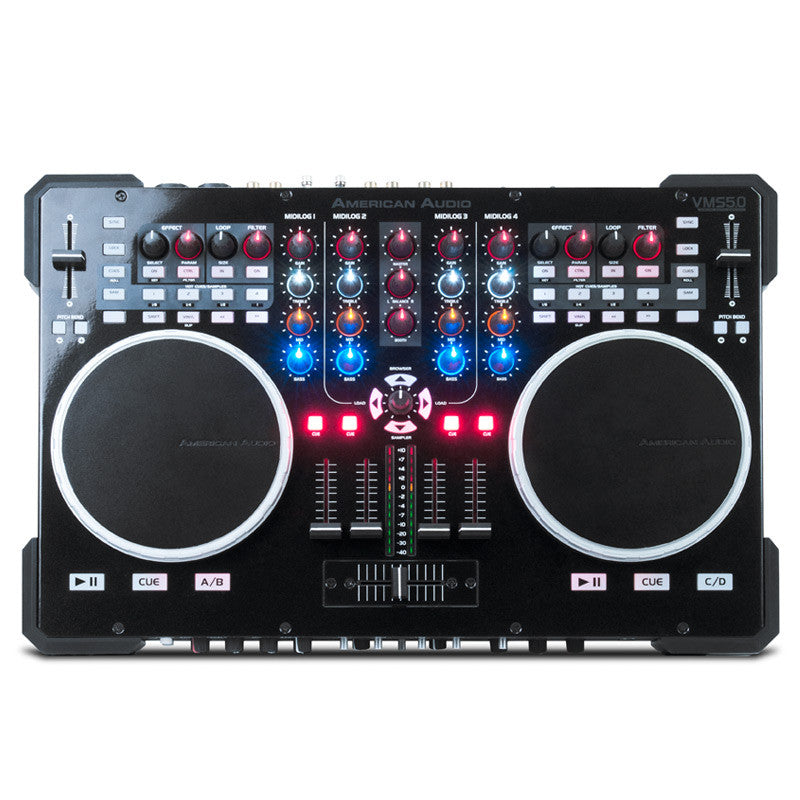

The lastet VMS Midi Controller from American Audio - the VMS5 is 6 channel stand alone Midi Controller with 2 Phono, 4 Line, 4 USB, 2 Microphone inputs

The American Audio VMS5 is one of the most comprehensive DJ Controller ever designed for performance minded DJs looking for a solid, all-in-one Midi Controller to control their software and music from their laptop (4 Deck and 2 Deck DVS!), plus have option to use the stand alone mixer as a tradition analog mixer with 4 line inputs, 2 Phono inputs and 2 Microphone inputs. In addition, some general features include 4 USB / Analog selectable Midilog (Midi & Analog) channels, gain/treble/mid/bass EQ on all MIDILOG channels.

Pro Features include:  The Inno-fader compatibility (the VMS Series was the first controls to offer this) with curve control and assign and reverse, XLR master output with Balance & Booth output. DSP D-Core inside with studio quality audio engineerinp + pro stage microphone circuitry.  It has 34 assignable rotary controllers, 4 assignable rotary encoders, 50 MIDI buttons with LED illuminations, including 18 with dual blue/red LEDs.

VMS 5 has 62 Assignable MIDI buttons and switches, dual 2000 point resolution touch sensitive turntable scratch controls, dual MIDI Controls on all buttons and switches, 5 assignable linear fader controllers, two 10-bit resolutions pitch sliders, and multi-functional rotary browser with 4 function buttons.



Specifications

GENERAL FEATURES:

  • Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
  • All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
  • On/Off soft startup and turnoff
  • Gain/treble/mid/bass EQ on all MIDILOG™ channels

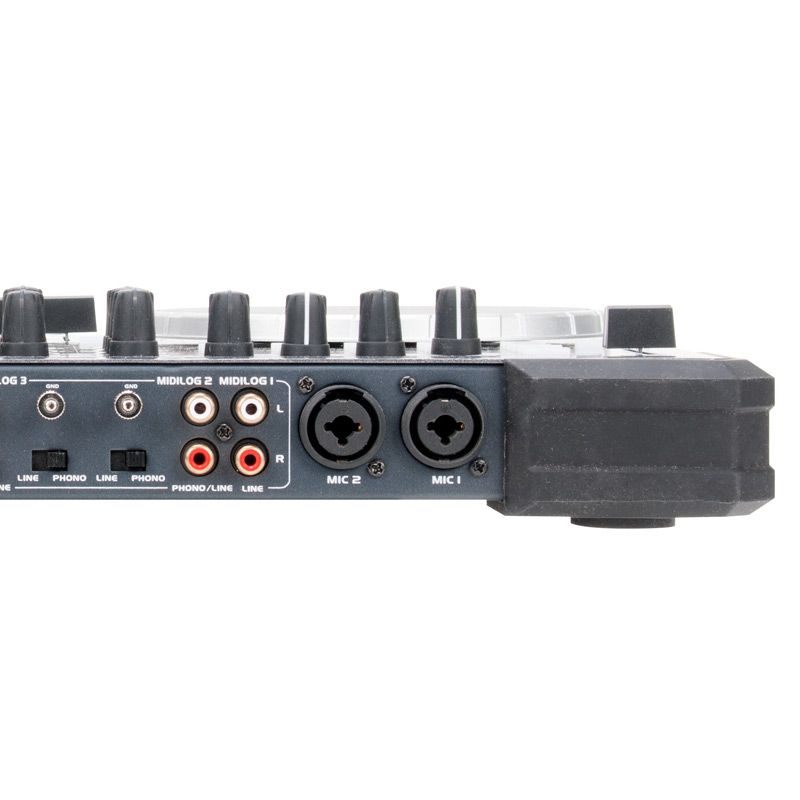

  • 2 phono/line selectable analog channels

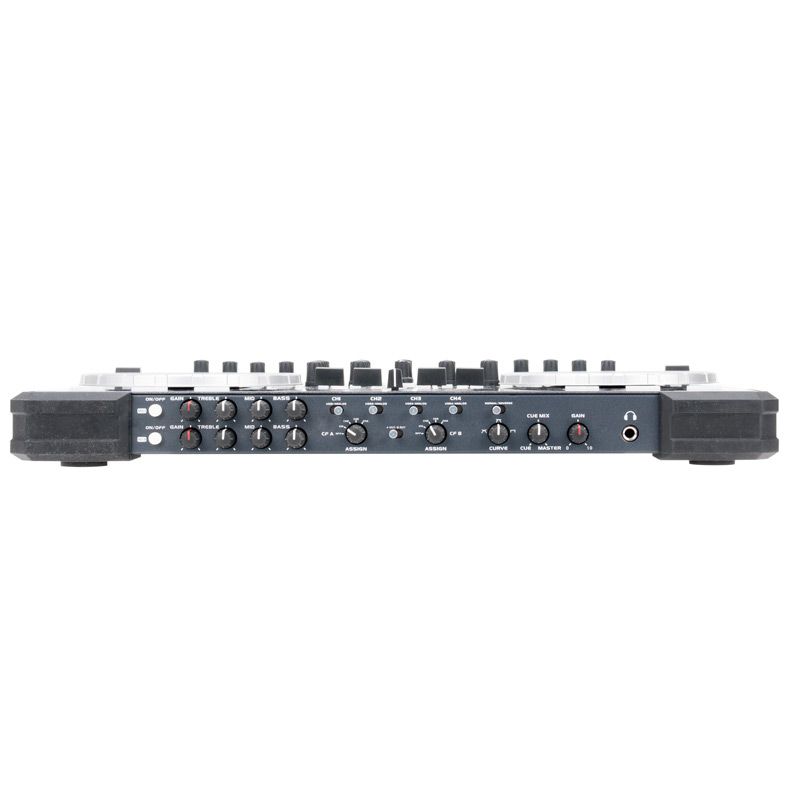

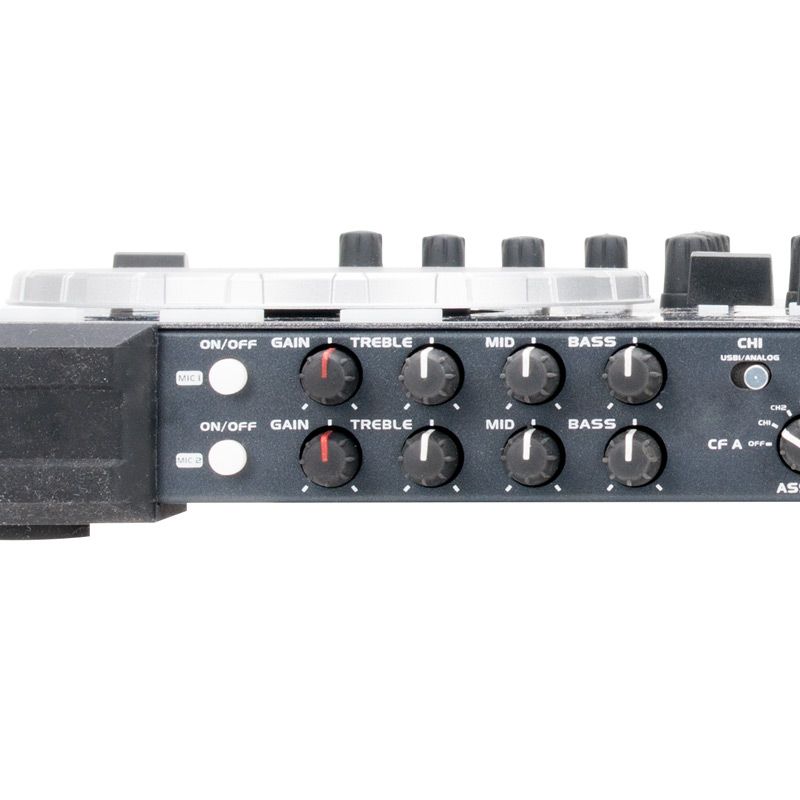

  • Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
  • On/off cueing on each MIDILOG™ channel

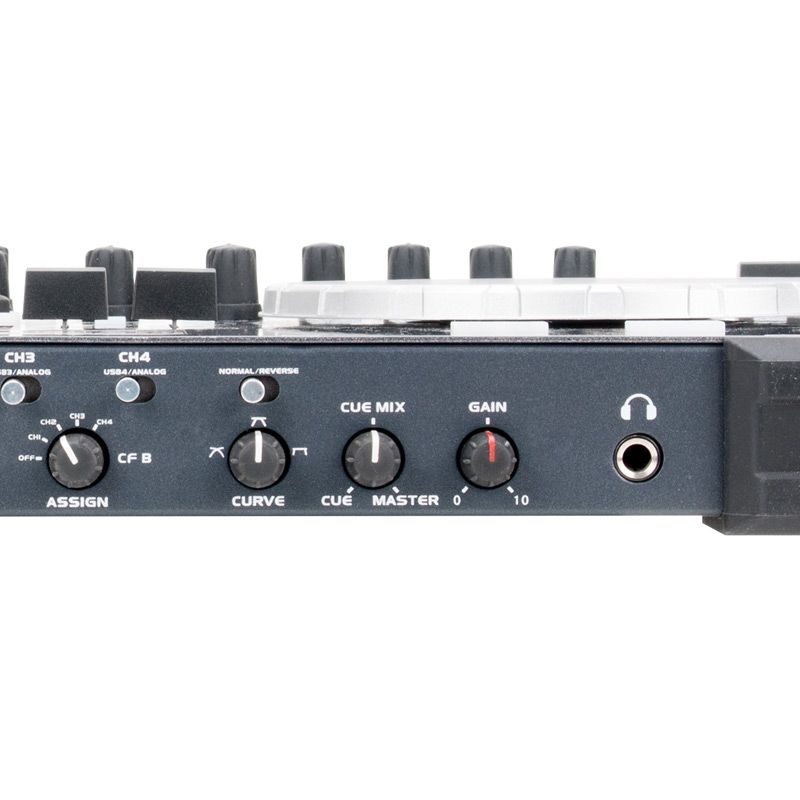

  • Split cueing headphones with rotary mix control
  • Illuminated rubber knobs for ease of use in dark environments
  • Solid 1.6mm thick faceplate for extra durability
  • Panel mounted rotary knobs
  • Full analog mixer operation if the computer crashes or with external power supply
  • Innofader replaceable crossfader compatible (sold separately)
  • Crossfader curve control
  • Crossfader assign and reverse
  • Q-Start crossfader controlled startup for 2 external audio players

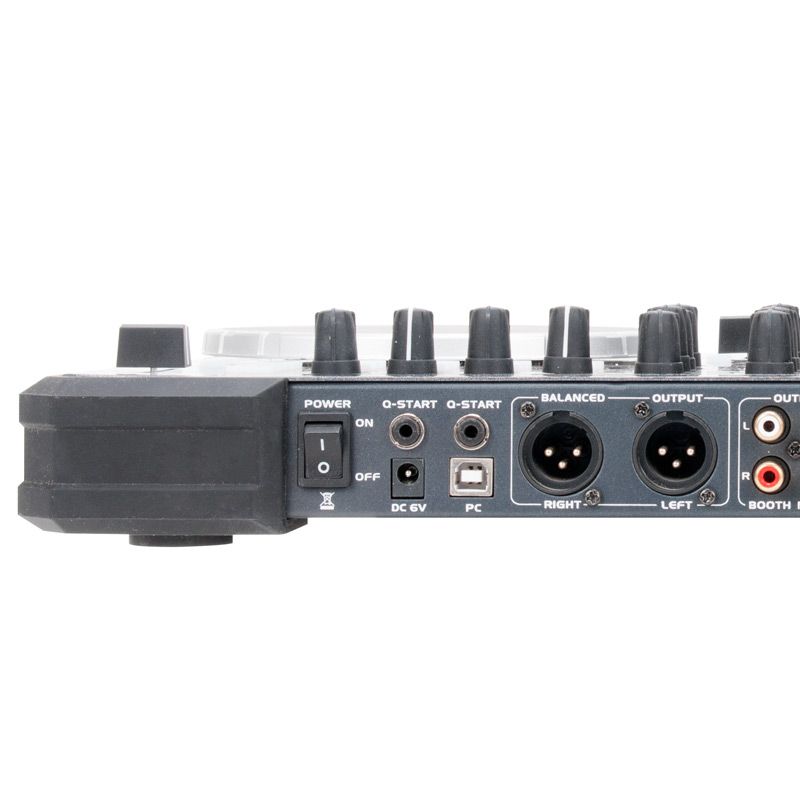

  • Master and Booth outputs with L/R balance
  • Balanced Master outputs
  • 12 position stereo master output VU meter
  • Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
  • Weight: 13 lbs. / 6 kg.



MIDI FEATURES:

  • Built-in mouse pad
  • Long life MIDI assignable touch strips
  • Two 10- bit resolution pitch sliders
  • 62 assignable MIDI buttons and switches

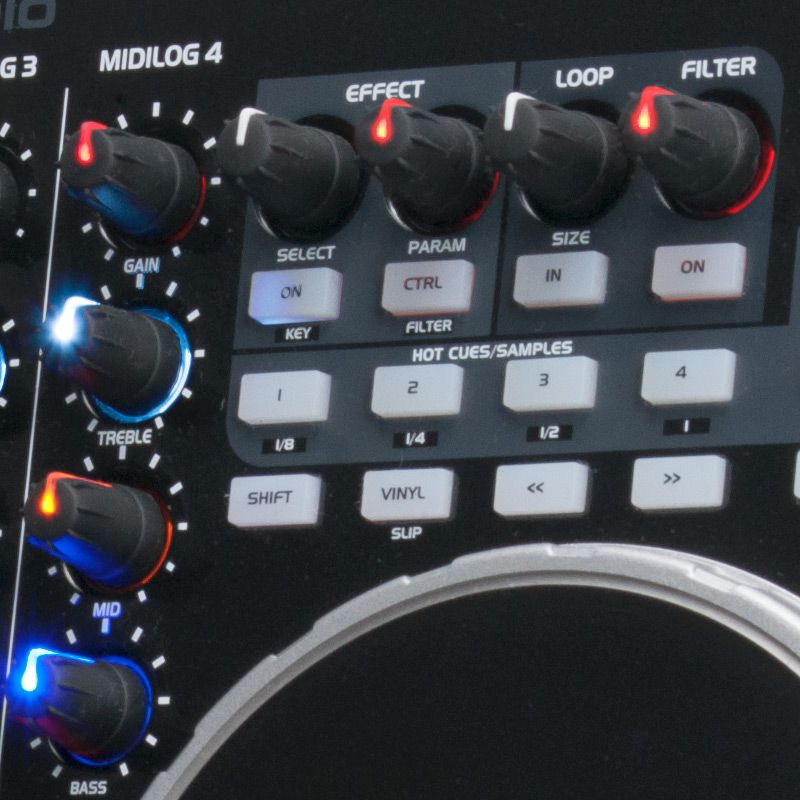

  • 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
  • 4 assignable rotary encoders
  • 34 assignable rotary controllers
  • 5 assignable linear fader controllers
  • Dual MIDI controls on all buttons and switches
  • Dual 2000 point resolution touch sensitive turntable scratch controllers



AUDIO FEATURES:

  • 24-bit 48 kHz analog audio
  • 16-bit 44.1kHz USB audio
  • 10-bit resolution on all analog fader controls
  • THD <0.1%*
  • Channel separation >60dB*
  • S/N ratio >85dB*
  • Analog channel audio latency < 1msec
  • Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
  • 2 msec response on all buttons
  • 4 msec response on all rotary and linear faders
  • 1 msec USB latency
