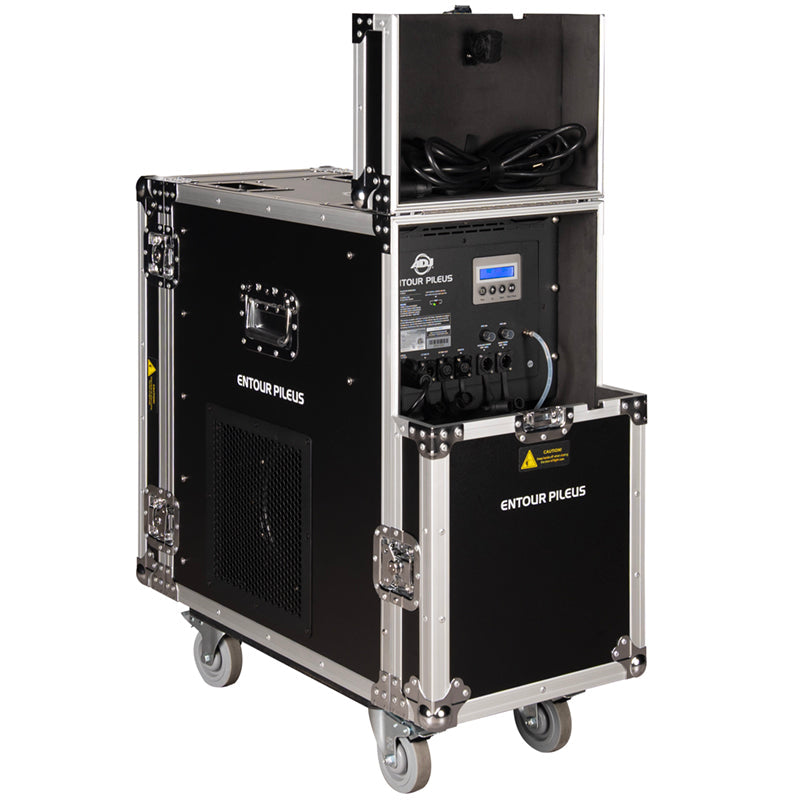

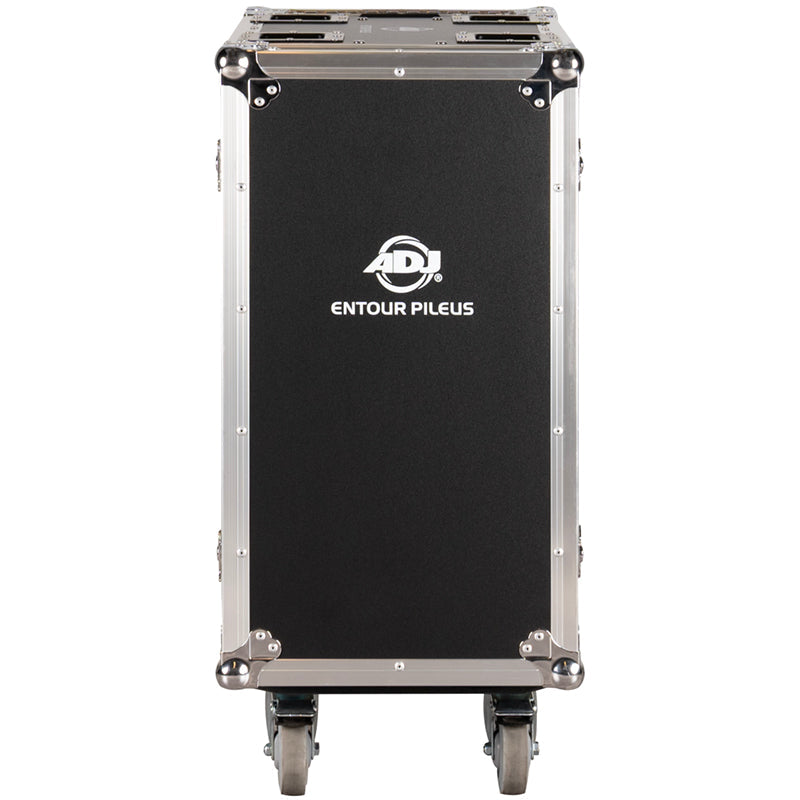

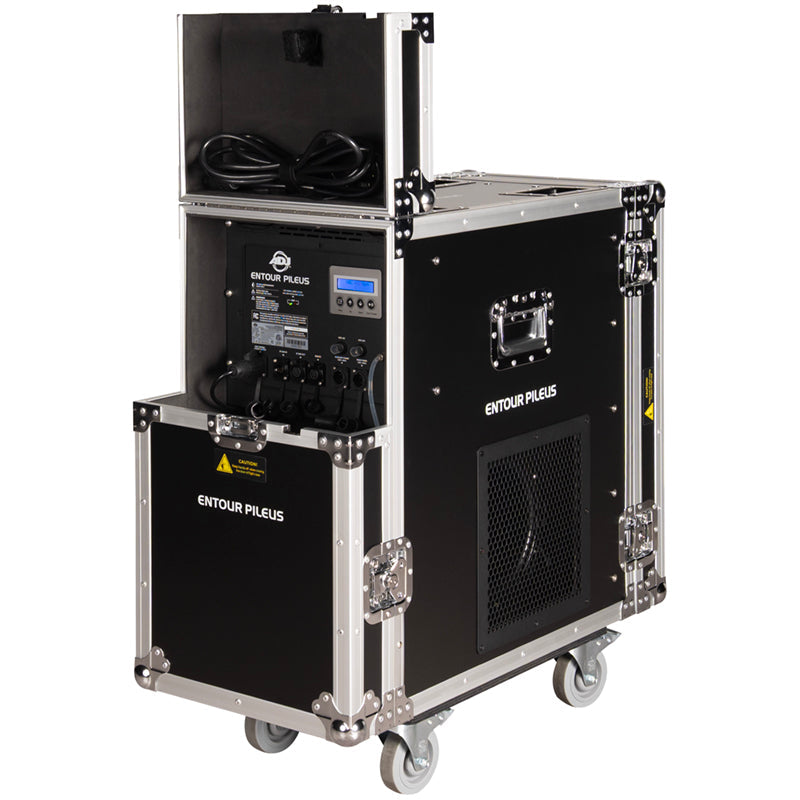

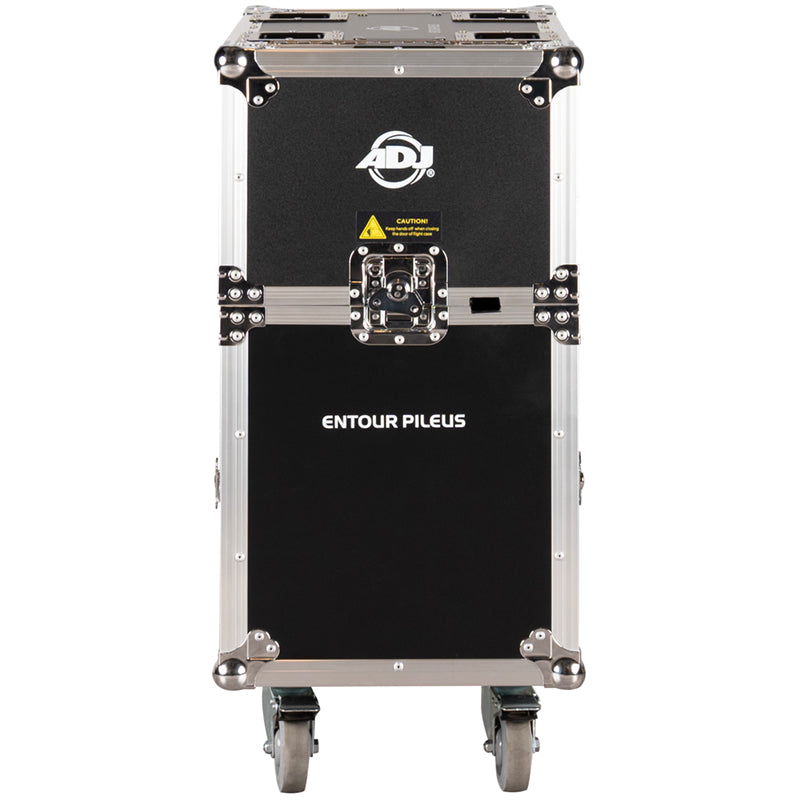

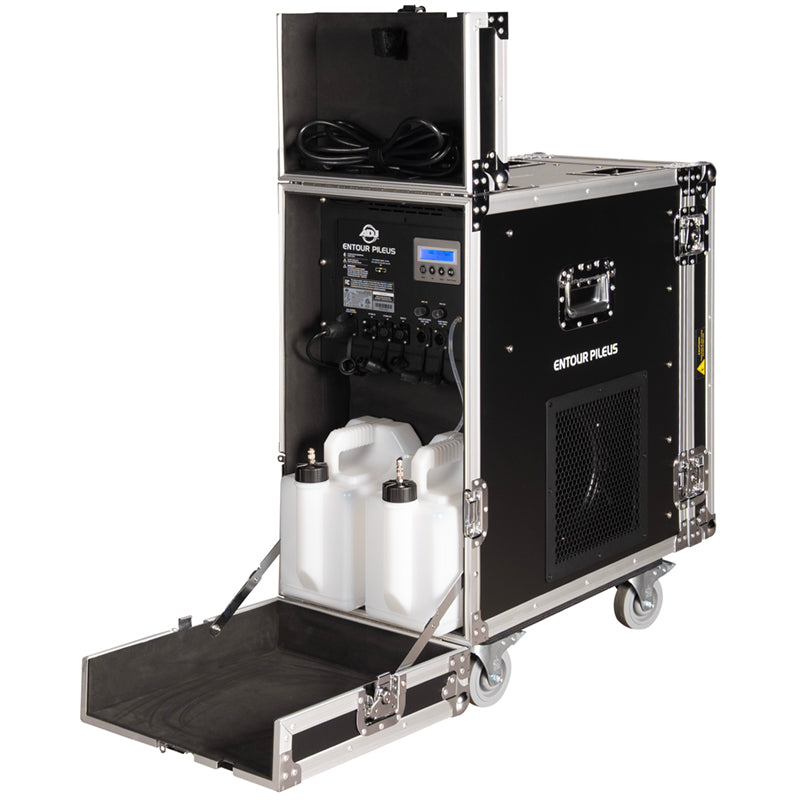

The Entour Pileus is a powerful 1650W hybrid water-based fog and faze machine, engineered for professional use. It delivers dense plumes of fog or fine, atmospheric mist with precision. Housed in a durable flight case with heavy-duty casters, the Entour Pileus is built to meet the demands of large-scale productions.
Overview
The Entour Pileus, the latest addition to ADJ’s renowned Entour Series, is a versatile, professional-grade multifunctional fog and faze machine tailored for large-scale productions. Encased in a durable flight case with locking castors, this robust machine offers the flexibility to produce either powerful fog bursts or a fine, faze-like mist using standard water-based fog fluid. It comes with two 5.6 liter tanks to either stock up on fluid or quickly switch between fog fluid and faze fluid. Equipped with a high-performance 1650W heater, a variable-speed dispersion fan, and advanced fluid consumption management, it ensures precise output control and continuous operation for up to 35 seconds. Capable of delivering a remarkable 60,000 cubic feet of output per minute, the Entour Pileus can easily fill even the largest venues. With dual 5.6L fluid tanks, an ultra-fast 16.5-second warmup time, multiple control options, 5-pin DMX In/Out, and a cutting-edge self-cleaning system, it’s the perfect atmospheric generator for tours and large-scale events.
Key Features
| Heater Element |
1650 Watts |
| Output |
Thick fog or thin haze |
| Housing |
Road case + casters |

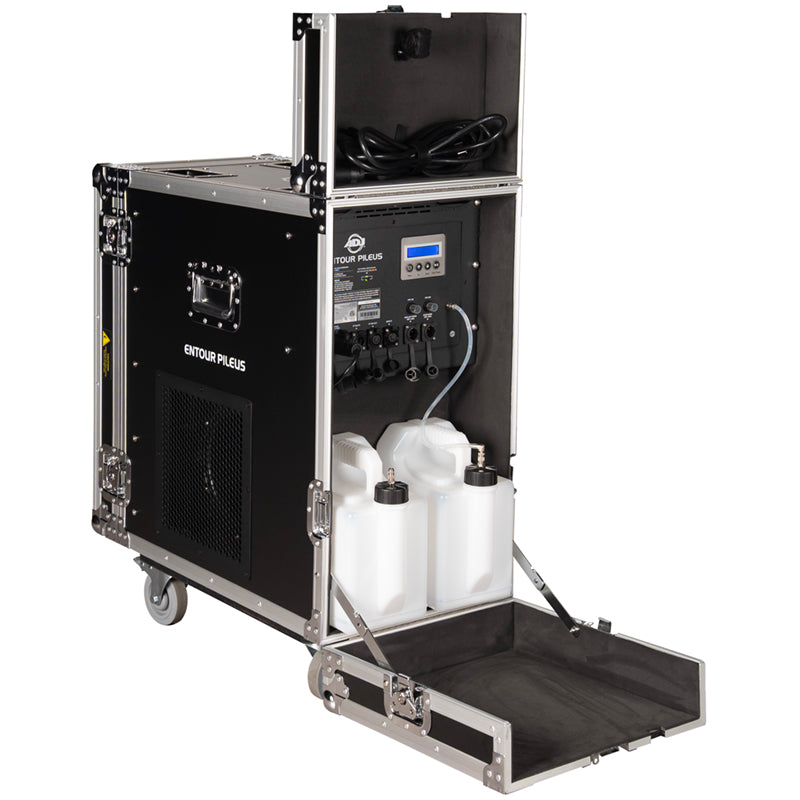

| Fog Fluid Tanks |
Dual 5.6-litre |
| Control |
4-button LED display + DMX |
Features

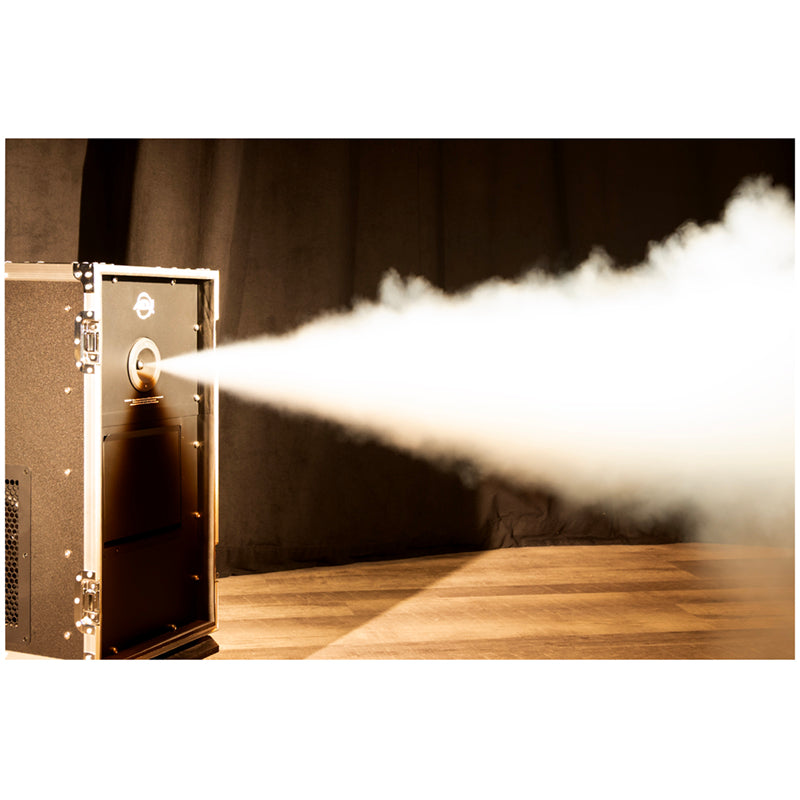

- Creates thick fog or thin faze output
- On-board timer control
- Remote controller connectors — 4-pin XLR

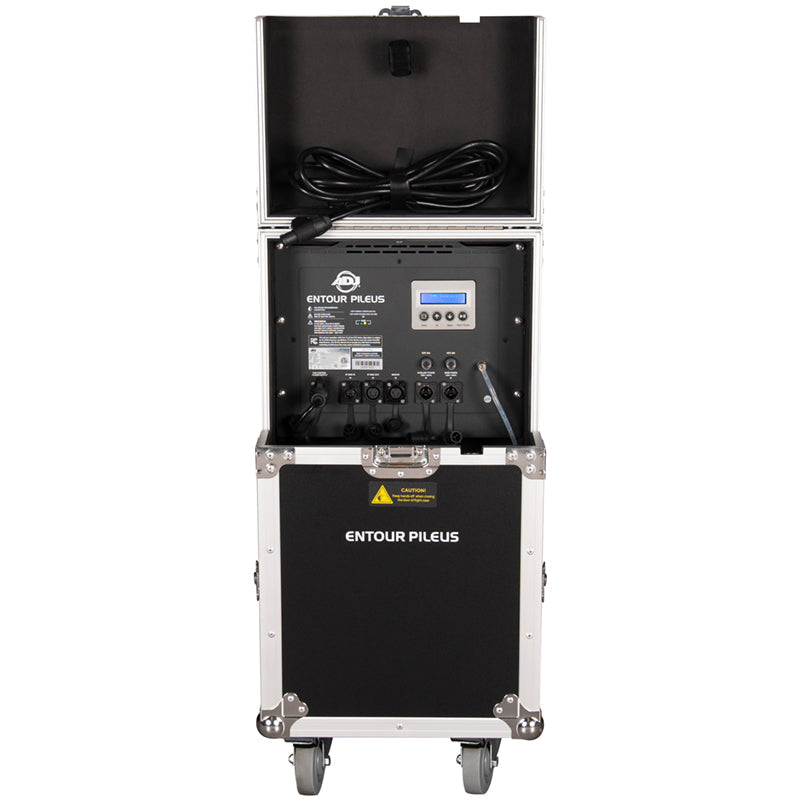

- LCD display with 4-button control
- OVP — Over Voltage Protection
- 3 DMX channel modes: 1CH, 2CH, 4CH

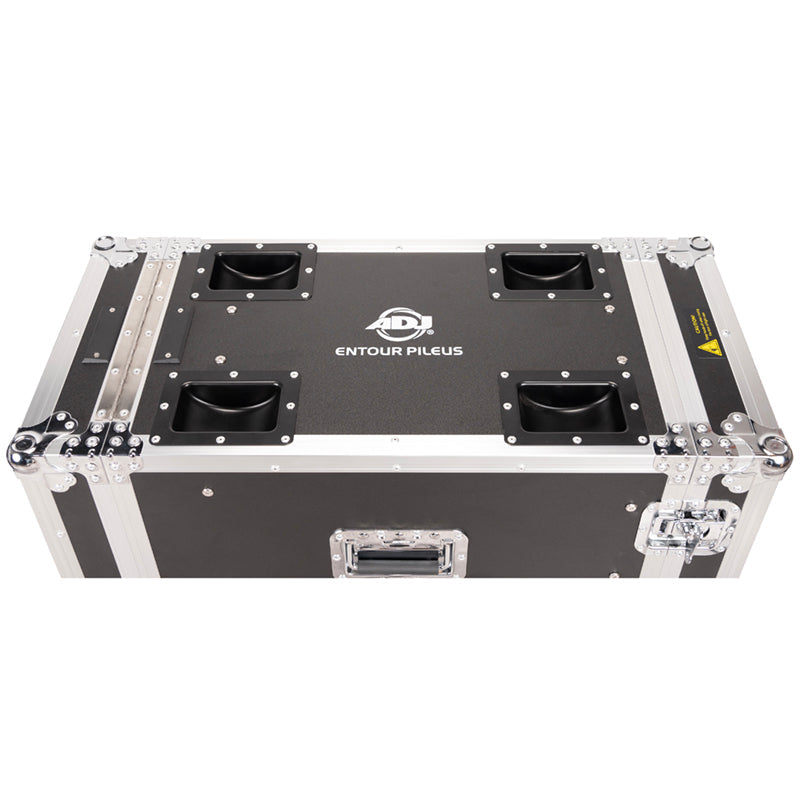

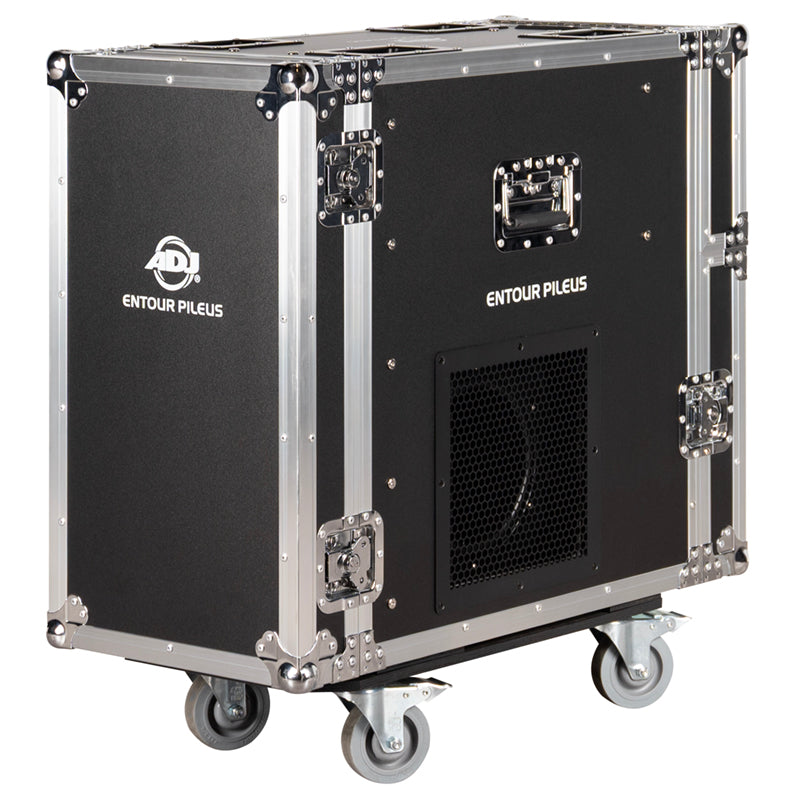

- Rugged road case housing
- Heavy-duty locking casters
- Built-in self-cleaning system
- CE certified
Performance
| Fog Output |
60,000 cu. ft./min |
| Fluid Consumption Rate |
Max. 180 ml/min — Min. 38 ml/min |
| Fog Output Adjustment |
5–100% |
| Fan Speed Adjustment |
5–100% (fan can be disconnected) |
| Max Output Duration |
35 seconds (continuous mode off) |
| Continuous Mode |
Automatically adjusts output to allow for longer bursts |
| Self-Cleaning Duration |
30 seconds |
| Warm-Up Time |
16.5 seconds |

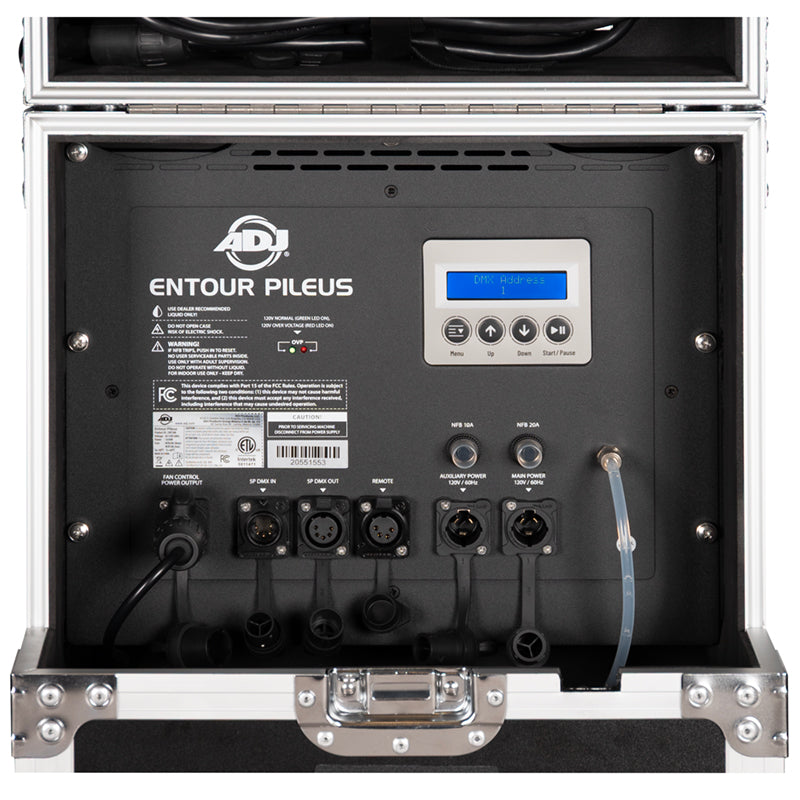

Physical & Electrical Specifications

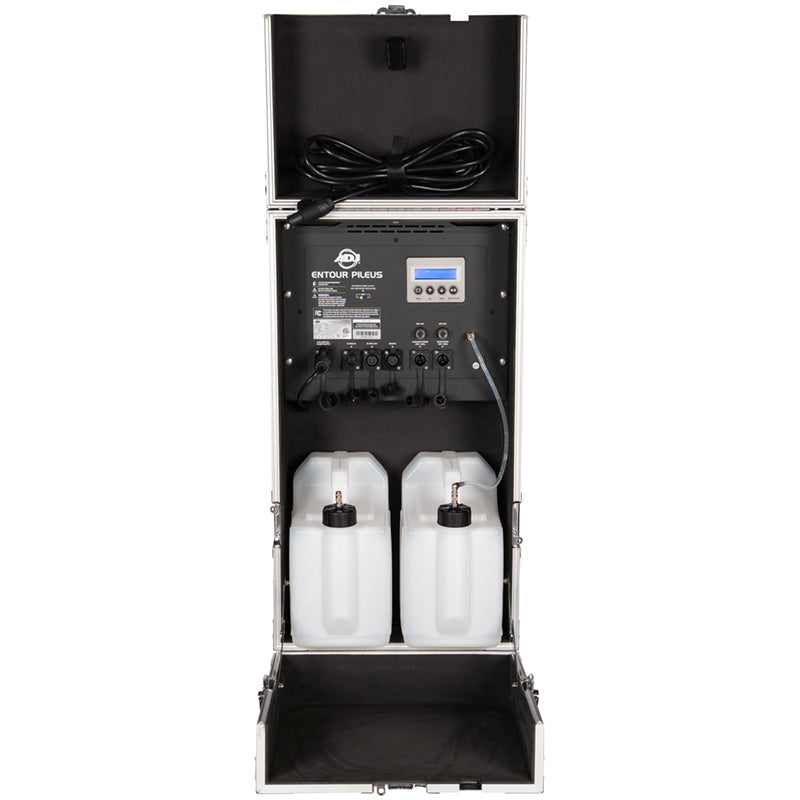

| Fluid Tanks |
Dual 5.6 L tanks |
| Data Connections |
5-pin DMX In / Out |
| Power Connection |
Locking power input connection |
| Power Input |
120V~60Hz (US) / 230V~50Hz (EU) |
| Heater Power |
1500 W |
| Max Power Consumption |
2150 W |
| Cooling |
Fan cooled |
| Max Ambient Temperature (Ta) |
40°C / 104°F |
| Dimensions (L x W x H) |
33.1" x 16.1" x 32.6" / 841 x 408 x 829 mm (wheels included) |
| Weight |
139 lbs. / 63 kg |
| UPC |
810087374303 |
| SKU / Model |
ENT280 |
Specifications are subject to change without notice.
