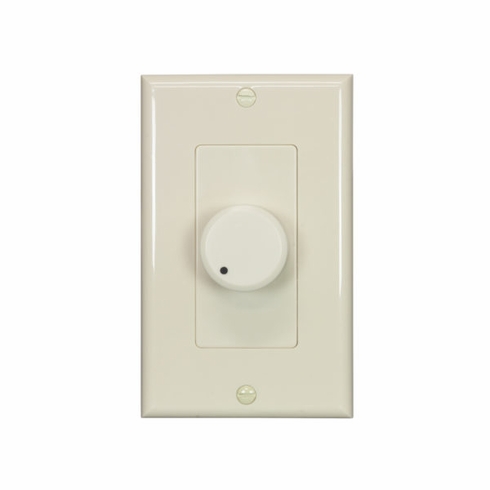

VCS8-DA: Impedance-matching Home Stereo Attenuator
Impedance matching home stereo volume controls with almond decorator style wall plate can be used to connect multiple pairs of stereo speakers safely to a home stereo amplifier (or home stereo receiver/amplifier). Each pair of speakers must be wired to a separate home stereo volume control.
• Power Rating: 50W per channel
• Attenuation: 3dB per step
• Use With: 8ohm speaker line
• Activation: Rotary dial
• Volume Positions: 0-max
• Termination: Phoenix-style
• Wire Capacity: 14-gauge
• Wall Plate: 1-gang decorator style
• Finish: Almond
• Fits standard E.O. box (2.5 in. min. depth)
The impedance matching home stereo volume control for use with 8ohm or 4ohm speakers and a typical home stereo amplifier or amplifier/receiver (maximum amplifier output of no more than 50W per channel), shall be Lowell model VCS8-DA with 50W power rating, 3dB per step attenuation, and phoenix style plug-in screw termination strips for pre-wire convenience (wire capacity up to 14-gauge). The volume control includes a circuit board mounted slide switch that is used to set the proper impedance matching. It shall include a one-gang decorator style with almond wall plate. The device shall include a rotary switch with stops at "off" and "max". The unit shall be able to mount in an E.O. box that has minimum inside dimensions of 1.875"W x 3"H x 2.5"D.
