Lowell LRR-4515

Product Description

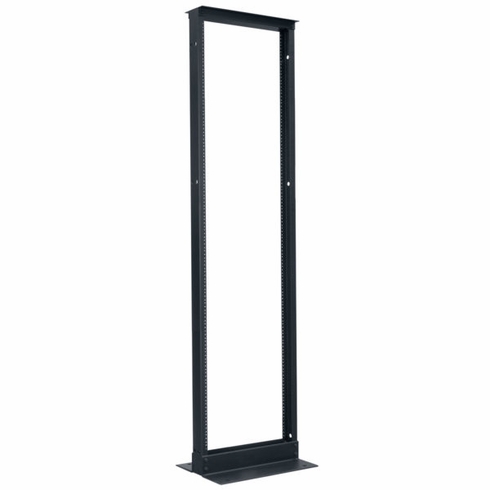

LRR-4515: Relay Rack 45U x 15?D


Two post rack provides full access to electronics, making it ideal for telecommunications, commercial sound, broadcast, data and switching applications. Ships unassembled.

SPECIFICATIONS Rack Space: 45U Height: 84.00 in. Width: 20.25 in. Depth: 15.00 in. FEATURES Steel channels tapped 10-32 (3 in. wide) Two piece aluminum top and two piece base Black finish Four holes for anchors (not included) Assembly and mounting hardware Ships unassembled COMPLIANCE & CERTIFICATION EIA/TIA compliant RoHS compliant Certified U.S. steel Made in U.S.A. A&E SPECIFICATIONS The relay rack shall be Lowell Model No. LRR-4515 which shall measure 20.25"W x 15"D (at base) x 84"H. It shall have 45 rack units of space. The rack shall ship unassembled and feature two (3"W) vertical channels of 11-gauge steel with mounting holes tapped 10-32 on E.I.A. mounting centers, a two-piece aluminum top, and a two-piece aluminum base with holes to secure to floor when specified by code. It shall include assembly and panel mounting hardware and be finished in black powder epoxy paint.

Two post rack provides full access to electronics, making it ideal for telecommunications, commercial sound, broadcast, data and switching applications. Ships unassembled.

SPECIFICATIONS

Rack Space: 45U
Height: 84.00 in.
Width: 20.25 in.
Depth: 15.00 in.

FEATURES

Steel channels tapped 10-32 (3 in. wide)
Two piece aluminum top and two piece base
Black finish
Four holes for anchors (not included)
Assembly and mounting hardware
Ships unassembled

COMPLIANCE & CERTIFICATION

EIA/TIA compliant
RoHS compliant
Certified U.S. steel
Made in U.S.A.

A&E SPECIFICATIONS

The relay rack shall be Lowell Model No. LRR-4515 which shall measure 20.25"W x 15"D (at base) x 84"H. It shall have 45 rack units of space. The rack shall ship unassembled and feature two (3"W) vertical channels of 11-gauge steel with mounting holes tapped 10-32 on E.I.A. mounting centers, a two-piece aluminum top, and a two-piece aluminum base with holes to secure to floor when specified by code. It shall include assembly and panel mounting hardware and be finished in black powder epoxy paint.
