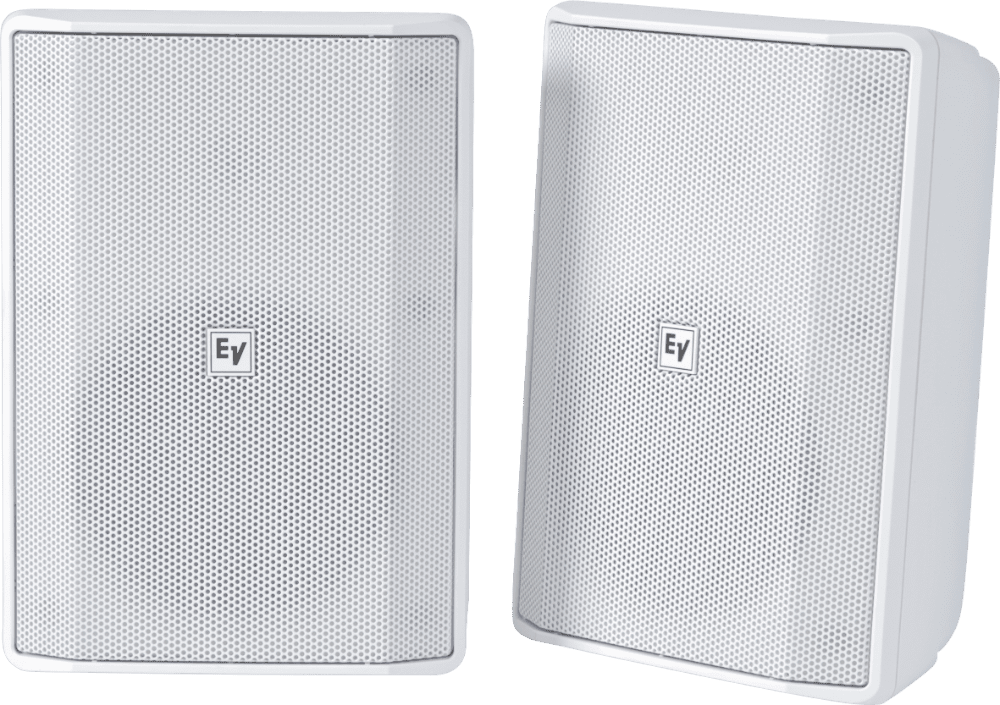

Electro-Voice EV EVID-S5.2XW

Electro-Voice EVSKU: EVID-S5-2XW

Price:
Sale price$459.00

Description

Quick install Speaker 5” cabinet 70/100V white. IP65. Sold only in pairs.

EVID-S5.2X

5” Cabinet 70/100V IP65

  • Carefully engineered for the toughest weather conditions (IP65)
  • Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
  • 90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
  • 60 W transformer with 8? pass-through

The EVID-S5.2X, from Electro-Voice, is a high-performance, two-way, full-range, 5.25" (133 mm) surface mount speaker with excellent wide, uniform dispersion, and outstanding performance. It is designed for background and foreground music, voice evacuation, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation, exceptional weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S5.2X is the perfect solution for a wide variety of surface mount applications.

The EVID-S5.2X has been carefully engineered to resist the toughest weather conditions, without compromising on performance for indoor applications. The full-range speaker is IP65 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt, moisture, and chlorine.

The EVID-S5.2X includes a versatile U-Bracket that has been designed with the installer in mind, allowing for a wide range of installation applications. The U-Bracket allows for 80 degrees of rotation.

The EVID-S5.2X Utilizes a 60W transformer, that offers a selection of 7.5W (70V only), 15W, 30W or 60W delivered to the speaker system using either 70V or 100V lines, or 8? bypass for low impedance lines. Selection is done with a convenient switch on the input panel located on the rear of the speaker.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.


Frequency Range (-10 dB) 55 Hz – 20 kkHz
Weight Net 7.05lbs (3.2kg)
Depth 5.83" (148mm)



Width 7.09" (180mm)
Height 10.04" (255mm)
Available Color Black or White
Connector Type Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 90°
Environmental Specs IP-65 (per IEC-60529)
Frequency Response (-3 dB) 90 Hz – 20Hz
HF Transducer 0.75 inch (20 mm)
LF Transducer 5.25 inch (122 mm)
Max. SPL/1m (calc) 108dB
Minimum Impedance 6?
Nominal Impedance 8?
Recommended High-Pass Frequency 60Hz
Sensitivity 1 W/1 m 90dB
Shipping Weight 20.94lbs (9.5kg)
Transformer 70V/100V (60W)
Weatherized Yes
