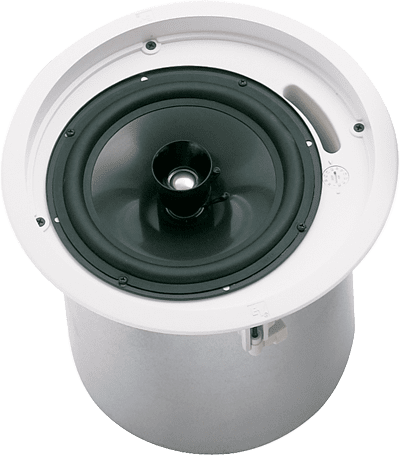

Electro-Voice EV EVIDC8.2 (sold only in pairs)
Roll over image to zoom in Click on image to zoom
Electro-Voice EV EVIDC8.2 (sold only in pairs)

Electro-Voice EV EVIDC8.2 (sold only in pairs)

Electro-Voice EVSKU: EVID-C8-2
Price:
$409.00

Description

8" Coaxial speaker with horn loaded Ti coated tweeter - complete with back can enclosure, tile rails, and mounting ring - for 70v/100v or 8-ohm operation. Taps at 30, 15, 7.5, 3.75, and 1.88 watts (sold and priced per pair)

EVID C8.2

8" 2?Way Coaxial Ceiling Loudspeaker

  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 ? use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Freq. Response (-10 dB): 50 Hz - 20 kHz
Coverage (Conical): 110°
Power Handling: 75 W Cont. / 300 W Peak


Sensitivity (SPL 1W/1m): 91 dB
Max Calculated SPL: 110 dB Cont. / 116 dB Peak
Impedance: 8 Ohms nominal (transformer bypass)
Network: Network and transducers protected, 12 dB/oct 2.6 kHz
LF Transducer: 8 in. (200 mm) Polypropylene cone
HF Transducer: 1 in (25 mm) Ti Mylar laminate
Transformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30w 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
Connectors: C8.2: Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire C8.2D: Fire-safety rated input block, 3 terminal barrier strip accepts 12 ga wire
Enclosure Material: Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel
Grille: Perforated powder coated steel with safety tether
Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
Dim (H x Dia.): 10.0" x 10.6 (255mm x 270mm)
Cutout Size: 10.75" (272mm)
Net Weight (each): 11.0 lbs (5.0 kg)
Shipping Weight (pair): 24.0 lbs (11.0 kg)
Safety Agency Ratings: UL 1480 Safe for use in air handling spaces per UL 2043.
