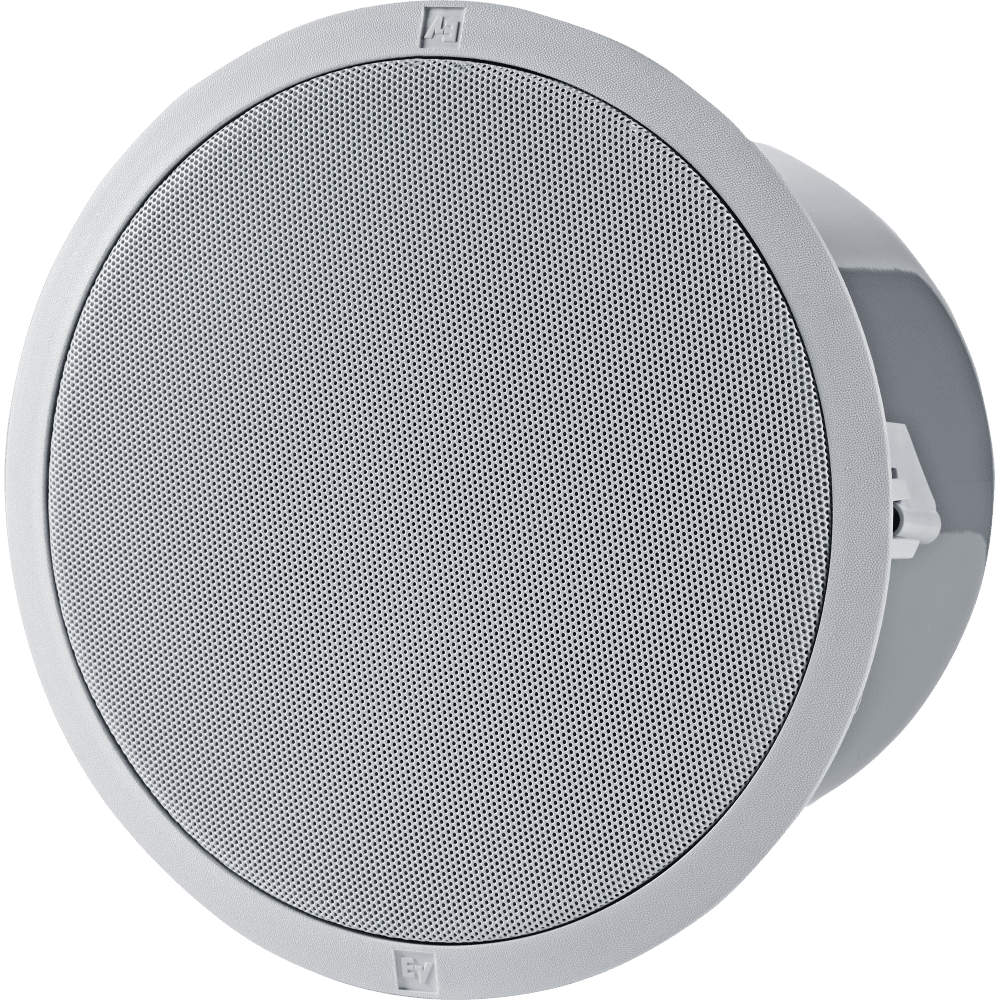

Electro-Voice EV EVID-C6.2 (sold only in pairs)

Electro-Voice EVSKU: EVID-C6-2

Price:
Sale price$389.00

Description

6.5" Coaxial speaker with horn loaded Ti coated tweeter - complete with back can enclosure, tile rails, and mounting ring - for 70v/100v or 8-ohm operation. Taps at 30, 15, 7.5, 3.75, and 1.88 watts (sold and priced per pair)

EVID-C6.2

Ceiling speaker 6.5" white

  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Includes tile bridge and mounting ring for easy installation
  • UL1480A and CSA 22.2 205 certified

The Electro-Voice EVID-C6.2 loudspeaker system is a complete two-way ceiling loudspeaker. The package consists of a bezel assembly, grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal linematching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C6.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C6.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS.

The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVID-C6.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, highefficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.


Frequency response 50 Hz - 20 kHz
Sensitivity (SPL 1 W/1 m) 90 dB
Coverage pattern 120° conical
Power handling (@ 8?) 75 W (with overload protection)



Rated Impedance 8 ?
Recommended High-Pass frequency 60 Hz
Input configuration 8?; 70V/100V
70V/100V power taps 1.8 (70V only)/3.7/7.5/15/30 W
LF transducer 6.5 in (165 mm) high-compliance driver (weatherized cone)
HF transducer 1 in (25 mm) Ti-coated dome
Mounting system Integrated 4-point toggle anchors
Acoustic design Ported cabinet, two-way design, internally damped, w/passive crossover
Cabinet construction Steel enclosure and UL94V-0 rated baffle and bezel
Grille construction Powder-coated steel
Color White (paintable)
Cutout dimensions (diam.) 10.6 in. (269 mm)
Dimensions (depth x diam.) 7.0 in. x 11.8 in. (190 mm x 300 mm)
Net weight 10 lb (4.5 kg)
Included accessories Tile bridge, mounting ring
Safety agency ratings UL 1480
Safe for use in air handling spaces per UL 2043
