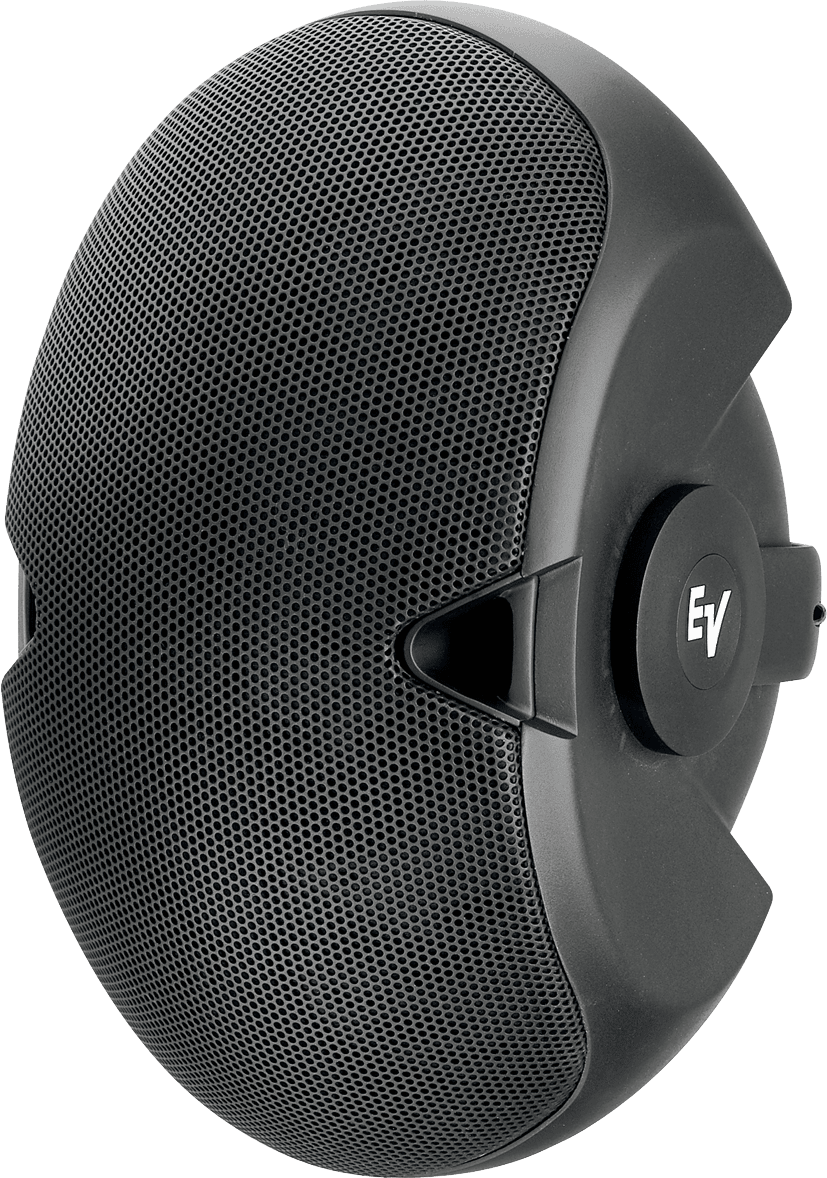

Electro-Voice EV EVID4.2W (sold only in pairs)
Roll over image to zoom in Click on image to zoom
Electro-Voice EV EVID4.2W (sold only in pairs)

Electro-Voice EV EVID4.2W (sold only in pairs)

Electro-Voice EVSKU: EVID-4-2W
Price:
$369.00

Description

Same as model EVID 4.2 but white cabinet (sold and priced per pair)

EVID 4.2

Dual 4" 2?Way Surface-Mount Loudspeaker

  • Compact full range
  • Ideal for restaurants, bars, patios, and retail
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems

Frequency Response 1(-10 dB) 65Hz - 20kH
Power Handling 2 200W Cont. Prog./400W Peak
Sensitivity 3 89 dB, 1W/1m


Impedance 8 ohms
Max SPL 113 db
Horizontal Coverage 4 120°
Vertical Coverage 4 80°
Crossover Frequency 2.2 kHz
LF Transducer 2 x 4" (100 mm)
HF Transducer 1" (25 mm)
Protection Full System
Weather Resistance Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
Swing x Rotation 100° x 90°
Terminals Phoenix Connector
Enclosure Material ABS (paintable)
"t" Version Wattage Taps 70V: 3.75 W
70V/100V: 7.5W, 15W, 30W, 8 ohm bypass
Dim (H x W x D) 12.2" x 6.9" x 8.5" (234 mm x 127 mm x 165 mm)
Net Weight (each) 8.5 lbs (3.9 kg)
Shipping Weight (pair) 19 lbs (8.6 kg)
Included Accessories SAM™, hex key
1 Half Space (wall mounting)
2 Continuous Program Rating: 3 dB greater than continuous pink noiserating (IEC-shaped pink noise with 6dB crest factor)
3 Avg: Half Space (wall mounting)
4 When mounted with long axis in vertical plane
