ADJ WMX1

Save $249.96
ADJ - American DJSKU: WMX100

Price:
Sale price$649.99 Regular price$899.95

Description

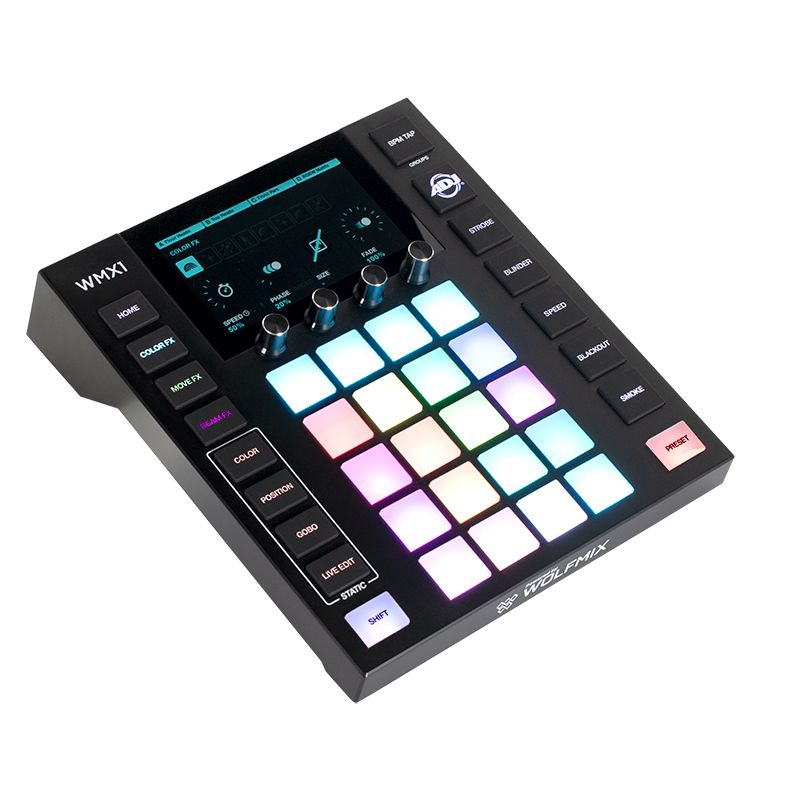

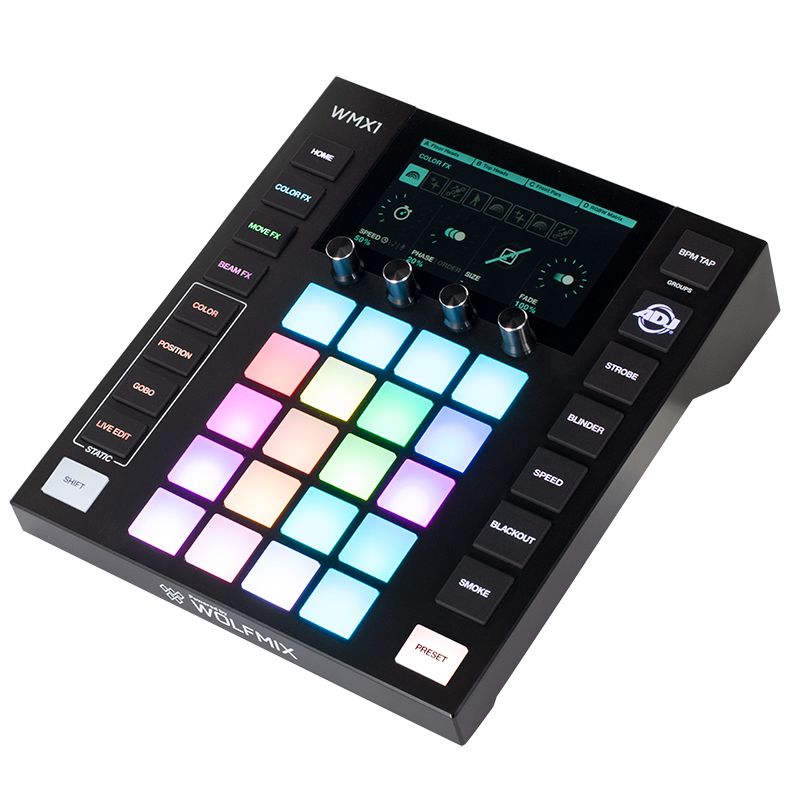

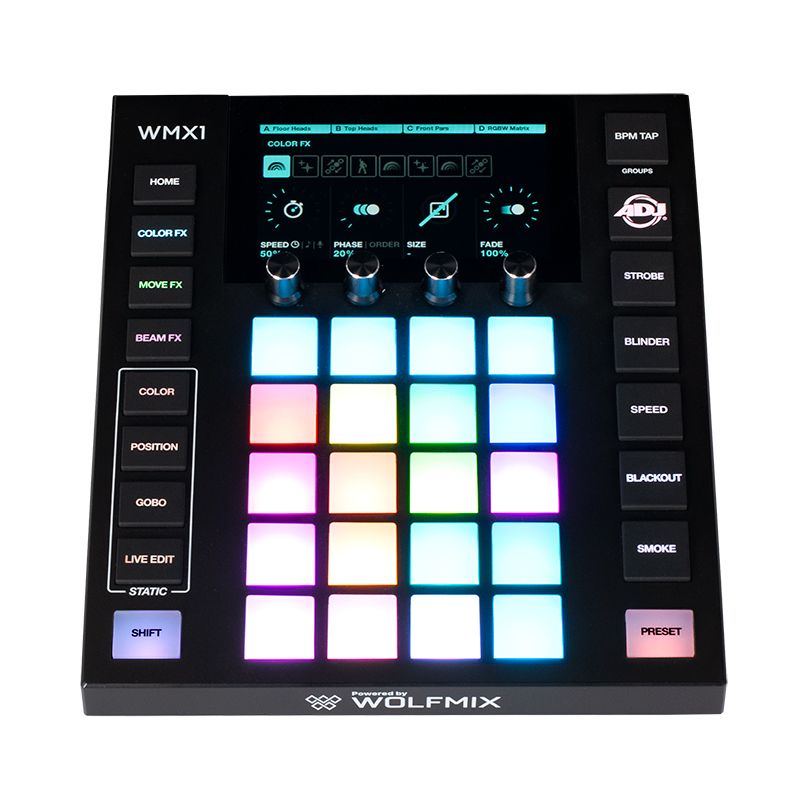

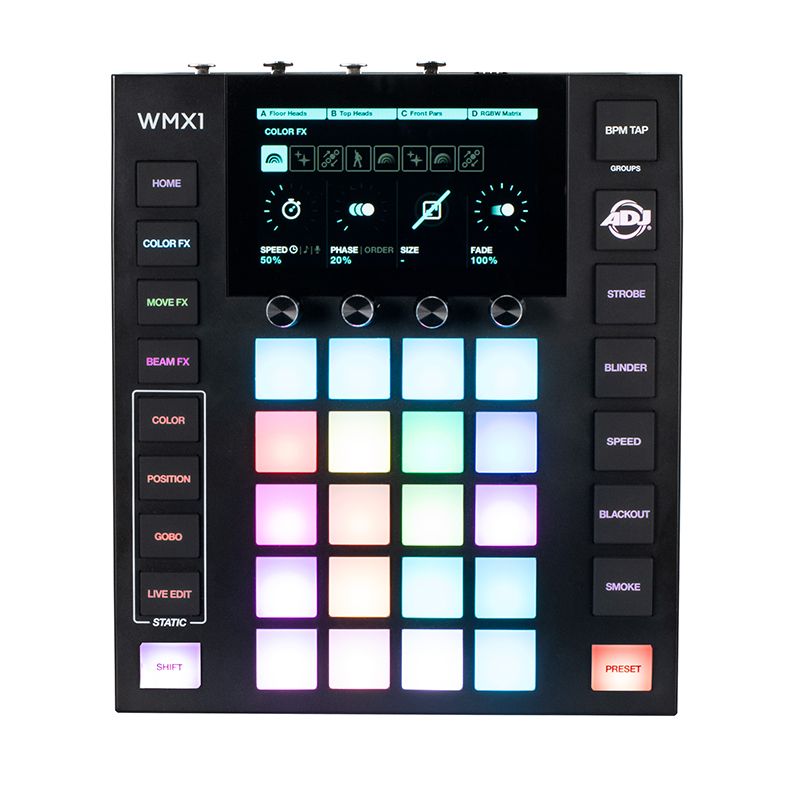

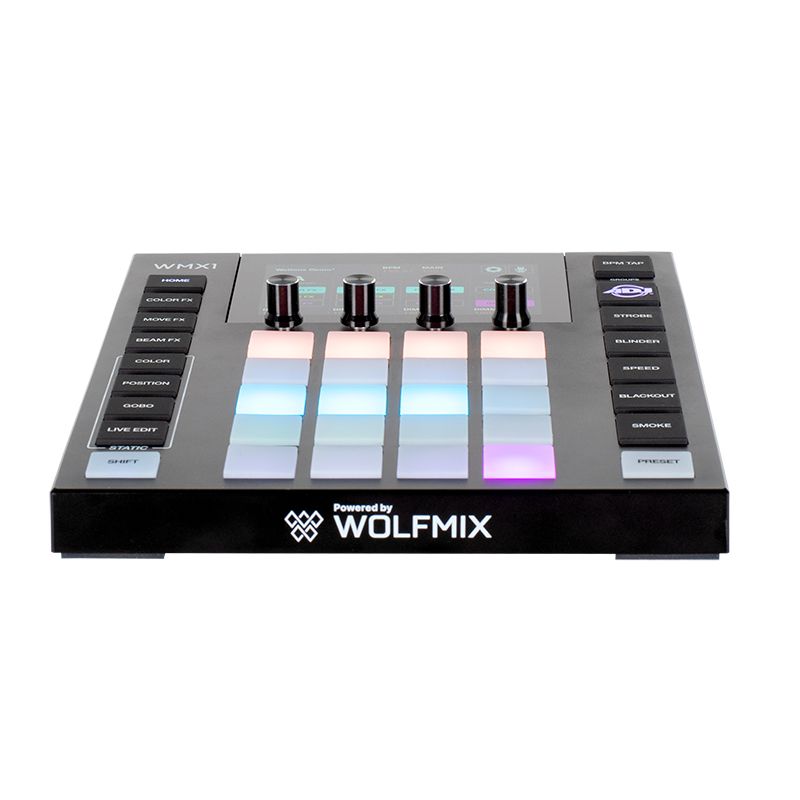

Offering a unique new hands-on interface for creative lighting control, the ADJ WMX1 is a powerful and compact standalone DMX controller. Designed for creating high-impact lightshows on the fly without a computer, it features an intuitive workflow, powerful internal FX engine, and tactile controls that make it easy for anyone to take control of a DMX lighting rig comprised of multiple fixture types.

Setup of the WMX1 is quick and straightforward, with a menu interface on the 4.3” capacitive touch TFT screen allowing easy selection, addressing, and grouping of fixtures. 3,500+ fixture profiles are included on the controller itself, with more than 15,000 accessible through the supporting WTOOLS app. The WMX1 also features a Fixture Builder, for creating custom profiles or for use with old or obscure fixtures, as well as a Fixture Calibration tool, which allows limiting of the area covered by moving heads.

Once configured, the system allows independent control of up to eight groups of fixtures (four accessible via a Shift key), with 37 backlit silicone buttons and four rotary encoders allowing three different FX engines (Color, Move and Beam) to be easily triggered and customized independently for each group. The controller also features separate dedicated buttons for Strobe, Blinder, Speed, Blackout and Smoke.

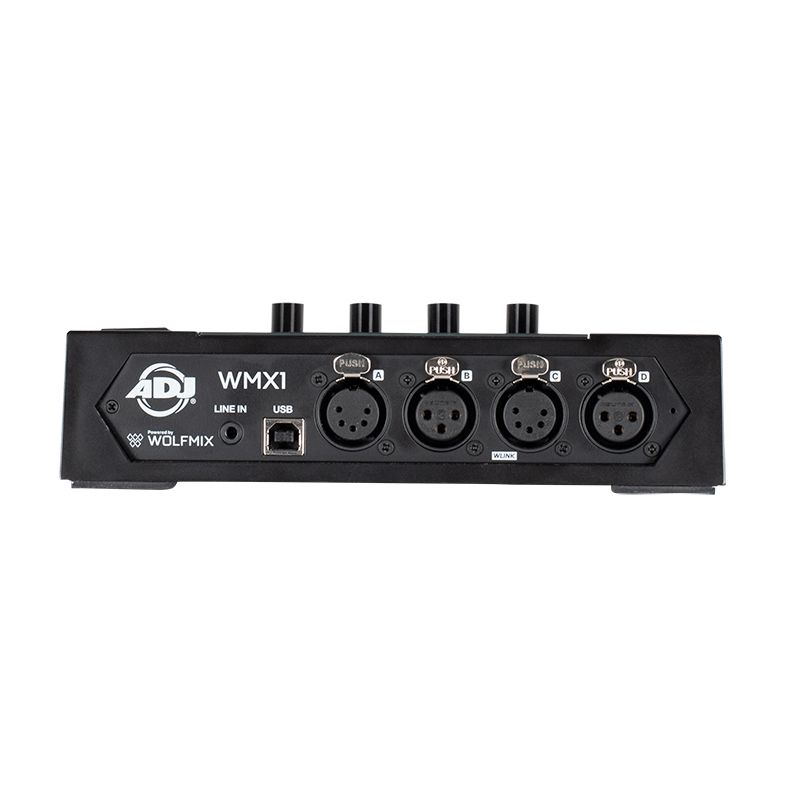

The WMX1 features four DMX universes and four output sockets (two 5-pin and two 3-pin) with the ability to map any universe to any output, allowing the unit to also serve as a DMX splitter. Out of the box the system supports a single DMX universe (output via all four sockets), while three additional universes are available as upgrades through the WTOOLS app. It also features both an internal microphone and 3.5mm jack line input socket for automated BPM detection, as well as a button that allows the BPM to be ‘tapped in’ manually.

A Color Picker interface on the screen, which allows easy selection of just the right hue, can be used both for RGBW and RGBWA+UV LED fixtures. Other useful features include automatic matching of similar GOBOs across different fixture types, Fixture FLIP function (for reversing beam order), Fixture SPLIT function (for splitting up multi-FX bars) and Auto-recovery of the active project (no manual saving needed).

Despite its low weight (2.36lb / 1070g) and compact dimensions (7.68” x 8.66” x 2.44” / 195 x 220 x 62mm [LxWxH]), the WMX1 is extremely robust. Inside its tough ABS plastic shell, the unit features a powder-coated steel base plate and reinforced back plate. Its 220Mhz CPU with ARM core and 8MB RAM / 16MB flash memory allow for extremely complex effects to be layered and run independently across multiple groups all in real time.


Setup
Standalone (no computer needed)
Compatible with any DMX device
Standard unit comes with 1 DMX universe but up to 3 additional universes are available as add-ons, which are sold via the WTOOLS app.
Up to 680 fixtures & beams
Up to 50 fixture types
Up to 5000 fixture features (color/gobo etc...)
8 fixture groups
6 projects
15000+ available fixtures (3500+ on the controller)
DMX address, fixture order & group setup
Use as a DMX splitter with DMX universe mapping
Palettes & FX
Color FX module with 8 effect types & 16 definable colors
Move FX module with 8 effect types
Beam FX module with 8 effect types
6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
Static color palette with 10 user definable colors per group & gradient control
Static position palette with 5 user definable positions per group with fade & fanning
Gobo palette with 5 user definable gobos per group
20 namable live edit buttons with flash triggering mode and ‘Park’ function
100 namable presets for storing snapshots with hold and fade timings
Preset playback cue list- all presets or per page of 20 presets
Control & Sync
Group and master dimming with encoder acceleration
Group FLASH, FULL and Blackout
16 bit Pan/Tilt control
Multi-beam LED bar control
FX music pulse sync from Microphone or Line-In
FX BPM sync with Ableton Link, OS2L or BPM TAP
Effect Speed, Phase, Order, Size, Fade, Fan & Flick
Live control of move FX registration point
Global FX speed and freeze control
Map DMX IN with group dimmer and patch to output channels*
WLINK - sync with another Wolfmix controller
Built-in tools
Fixture Builder
Fixture calibration tool, to limit the area of moving fixtures
X-Y touch controlled positioning grid
RGBW touch controlled color picker
8-step real time sequencer for creating beam and move FX
Live view of DMX levels with default value override and DMX channel tester
Beam Editor to override Min and Max values used in generated FX
Other neat features
Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
Automatic matching of similar gobos across different fixture types
Timed release of flash and preset buttons
Fixture FLIP function, for reversing beam order
Fixture SPLIT function, for splitting up multi-FX bars
Lock full controller, or lock editing with a password
Project & fixture backup with WTOOLS app
Offline 3D visualization with Easy View & WTOOLS over USB*
Auto-recovery of active project (no manual saving needed)
Import different fixture setups into the same project
Starts in under 2 seconds. Starts sending DMX in under 1 second
Factory firmware startup recovery mode for times of crisis
*some features require an add-on purchase available through the WTOOLS app

Display
4.3” Color TFT with tinted glass
Capacitive touch
Encoders
Full body alloy
Incremental push with acceleration
Button pads
37 Silicone buttons with matt oil finishing
LED color backlit
Processing
220Mhz CPU with ARM core
8MB RAM
16MB Flash
Audio
Omnidirectional electret mic
3.5mm Jack Line-In
Analog adaptive peak detector
DMX
2x 3pin DMX OUT XLR connectors
1x 5pin DMX OUT XLR connector
1x 5pin DMX IN/OUT XLR connector with WLINK
DMX
USB-B connector - 900ma required (USB3 rating)
High-speed USB communication
Housing
ABS Plastic
Powder-coated steel base plate with 100mm VESA (M4 6mm max)
Powder-coated steel reinforced back plate
Size & weight
195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
1070g / 2.36lb
Optional Upgrades
Easy View 3D Visualizer: $99
WLINK (+DMX IN): $49
Additional DMX universes (Up to 3 more can be purchased): $99ea.
