ADJ 4 STREAM DMX BRIDGE

Save $199.96
ADJ - American DJSKU: 4ST100

Price:
Sale price$529.99 Regular price$729.95

Description

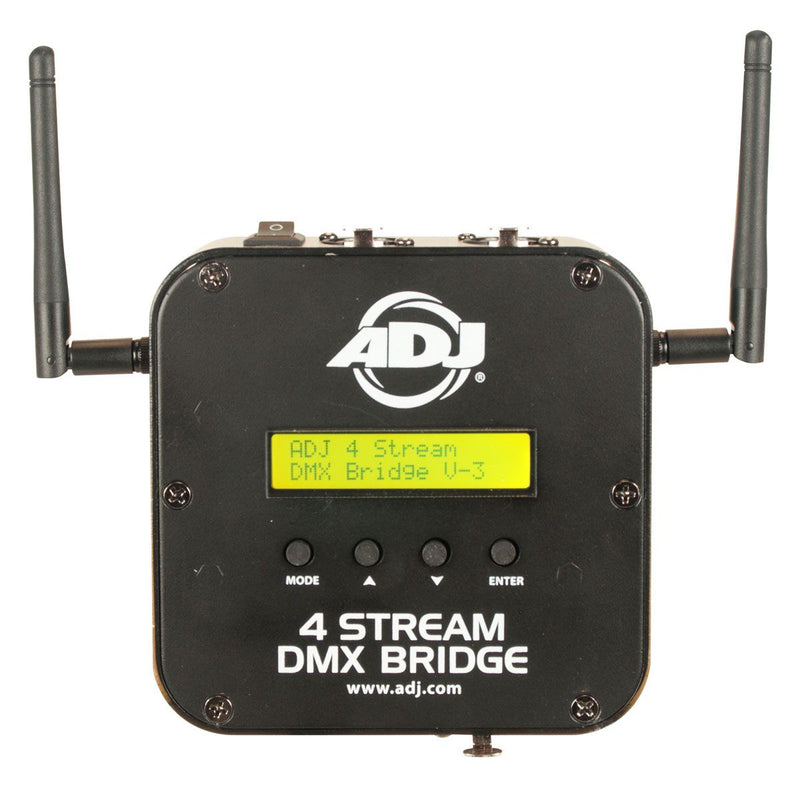

4 STREAM DMX Bridge is a compact 4-universe wireless device which seamlessly bridges WiFi, Art-Net, sACN, and WiFLY (ADJ wireless DMX solution) signals to wirelessly control compatible DMX devices with control from the Airstream DMX Pro App for iPad.

4 STREAM DMX BRIDGE creates a private standalone 2.4 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network, which coexists in busy RF environments alongside other wireless technologies. No existing network infrastructure is required, or it connects to an external network. 4 STREAM DMX BRIDGE sends constant and reliable wireless DMX signals to compatible DMX devices via DMX-512, Art-Net, sACN, or WiFly.

Features include separate WiFi and WiFLY wireless antennas, (3) 5-pin DMX outputs, a mini USB port, a 4-button control panel, an LCD system menu display with an LED network activity signal indicator, on/off switch, an external DC 9-12V power supply, a mini omega bracket for easy clamp/truss mounting, a magnetic back for easy attachment to metal surfaces, and easy configuration from a PC connected via USB Mini B port using the 4 STREAM DMX BRIDGE Setup Windows app or over Wi-Fi using the ADJ 4 STREAM DMX BRIDGE Config iOS APP.

4 STREAM DMX BRIDGE is ideal for small production events, nightclubs, bars or any event or venue which requires hidden data cables, and who are looking for a robust, 4 DMX universe APP based lighting control solution.

Airstream DMX Pro App compatibility:

Compatible with iPad only. Requires iOS 11.0 or later.

*Compatible with 4 Stream DMX Bridge and Airstream DMX Bridge only.



Airstream DMX Pro App compatibility:

Compatible with iPad only. Requires iOS 11.0 or later.

Download the ADJ Airstream DMX Pro App for free from the App

*Compatible with 4 Stream DMX Bridge and Airstream DMX Bridge only.

Download the ADJ 4 Stream Configuration App for free from the App

*Compatible with 4 Stream DMX Bridge and Airstream DMX Bridge only.

• Seamless Wireless Bridge To DMX Compatible Devices

• Supports Standard Network Protocols, Art-Net, sACN and WiFly

• Private Standalone 2.4 GHz DSSS WiFi Network

• No Existing Network Needed or Connect to External Network

• Supports up to 4 DMX Universes (3 wired and 1 WiFLY wireless)

• Control Compatible WiFly Devices up to 2,500 Feet Away

• 14 WiFly Wireless Channels

• Easy Clamp/Truss Mounting

• Magnetic Back for Easy Attachment to Metal Surfaces

• Easy Configuration using iOS App

• Dedicated control APP with 4 DMX universes available in the Apple APP Store

SIZE / WEIGHT:

• Length: 4.92" (125mm) x Width: 6.88" (175mm) x Vertical Height: 2.44" (62mm)

• Weight: 1.06 lbs. (0.48kg)

ELECTRICAL:

• DC 9-12V 1Amp

APPROVALS:

• CE | cETLus

Apple, the Apple logo, iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.Specifications and documentation subject to change without notice.
