Sennheiser SL PASC 4

Save $160.00
SennheiserSKU: SL PASC 4

Price:
Sale price$699.00 Regular price$859.00

Description



SL PASC 4

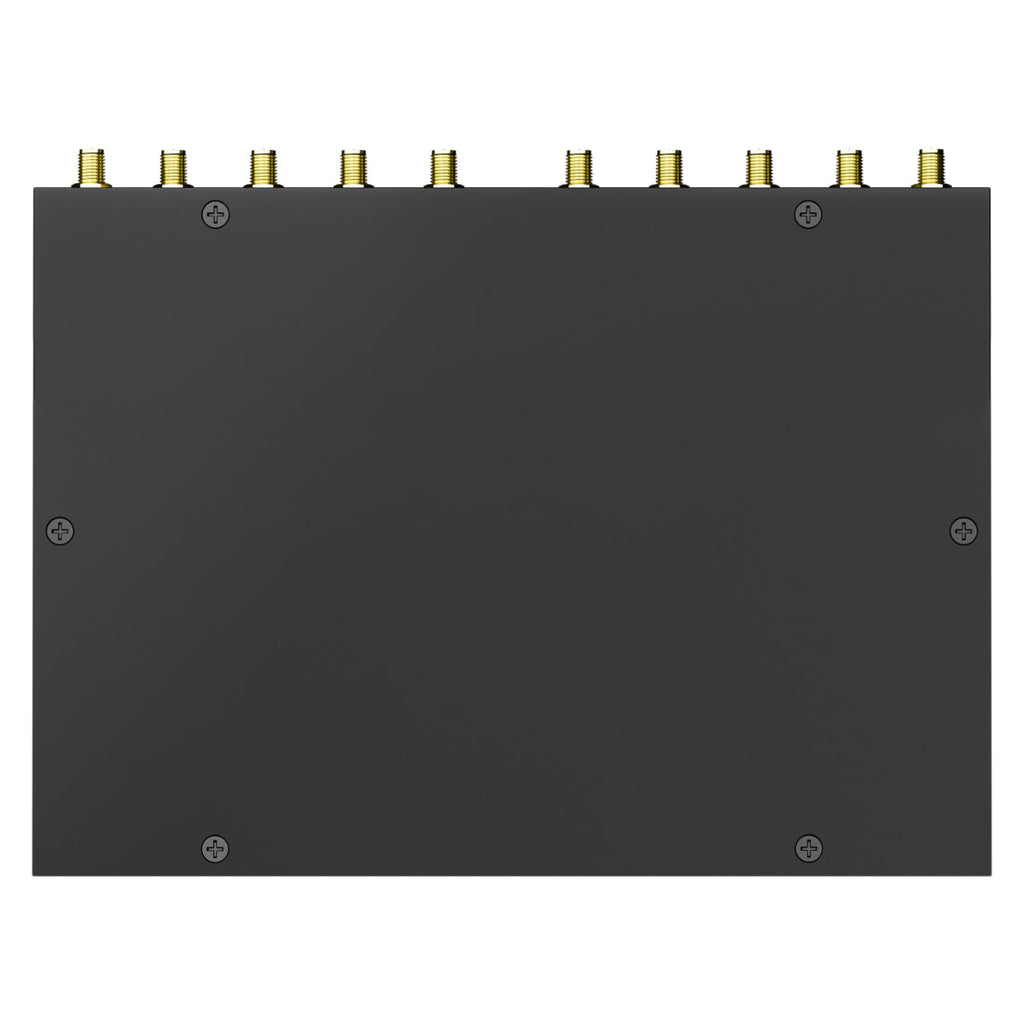

The SL PASC 4 is a passive 4-way True Diversity antenna splitter/combiner for the SpeechLine Digital Wireless mirophone series.
Article No. 390041


The SL PASC 4 is a passive 4-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 4 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 4 using the supplied SMA-R cables.

  • 1880 - 1930 MHz (DECT range)

  • 8 RF outputs for connecting up to 4 SL Rack Receiver DW units

  • 2 RF inputs to connect AWM 2 or AWM 4

  • SMA-RP connectors

  • Passive antenna combiner / splitter


Specifications
Dimensions
210 x 160 x 41 mm

Weight
663g

Attenuation
8 dB typ.

Operating temperature
-40 to 85°C

Color
black

Frequency
1880 - 1930 MHz

Frequency band
DECT

Antenna Connector
10x RP-SMA (AC coupled)

Input power
1.5 W max

Maximum number of connected receivers
4
What's in the Box
SL PASC 4
8x SMA-RP cable (length 50 cm)
Quickguide
Safety guide
