Sennheiser SL PASC 2

Save $100.00
SennheiserSKU: SL PASC 2

Price:
Sale price$479.00 Regular price$579.00

Description



SL PASC 2

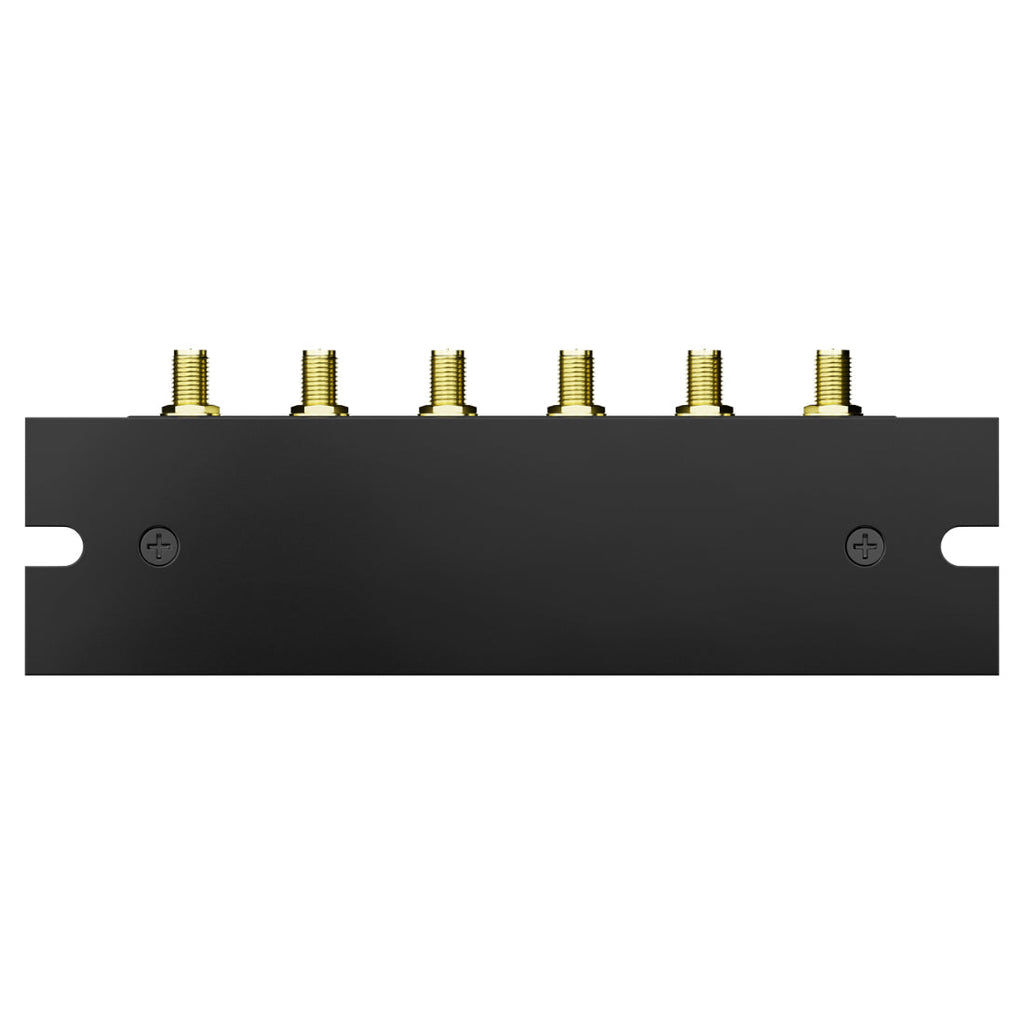

The SL PASC 2 is a passive 2-way Diversity antenna splitter/combiner for the SpeechLine Digital Wireless microphone series.
Article No. 390040


The SL PASC 2 is a passive 2-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 2 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 2 using the supplied SMA-R cables.

  • 1880 - 1930 MHz (DECT range)

  • 4 RF outputs for connecting up to 2 SL Rack Receiver DW units

  • 2 RF inputs to connect AWM 2 or AWM 4

  • RP-SMA connectors

  • Passive antenna combiner / splitter


Specifications
Dimensions
150 x 50 x 21 mm

Weight
135g

Attenuation
4,5 dB typ.

Operating temperature
-40 to 85°C

Color
black

Frequency
1880 - 1930 MHz

Frequency band
DECT

Antenna Connector
6x RP-SMA (AC coupled)

Input power
1.5 W max

Maximum number of connected receivers
2
What's in the Box
SL PASC 2
4x SMA-RP cable (length 50 cm)
Quickguide
Safety guide
