Sennheiser SL MCR 4 DW-4

Save $426.00
SennheiserSKU: SL MCR 4 DW-4

Price:
Sale price$2,699.00 Regular price$3,125.00

Description

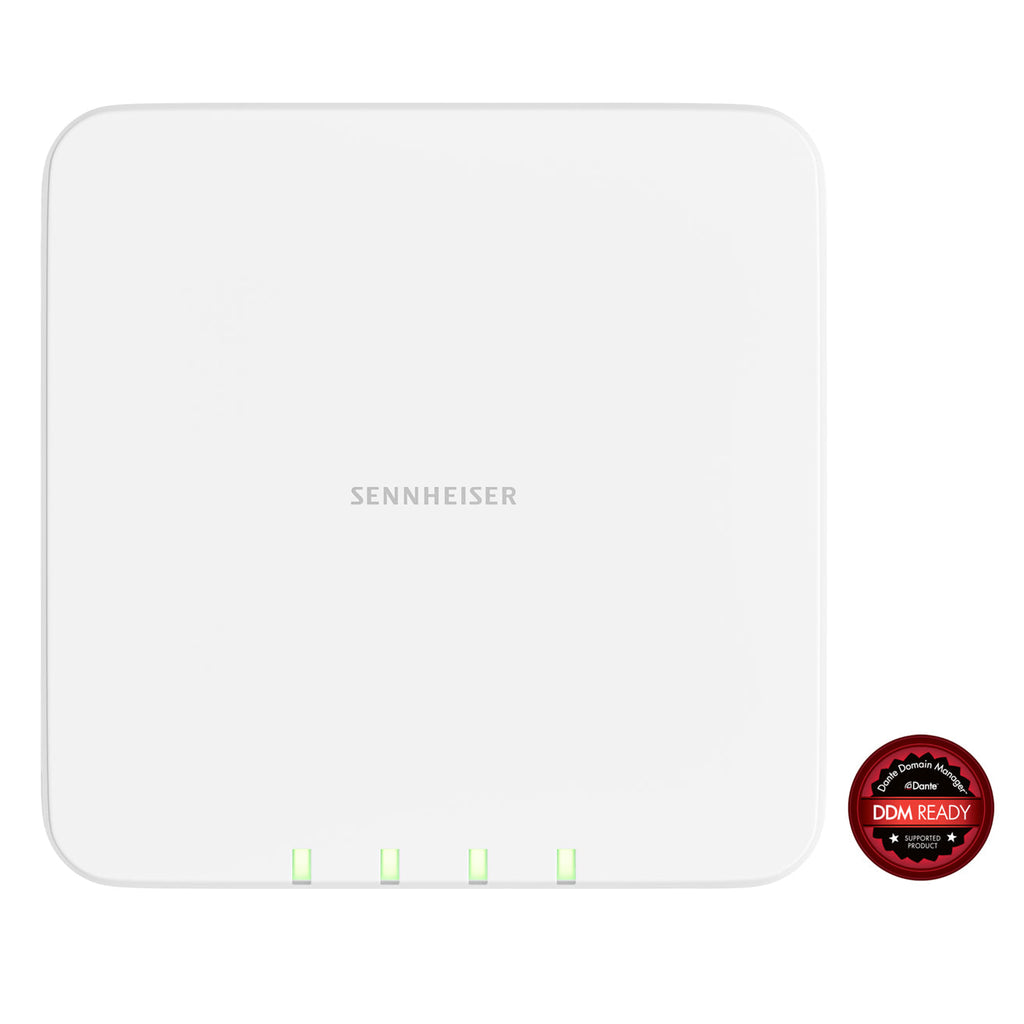

SL MCR 4 DW-4

Two or four channel receiver for SpeechLine Digital Wireless
Article No. 508855


The SpeechLine Multi-Channel Receiver with its 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single network cable, thanks to PoE and Dante. Complex analog audio cabling is a thing of the past. The Multi-Channel Receiver also offers a convenient solution for existing installations. Thanks to an integrated auto mixer and the analog mix output, all audio channels can be used simply as a sum signal. The audio mix is also available digitally via Dante, which allows an extension of the existing setup without exchanging the DSP. Due to the bidirectional communication between receiver and transmitter, all settings of the mobile transmitters can easily be made in the Sennheiser Control Cockpit. The receiver's automatic frequency management eliminates the need for manual frequency settings and the automatic interference management guarantees maximum transmission reliability. The user-friendly pairing function ensures a reliable connection between transmitter and receiver. Network integration also makes it possible to remotely control and monitor the receiver via a media control system (e.g. AMX, Crestron, Q-SYS Control). Due to the integrated antennas, a complex antenna installation is no longer necessary.

  • Automatic Gain Control

  • Automatic Frequency management

  • AES 256 encryption

  • 2-port Dante

  • PoE

  • Analog Mix Output

  • One status LED per Link

  • Remote control via Control Cockpit or media control

  • Wall, ceiling or mic stand mounting

  • Integrated Automixer

  • DDM Ready


Specifications
Dimensions
180 x 180 x 45 mm (incl. wallmount)

Connector
2x RJ-45 Network (Dante and Control)

Weight
650 g (incl. wallmount)
560 g (without wallmount)

Power consumption
< 15 W

Audio output
3- pin Phoenix 3.81.mm

Operating temperature
-10°C to +45°C (14°F to 113°F)

Number of channels
up to 4

Color
white RAL 9016

Frequency
1880 - 1930 MHz

Frequency band
DECT

Frequency range
20 Hz - 20 kHz

Mains voltage
44 – 57 V DC via PoE IEEE 802.3af Class 3

Firmware update
yes

Latency
20 ms

Equalizer
Via Sennheiser Control Cockpit

Automatic gain control (AGC)
yes

Diversity principle
Antenna Diversity

Encryption
AES 256

Dante™
Primary and Secondary
What's in the Box
SL MCR DW
Wall mounting plate
Drilling template
3-pin phoenix connector (3,81mm)
Quick Guide
