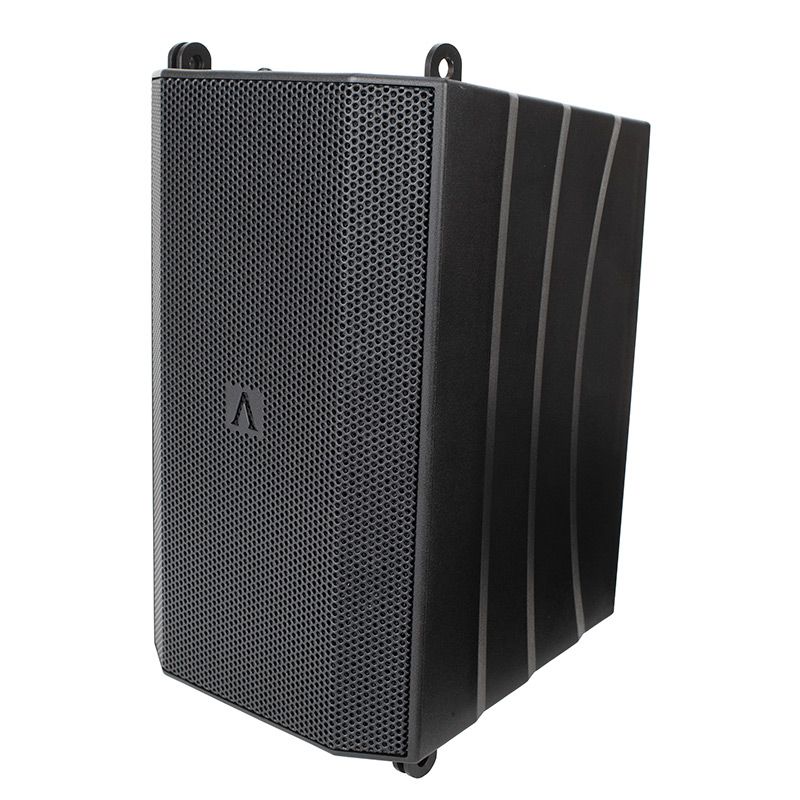

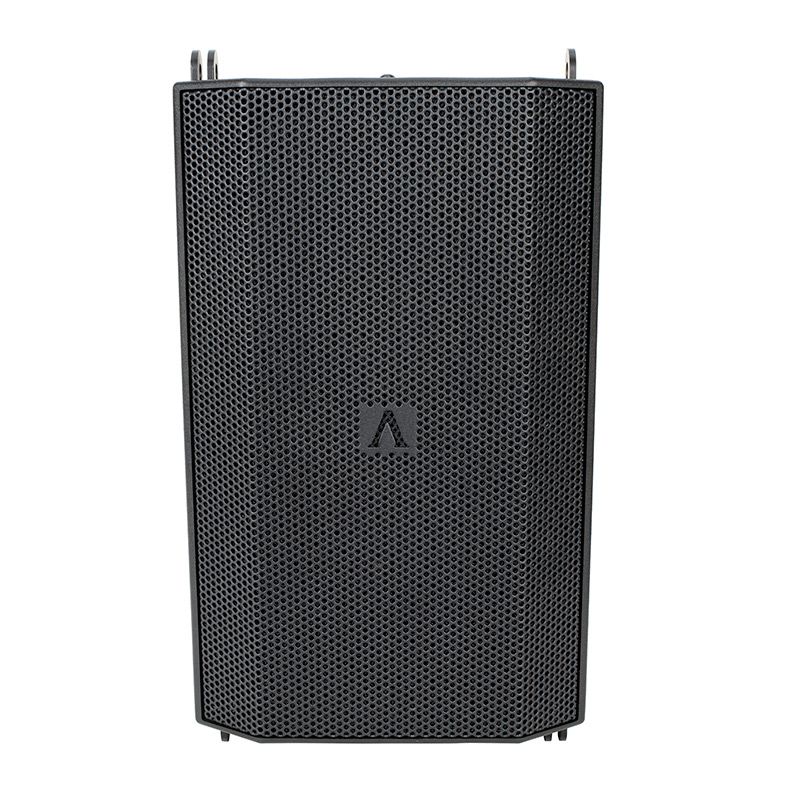

Avante Audio Imperio IMP092

 240W RMS Class D Power Amplifier with dual 4.75" woofers. Part of the Imperio Mini Line Array Series.

Avante Audio’s Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.

Imperio accessories include:

• Imperio Flybar LG (IMP265)
• Imperio Flybar Small (IMP496)
• Imperio Pole (IMP194)
• Linkpin 2 (IMP340)

Specifications:

AMPLIFIER:

8 box flown array with ground subsAMPLIFIER:
240W Class RMS D Amplifier Module
Switching Power Design
LED Power / Signal / Clip Indicator
24-bit DSP Selectable Configurations

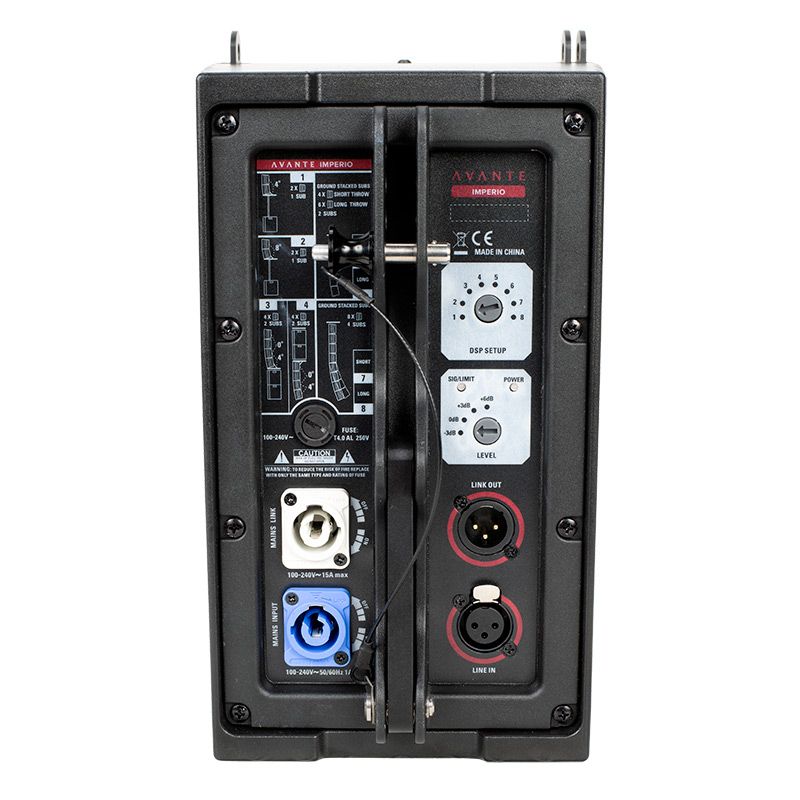

Input: 1x 3pin XLR and Locking Power Connector
Output: 1x 3pin XLR and Locking Power Connector
Volume: Selectable Input Sensitivity Dial
Power Input: 100-240V ~ 50/60Hz

SPEAKER:

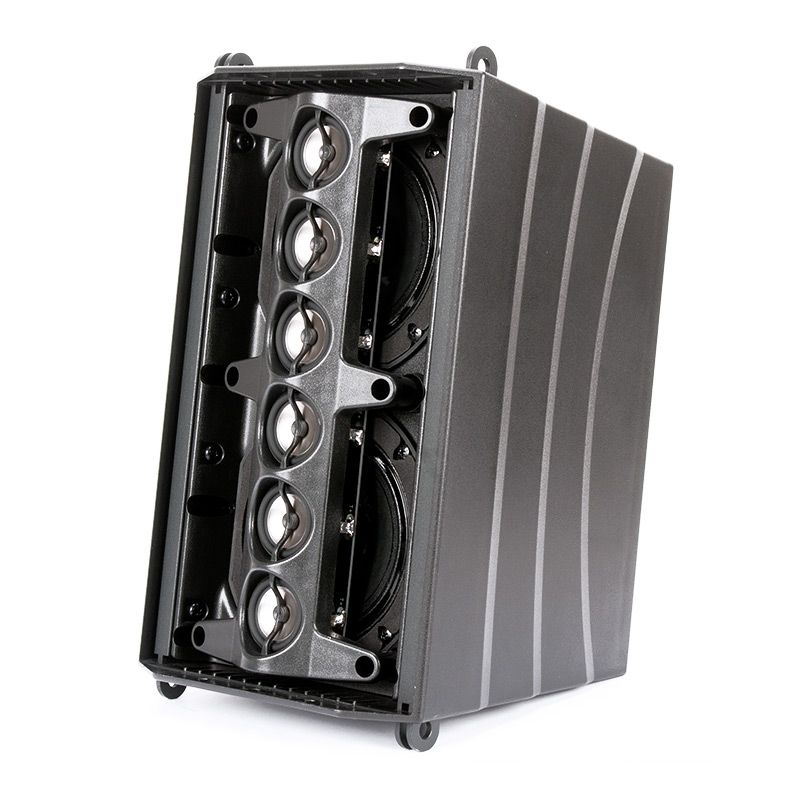

2x 4.75" Neodymium Woofer with 1-inch voice coil
6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)
Type: 2-Way Active Closed Design
Frequency Response: 150Hz – 20KHz
Impedance: 4 Ohm
Max Output SPL: 117dB (single box measured on Axis @1m)
Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
Cabinet: ABS Plastic
Grill: 1.0mm steel
Splay Angles: 0, 4, 8, & 12-degrees
Integrated Rigging: Yes
Dispersion Angle: 90-degree x 15-degree
Dimensions (HxWxD): 12.8"x7.3"x8.8" / 324x184.8x224mm
Weight: 14 lbs. / 6.3 kg.
